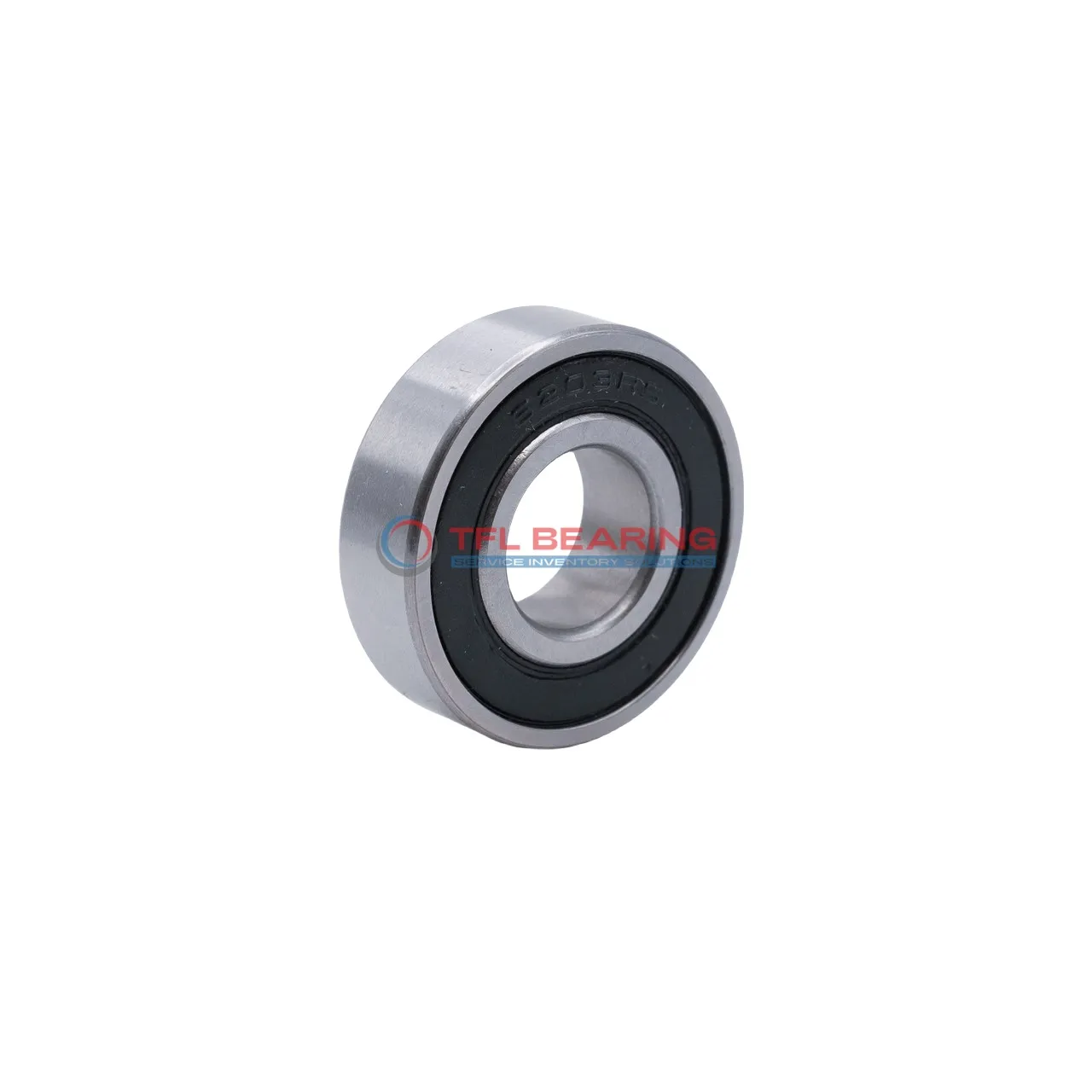

Single Row Deep Groove Ball Bearings 6200-2RSH/LT

The 6200-2RSH/LT is a compact single-row deep groove ball bearing, measuring 10mm by 30mm by 9mm. Made from durable chrome steel, it handles radial loads up to 1147 lbf and spins smoothly at speeds up to 24,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective replacement option. Ideal for small motors, pumps, or appliances where reliable radial load support is needed.

Weighing just 32g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6200-2RSH/LT
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 10 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 30 mm
Outer Dia Tolerance -0.009mm to 0
Width 9 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 1147 lbf
Static Radial Load 54 lbf
Max Speed 24000 rpm
Weight 32 g
price（$） 1.953

Single Row Deep Groove Ball Bearings 6200-2RSH/LT dimension drawing

Download DWG Download PDF

Features

Performance Features of 6200-2RSH/LT Bearing

6200-2RSH/LT Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its sealed design protects against dust and moisture, making it suitable for various environments.

The dynamic radial load capacity of 1147 lbf ensures steady performance in demanding applications.
With a maximum speed of 24,000 rpm, it balances efficiency and durability for high-speed operations.

The ABEC 1 tolerance class guarantees consistent precision, ideal for general industrial use.
Its compact size (10 mm×30 mm×9 mm) allows for easy integration into tight spaces.

Application

Common Applications of 6200-2RSH/LT Bearing
6200-2RSH/LT Bearing is widely used in small electric motors, offering reliable radial load support with its sealed design. The chrome steel construction ensures durability in everyday applications.

In household appliances like washing machines, 6200-2RSH/LT Bearing provides smooth operation with minimal maintenance. Its compact size fits perfectly in tight spaces common in domestic devices.

For light industrial equipment such as conveyor rollers, 6200-2RSH/LT Bearing handles moderate loads efficiently. The sealed design keeps contaminants out, extending service life in dusty environments.

Where Is 6200-2RSH/LT Bearing Used?
You’ll often find 6200-2RSH/LT Bearing in power tools, where its balanced performance supports high-speed rotation. The sealed construction helps prevent grease leakage during intense use.

In automotive accessories like alternators, 6200-2RSH/LT Bearing offers quiet operation and long service life. Its metric sizing makes it compatible with various vehicle models.

Built for Versatility: 6200-2RSH/LT Bearing
6200-2RSH/LT Bearing works well in office equipment such as printers, providing smooth paper feed mechanisms. The chrome steel balls ensure consistent performance over time.

For small pumps and compressors, 6200-2RSH/LT Bearing handles both radial and light axial loads effectively. Its temperature range suits most standard operating conditions.

Light-Duty vs Heavy-Duty: Best Uses for 6200-2RSH/LT Bearing
In light-duty applications like cooling fans, 6200-2RSH/LT Bearing offers energy-efficient rotation. The sealed design protects against dust while maintaining low friction.

For more demanding tasks in food processing equipment, 6200-2RSH/LT Bearing resists corrosion thanks to its steel components. It’s a practical choice where frequent cleaning is required.
