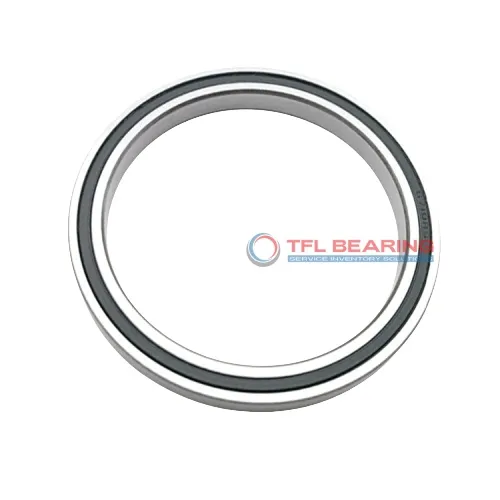

Constant Section (CS) Bearings JB050CP0

Constant Section (CS) Bearings JB050CP0

The JB050CP0 is a sealed radial ball bearing with a 5″ bore and 5.625″ outer diameter, featuring a slim 0.3125″ width. Made from chrome steel with a brass cage, it handles radial loads up to 933 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its sealed design keeps lubrication in and contaminants out, making it low-maintenance. The ABEC-1 tolerance ensures reliable performance for general applications.

This model is interchangeable with KAYDON bearings, offering a practical replacement option. Ideal for use in machinery where space is limited but radial load support is needed.

Weighing just 0.37 lbs, it’s lightweight yet durable. Compliant with RoHS standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JB050CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 5.625"
  • Outer Dia Tolerance -0.0008"– 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.199"
  • Internal Diameter On Outer Ring (Small Side Face) 5.425"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 933 lbf
  • Static Radial Load 2150 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1976 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.37 lbs
  • price（$） 134.96
Constant Section (CS) Bearings JB050CP0 dimension drawing
Download DWG Download PDF

Features

How Does JB050CP0 Bearing Reduce Friction?

JB050CP0 Bearing features a sealed design with chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its brass cage maintains proper ball alignment, reducing wear and enhancing efficiency.
The bearing is lubricated for consistent performance, even under dynamic radial loads up to 933 lbf.
With a temperature range of -30°C to 110°C, it remains reliable in various operating conditions.

Application

Industrial Uses of JB050CP0 Bearing
JB050CP0 Bearing is commonly used in industrial machinery where space is limited but precision is key, such as robotic arms and conveyor systems. Its thin section design makes it ideal for applications requiring compact yet reliable performance.

Where Is JB050CP0 Bearing Used?
You’ll often find JB050CP0 Bearing in automation equipment, where its sealed construction keeps out dust and debris. It’s also a great fit for packaging machines, ensuring smooth operation over long periods.

Built for Heavy-Duty Use: JB050CP0 Bearing
JB050CP0 Bearing handles radial loads effortlessly, making it a go-to for machinery like printing presses and textile equipment. The brass cage adds durability, perfect for high-use environments.

Automotive vs Aerospace: Applications of JB050CP0 Bearing
In automotive systems, JB050CP0 Bearing works well in steering mechanisms due to its precise tolerances. For aerospace, its lightweight design is suited for instrumentation and control systems.

Perfect Fit for Automation: JB050CP0 Bearing
JB050CP0 Bearing shines in automated production lines, where its consistent performance reduces downtime. The chrome steel construction ensures it can handle the demands of continuous operation.
