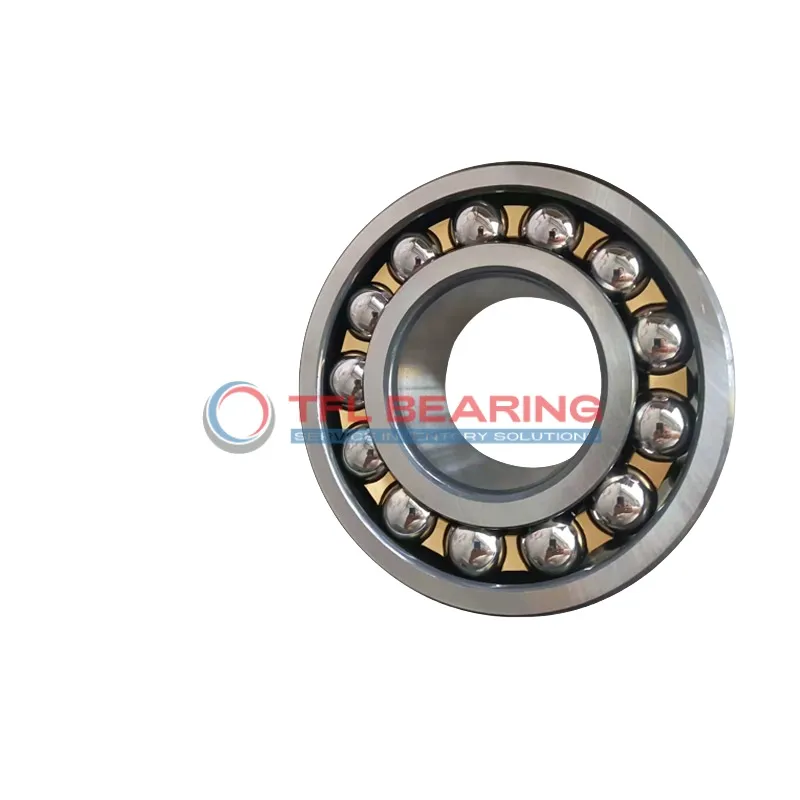

Self Aligning Ball Bearings 1319-KM C/3

Self Aligning Ball Bearings 1319-KM C/3

The 1319-KM C/3 is a self-aligning ball bearing with a 95mm tapered bore and 200mm outer diameter, crafted from durable chrome steel. It manages radial loads up to 29925 lbf and operates smoothly at speeds up to 4300 RPM.

Its double-row design and brass cage provide stability and longevity, while the open seal allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty machinery where misalignment or radial loads are common.

Weighing 6.7kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1319-KM C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 45 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 127.6 mm
  • Internal Diameter On Outer Ring 170.5 mm
  • Chamfer Dimension 3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 29925 lbf
  • Static Radial Load 11475 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 6.7 kg
  • Price（$） 539.44
Self Aligning Ball Bearings 1319-KM C/3 dimension drawing
Download DWG Download PDF

Features

Why Choose 1319-KM C/3 Bearing for Precision Tasks?

1319-KM C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 29,925 lbf makes it suitable for heavy-duty applications.

The brass cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a maximum speed of 4,300 rpm, it balances performance and durability.

1319-KM C/3 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its tapered bore design simplifies installation, saving time and effort.

Application

Common Applications of 1319-KM C/3 Bearing
1319-KM C/3 Bearing is widely used in industrial machinery, especially in applications where misalignment compensation is needed, such as conveyor systems and heavy-duty gearboxes. Its double-row design ensures stability even under significant radial loads.

In the automotive sector, 1319-KM C/3 Bearing is often found in drivetrain components, where its tapered bore provides a secure fit. The brass cage enhances durability, making it suitable for high-vibration environments like truck axles.

For automation systems, 1319-KM C/3 Bearing’s self-aligning feature helps maintain precision in robotic arms and assembly lines. The chrome steel construction ensures long service life, even in continuous operation scenarios.

Medical imaging devices benefit from 1319-KM C/3 Bearing’s smooth performance, thanks to its balanced radial load capacity. The lubricated design reduces friction, making it ideal for sensitive equipment like MRI scanners.

In household appliances, 1319-KM C/3 Bearing can be found in washing machines, where its ability to handle misalignment prolongs the lifespan of rotating drums. The open seal design allows for easy maintenance, a practical feature for home use.
