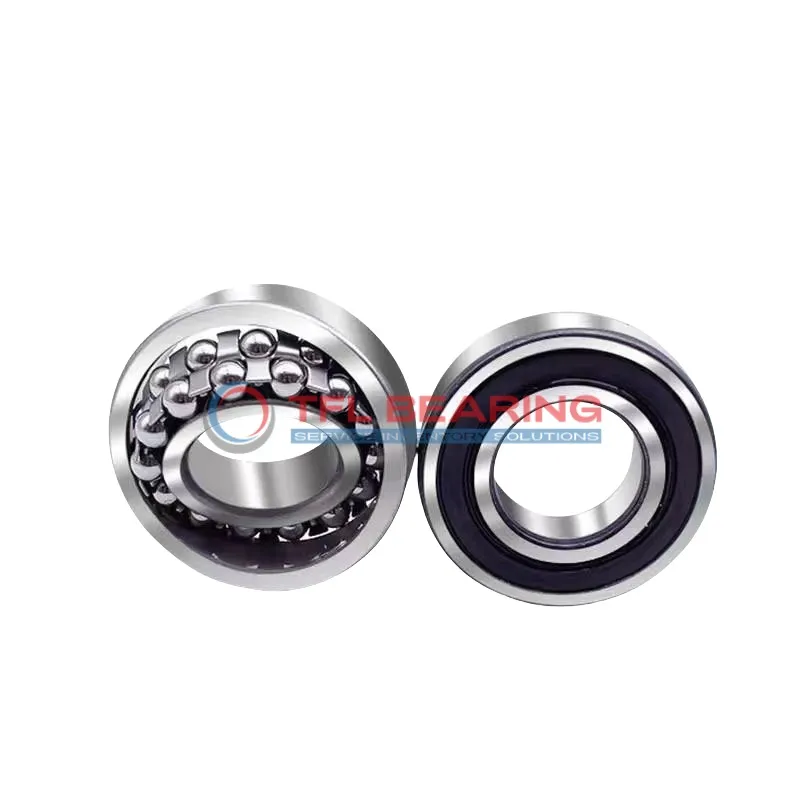

Self Aligning Ball Bearings 1318

Self Aligning Ball Bearings 1318

The 1318 is a self-aligning ball bearing with a 90mm bore and 190mm outer diameter, crafted from sturdy chrome steel for durability. Its double-row design helps manage radial loads up to 26325 lbf, with a maximum speed of 4500 RPM.

The open seal type allows for easy lubrication, while the stainless steel cage ensures reliable performance. It operates smoothly in temperatures ranging from -30°C to 110°C, making it versatile for various conditions.

This bearing is interchangeable with SKF models, offering a practical replacement option. Ideal for heavy-duty applications like conveyor systems or industrial fans where alignment flexibility is needed.

Weighing 5.8kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1318
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 43 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 122.8 mm
  • Internal Diameter On Outer Ring 162.1 mm
  • Chamfer Dimension 3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 26325 lbf
  • Static Radial Load 9900 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4500 rpm
  • Weight 5.8 kg
  • Price（$） 178.13
Self Aligning Ball Bearings 1318 dimension drawing
Download DWG Download PDF

Features

Performance Features of 1318 Bearing

1318 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 26325 lbf, ensuring reliable performance in heavy-duty applications.

The double-row design of 1318 Bearing enhances load distribution, reducing stress on individual components.
With a maximum speed of 4,500 rpm, it balances durability and efficiency for various industrial uses.

1318 Bearing operates smoothly in temperatures ranging from -30° to 110 °C, adapting to different working conditions.
The stainless steel cage maintains ball alignment, minimising wear and extending the bearing’s service life.

Application

Industrial Uses of 1318 Bearing
1318 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its lifespan in demanding environments.

What Makes 1318 Bearing a Preferred Choice?
In automotive applications, 1318 Bearing supports components like wheel hubs and transmissions, thanks to its robust chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle designs, making it a versatile option.

Perfect Fit for Automation: 1318 Bearing
For automated production lines, 1318 Bearing ensures smooth operation in robotic arms and assembly systems. The stainless steel cage reduces wear, maintaining performance even with frequent use.

Medical vs Industrial: Where 1318 Bearing Excels
While 1318 Bearing is reliable in industrial settings, it also finds use in medical imaging equipment where precision is key. Its temperature range and load capacity make it suitable for both fields.
