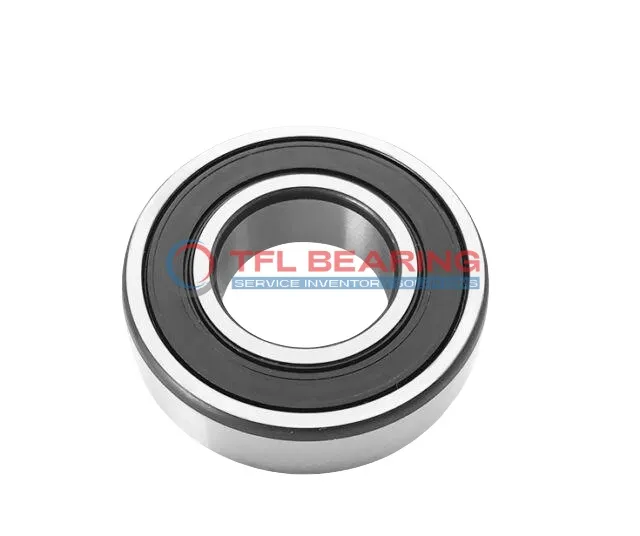

Single Row Deep Groove Ball Bearings 6010-RSJEM

Single Row Deep Groove Ball Bearings 6010-RSJEM

The 6010-RSJEM is a single row deep groove ball bearing with a 50mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4901 lbf and operates smoothly at speeds up to 8400 RPM.

Its sealed design keeps dirt out and lubrication in, reducing maintenance needs. The chrome steel cage adds durability, making it a reliable choice for continuous use.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF bearings, offering flexibility for replacements.

Weighing just 261g, it’s lightweight yet robust. Ideal for applications like electric motors or small machinery where radial loads are common. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6010-RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4901 lbf
  • Static Radial Load 3732 lbf
  • Max Speed 8400 rpm
  • Weight 261 g
  • price（$） 12.798
Single Row Deep Groove Ball Bearings 6010-RSJEM dimension drawing
Download DWG Download PDF

Features

How Does 6010-RSJEM Bearing Reduce Friction?

6010-RSJEM Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures durability and smooth operation under radial loads.
With a dynamic radial load capacity of 4901 lbf, it handles demanding applications efficiently.
The ABEC 1 tolerance class guarantees consistent performance and reliability.

Application

Industrial Uses of 6010-RSJEM Bearing
6010-RSJEM Bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability in continuous operation environments.

What Makes 6010-RSJEM Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, 6010-RSJEM Bearing offers reliable performance with its ABEC 1 tolerance. Its compact size fits well in tight spaces without compromising load capacity.

Perfect Fit for Automation: 6010-RSJEM Bearing
This bearing works smoothly in robotic arms and assembly line equipment, thanks to its low maintenance sealed design. The temperature range of -30° to 120°C makes it suitable for various industrial conditions.

Medical vs Industrial: Where 6010-RSJEM Bearing Excels
While not typically used in medical devices, 6010-RSJEM Bearing shines in industrial settings like packaging machinery. Its static radial load capacity of 3732 lbf handles moderate stresses effectively.

Essential Roles of 6010-RSJEM Bearing
For household appliances like washing machines, 6010-RSJEM Bearing provides quiet operation with its precision ball design. The 80mm outer diameter offers stability in rotating components.
