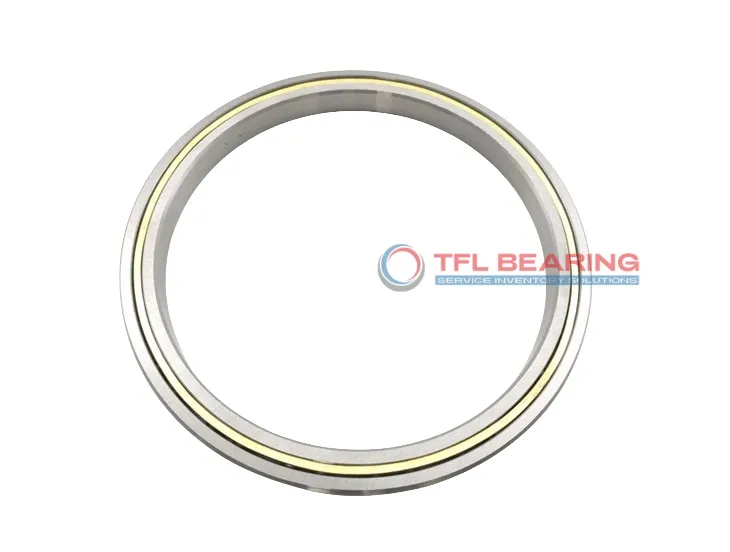

Constant Section (CS) Bearings K36013AR0

Constant Section (CS) Bearings K36013AR0

The K36013AR0 is a slim, angular contact ball bearing measuring 360mm in bore and 386mm in outer diameter, with a compact 13mm width. Made from chrome steel, it handles both radial and thrust loads efficiently.

Its 30° contact angle and brass cage ensure smooth operation under dynamic loads up to 4493 lbf. The open design allows easy lubrication, suitable for temperatures from -30°C to 110°C.

This bearing is interchangeable with KAYDON models, making it a versatile choice for replacements. Ideal for applications requiring precise angular contact, such as robotics or medical equipment.

Weighing 1.07kg, it’s lightweight yet robust, meeting ABEC-1 tolerance standards for reliable performance. Compliant with RoHS for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K36013AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 360 mm
  • Bore Dia Tolerance -0.036mm to 0
  • Outer Dia 386 mm
  • Outer Dia Tolerance -0.036mm to 0
  • Width 13 mm
  • Width Tolerance +.000 –.254mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 13 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 369.7 mm
  • Internal Diameter On Outer Ring (Small Side Face) 376.3 mm
  • Internal Diameter On Outer Ring (Large Side Face) 379.2 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 4493 lbf
  • Static Radial Load 14440 lbf
  • Static Thrust Load 11455 lbf
  • Static Moment 41681 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 5750 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.07 Kg
  • price（$） 614.65
Constant Section (CS) Bearings K36013AR0 dimension drawing
Download DWG Download PDF

Features

Performance Features of K36013AR0 Bearing

K36013AR0 Bearing is designed with a 30° contact angle, optimising its ability to handle angular contact loads.
The chrome steel construction ensures durability and resistance to wear in demanding applications.

Its dynamic radial load capacity of 4493 lbf makes it suitable for various industrial uses.
The brass cage maintains ball alignment, reducing friction and extending the bearing’s lifespan.

K36013AR0 Bearing operates efficiently within a temperature range of -30°C to 110°C.
With an ABEC-1 tolerance class, it offers reliable precision for smooth performance.

Application

Essential Roles of K36013AR0 Bearing
K36013AR0 Bearing is commonly used in industrial machinery, especially where space constraints require thin-section bearings, such as robotic arms and precision turntables. Its angular contact design efficiently handles both radial and axial loads.

In automation systems, K36013AR0 Bearing ensures smooth motion in applications like CNC machines and 3D printers. The brass cage reduces friction, enhancing performance in high-speed operations.

For medical imaging devices, K36013AR0 Bearing’s chrome steel construction offers durability and reliability. Its precise tolerances make it suitable for equipment demanding consistent accuracy.

K36013AR0 Bearing also fits well in aerospace applications, where lightweight and high-load capacity are critical. The 30° contact angle provides stability under varying forces.

In packaging machinery, K36013AR0 Bearing supports rotating components with minimal space requirements. Its open design allows for easy lubrication, extending service life in demanding environments.
