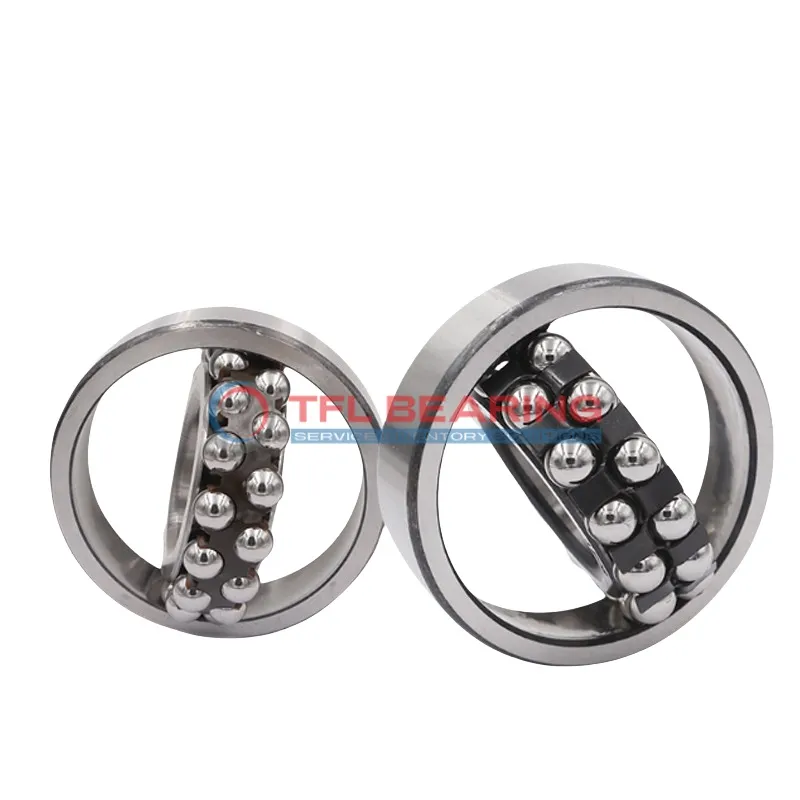

Self Aligning Ball Bearings 1314/C3

Self Aligning Ball Bearings 1314/C3

The 1314/C3 is a self-aligning ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 16672 lbf and operates smoothly at speeds up to 6000 RPM.

Its double-row design allows for slight misalignment, reducing stress on the bearing. The open seal type makes lubrication straightforward, while the stainless steel cage ensures durability.

This bearing works in temperatures from -30°C to 110°C and is interchangeable with SKF models. Ideal for machinery where alignment flexibility is needed, like conveyor systems or agricultural equipment.

Weighing 3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1314/C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 35 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 97.5 mm
  • Internal Diameter On Outer Ring 126.8 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 16672 lbf
  • Static Radial Load 6188 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 3 kg
  • Price（$） 160.84
Self Aligning Ball Bearings 1314/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 1314/C3 Bearing

1314/C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 16672 lbf, ensuring reliable performance in heavy-duty applications.
The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 6,000 rpm, it delivers consistent operation in various conditions.

Application

Industrial Uses of 1314/C3 Bearing
1314/C3 Bearing is commonly used in industrial machinery like conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design provides added stability, making it suitable for heavy loads.

In automotive applications, 1314/C3 Bearing works well in gearboxes and wheel hubs, handling radial loads efficiently. Its chrome steel construction ensures durability even under constant stress.

For automation equipment, 1314/C3 Bearing supports robotic arms and assembly lines, offering smooth rotation. The open seal design allows for easy lubrication, extending its service life.

In household appliances like washing machines, 1314/C3 Bearing reduces vibration and noise. The C3 radial clearance ensures reliable performance under varying temperatures.
