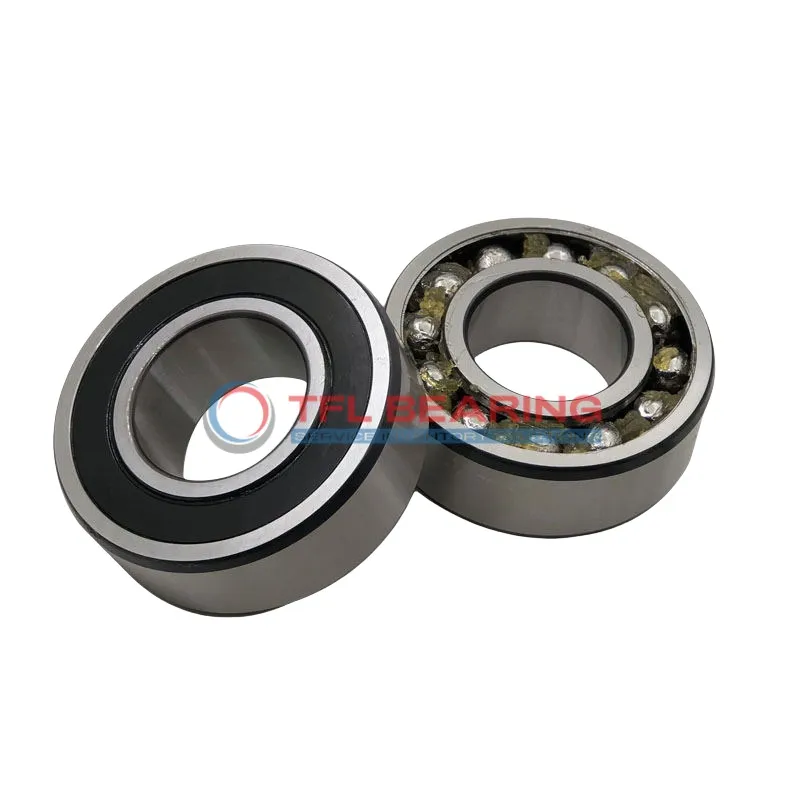

Self Aligning Ball Bearings 2309 E-2RS1TN9/W64

Self Aligning Ball Bearings 2309 E-2RS1TN9/W64

The 2309 E-2RS1TN9/W64 is a self-aligning ball bearing with a 45mm bore and 100mm outer diameter, designed for radial loads. Its compact size (36mm wide) and chrome steel construction make it durable for various applications.

This double-row bearing handles radial loads up to 8775 lbf and operates smoothly at speeds up to 4300 RPM. The sealed design keeps lubrication in and contaminants out, reducing maintenance needs.

Its nylon cage and pre-lubrication ensure quiet operation and long service life. The bearing works well in temperatures from -30°C to 110°C.

Ideal for machinery with slight misalignments, such as conveyor systems or agricultural equipment. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF models. Weighing 1.3kg, it balances strength and practicality.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2309 E-2RS1TN9/W64
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 36 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 60.9 mm
  • Internal Diameter On Outer Ring 90 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 8775 lbf
  • Static Radial Load 3015 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 1.3 kg
  • Price（$） 218.76
Self Aligning Ball Bearings 2309 E-2RS1TN9/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose 2309 E-2RS1TN9/W64 Bearing for Precision Tasks?

2309 E-2RS1TN9/W64 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 8775 lbf makes it suitable for demanding applications.
The sealed construction and nylon cage provide protection against contaminants while reducing noise.
With a maximum speed of 4,300 rpm, it offers reliable performance in various conditions.

Application

Common Applications of 2309 E-2RS1TN9/W64 Bearing
2309 E-2RS1TN9/W64 Bearing is widely used in industrial machinery, especially in conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending the bearing’s lifespan in dusty environments.

What Makes 2309 E-2RS1TN9/W64 Bearing a Preferred Choice?
In automotive applications, 2309 E-2RS1TN9/W64 Bearing is often found in wheel hubs and transmissions, thanks to its ability to handle radial loads efficiently. The nylon cage reduces friction, ensuring smoother operation at moderate speeds.

Built for Heavy-Duty Use: 2309 E-2RS1TN9/W64 Bearing
For agricultural equipment, 2309 E-2RS1TN9/W64 Bearing provides reliable performance in tractors and harvesters, where rough conditions demand durability. Its chrome steel construction offers excellent resistance to wear and tear.

Medical vs Industrial: Where 2309 E-2RS1TN9/W64 Bearing Excels
In medical devices like diagnostic machines, 2309 E-2RS1TN9/W64 Bearing ensures quiet and precise movement. The lubricated design minimizes maintenance, making it ideal for equipment that requires consistent performance over time.

Perfect Fit for Automation: 2309 E-2RS1TN9/W64 Bearing
2309 E-2RS1TN9/W64 Bearing is a great choice for robotic arms and automated assembly lines, where its double-row design provides stability. The metric sizing ensures compatibility with a variety of machinery components.
