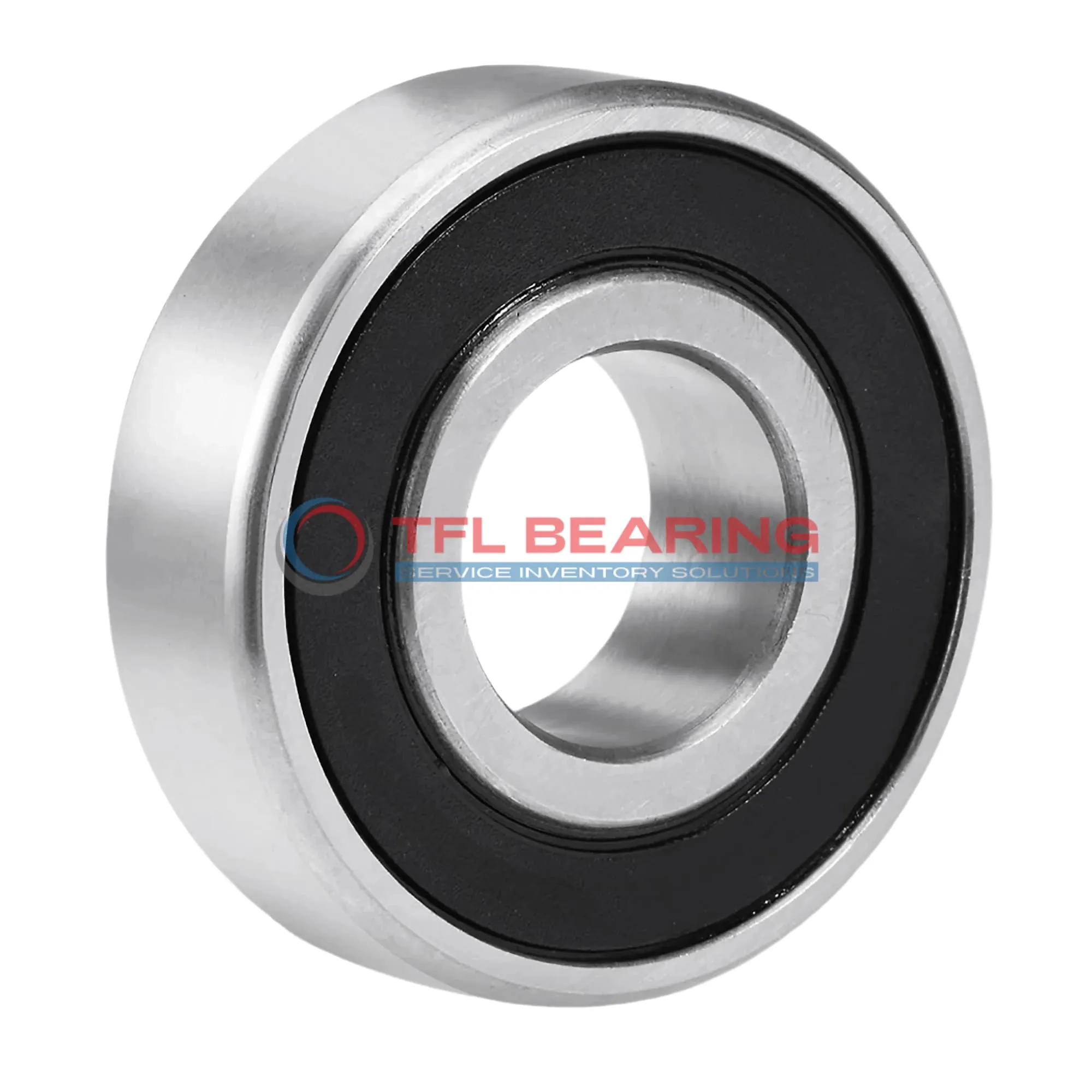

Single Row Deep Groove Ball Bearings 61916-2RS1

Single Row Deep Groove Ball Bearings 61916-2RS1

The 61916-2RS1 is a sealed single-row deep groove ball bearing with an 80mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5643 lbf and operates smoothly at speeds up to 3400 RPM.

Its sealed design keeps grease in and contaminants out, extending service life, while the stainless steel cage adds durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or pumps where radial loads and moderate speeds are common.

Weighing 0.4kg, it balances strength with manageable size. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61916-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 5643 lbf
  • Static Radial Load 4586 lbf
  • Max Speed 3400 rpm
  • Weight 0.4 kg
  • price（$） 95.859
Single Row Deep Groove Ball Bearings 61916-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does 61916-2RS1 Bearing Reduce Friction?

61916-2RS1 Bearing features a deep groove design, optimised for smooth radial load distribution.
The sealed construction keeps contaminants out, ensuring consistent performance over time.

Chrome steel rings and balls in 61916-2RS1 Bearing provide excellent wear resistance.
Its grease lubrication system further reduces friction, extending operational life.

61916-2RS1 Bearing operates efficiently within a temperature range of -30° to 120°C.
With a maximum speed of 3,400 rpm, it balances durability and performance in various applications.

Application

Industrial Uses of 61916-2RS1 Bearing
61916-2RS1 Bearing is commonly used in industrial machinery, such as pumps and electric motors, where its sealed design protects against dust and contaminants. The chrome steel construction ensures long-lasting performance even in demanding environments.

In automotive applications, 61916-2RS1 Bearing fits well in components like alternators and water pumps, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For automation systems, 61916-2RS1 Bearing works efficiently in robotic arms and conveyor belts, thanks to its smooth operation and grease lubrication. The stainless steel cage adds durability, making it suitable for continuous use.

In household appliances like washing machines, 61916-2RS1 Bearing offers quiet and reliable performance. The sealed design helps maintain functionality even in humid conditions.
