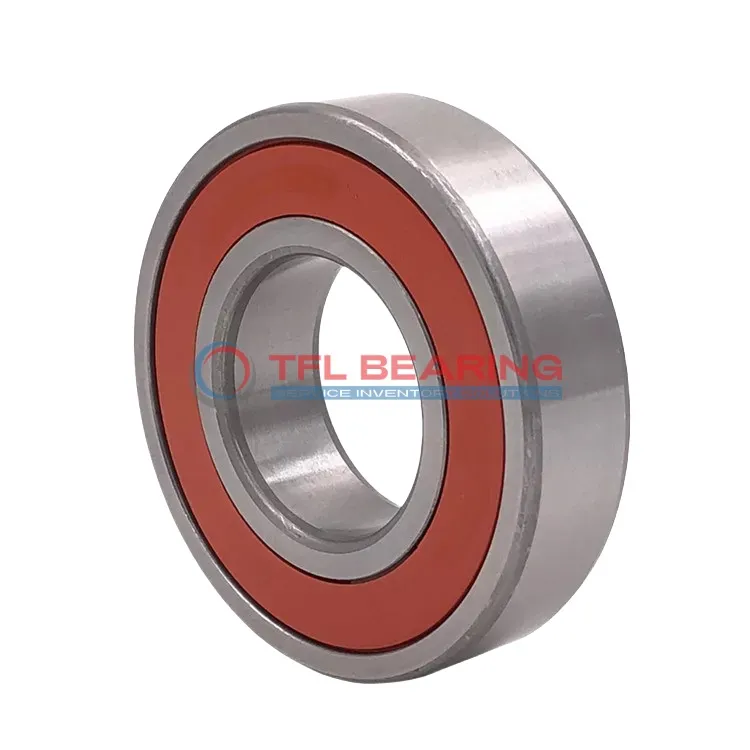

Single Row Deep Groove Ball Bearings 6213-2RS1/C3W64

Single Row Deep Groove Ball Bearings 6213-2RS1/C3W64

The 6213-2RS1/C3W64 is a single-row deep groove ball bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 12859 lbf and runs smoothly at speeds up to 5300 RPM.

Its sealed design keeps out dirt and moisture, while the solid oil lubrication ensures long-lasting performance with minimal maintenance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for applications like electric motors or pumps where radial loads are common.

Weighing 979g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6213-2RS1/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 12859 lbf
  • Static Radial Load 9015 lbf
  • Max Speed 5300 rpm
  • Weight 979 g
  • price（$） 31.671
Single Row Deep Groove Ball Bearings 6213-2RS1/C3W64 dimension drawing
Download DWG Download PDF

Features

How Does 6213-2RS1/C3W64 Bearing Reduce Friction?

6213-2RS1/C3W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
The chrome steel construction enhances durability, making it suitable for radial loads up to 12859 lbf.
Its C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.
With a maximum speed of 5,300 rpm, it offers reliable efficiency for industrial applications.

Application

Practical Applications of 6213-2RS1/C3W64 Bearing
The 6213-2RS1/C3W64 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design keeps contaminants out. Its solid oil lubrication ensures long service life even in dusty environments.

In automotive applications, 6213-2RS1/C3W64 Bearing fits well in wheel hubs and alternators, providing reliable radial load support. The C3 clearance allows for thermal expansion, making it suitable for varying temperatures.

For home appliances, 6213-2RS1/C3W64 Bearing works efficiently in washing machines and fans, where quiet operation is key. The chrome steel construction offers durability without needing frequent maintenance.

In automation systems, 6213-2RS1/C3W64 Bearing supports conveyor belts and robotic arms, ensuring smooth movement. Its metric sizing makes it easy to integrate into European and Asian equipment designs.
