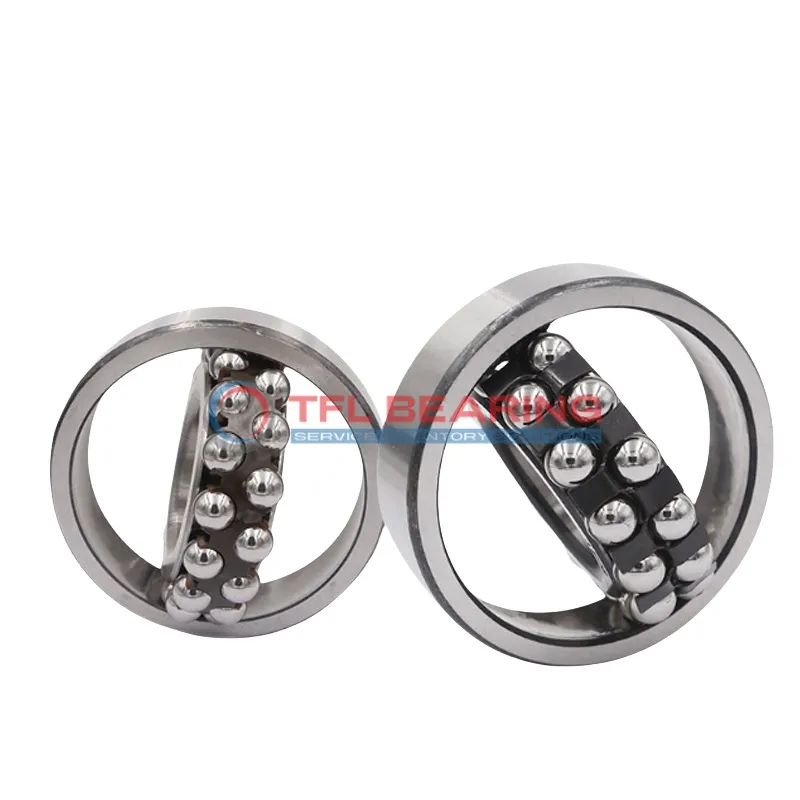

Self Aligning Ball Bearings 1312KJ

Brand: TFL Bearing Interchangeable: SKF 1312KJ 60 mm × 130 mm × 31 mm Metric Open
Part number: 1312KJ
Self Aligning Ball Bearings 1312KJ
In Stock
US$118.07 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia60 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia130 mm
Outer Dia Tolerance-0.018mm to 0
Width31 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring91.61 mm
Internal Diameter On Outer Ring116.7 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load13,162 lbf
Static Radial Load4,950 lbf
Temperature Range-30° to 110 °C
Max Speed6,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight1.9 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1312KJ is a self-aligning ball bearing with a 60mm tapered bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 13162 lbf and runs smoothly at speeds up to 6300 RPM.

Its double-row design helps it handle misalignment, while the open seal allows for easy lubrication. The steel cage ensures durability, making it a reliable choice for heavy-duty use.

This bearing is compatible with SKF models, perfect for replacements in industrial settings. It works well in temperatures from -30°C to 110°C, suitable for machinery like conveyors or fans.

Weighing 1.9kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various applications.

Features

How Does 1312KJ Bearing Handle Radial Loads?

1312KJ Bearing features a double-row design with chrome steel rings and balls, optimised for radial load handling.
Its dynamic radial load capacity reaches 13162 lbf, ensuring stable performance in various applications.

The tapered bore design of 1312KJ Bearing allows for secure fitting, reducing misalignment risks.
Steel cage construction maintains ball alignment, enhancing durability and smooth operation.

With a maximum speed of 6,300 rpm, 1312KJ Bearing balances efficiency and reliability.
It operates effectively within a temperature range of -30° to 110°C, suitable for diverse environments.

1312KJ Bearing’s open design simplifies lubrication, promoting longer service life.
Its standard radial clearance (CN) ensures consistent performance under varying load conditions.

Application

Industrial Uses of 1312KJ Bearing
1312KJ Bearing is commonly used in heavy machinery like conveyors and mixers, where its self-aligning feature compensates for minor misalignments. The double-row design provides excellent radial load capacity, making it reliable for continuous operation.

What Makes 1312KJ Bearing a Preferred Choice?
In automotive applications, 1312KJ Bearing fits well in wheel hubs and transmissions due to its tapered bore for secure mounting. The chrome steel construction ensures durability even under frequent stress and varying temperatures.

Built for Heavy-Duty Use: 1312KJ Bearing
For industrial fans and blowers, 1312KJ Bearing offers smooth performance with its open design, allowing easy lubrication. Its high dynamic radial load rating makes it suitable for equipment requiring long service intervals.

Automotive vs Industrial: Applications of 1312KJ Bearing
In vehicles, 1312KJ Bearing handles radial loads in drivetrains, while in factories, it supports rotating shafts in pumps and gearboxes. The metric sizing ensures compatibility with a wide range of machinery across different sectors.
