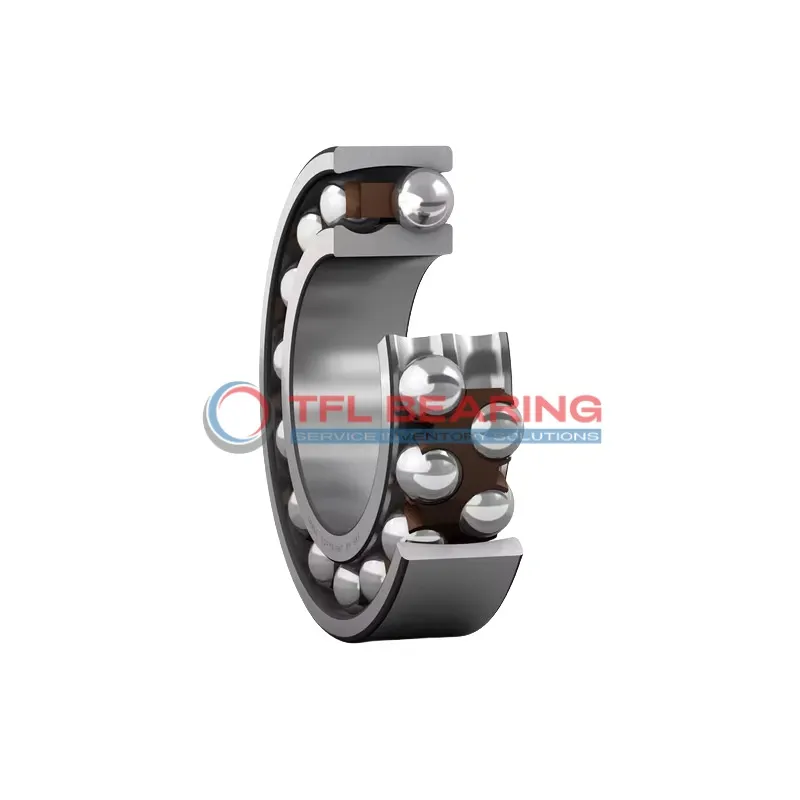

Self Aligning Ball Bearings 1311KTN

Brand: TFL Bearing Interchangeable: SKF 1311KTN 55 mm × 120 mm × 29 mm Metric Open
Part number: 1311KTN
Self Aligning Ball Bearings 1311KTN
In Stock
US$90.20 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia55 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia120 mm
Outer Dia Tolerance-0.015mm to 0
Width29 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring77.9 mm
Internal Diameter On Outer Ring101.4 mm
Chamfer Dimension2 mm
Performance
Dynamic Radial Load11,408 lbf
Static Radial Load4,050 lbf
Temperature Range-30° to 110 °C
Max Speed7,500 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight1.6 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1311KTN is a self-aligning ball bearing with a 55mm tapered bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 11408 lbf and operates smoothly at speeds reaching 7500 RPM.

Its double-row design and open seal allow for easy lubrication and alignment adjustments, while the nylon cage reduces friction. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 1.6kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Features

How Does 1311KTN Bearing Reduce Friction?

1311KTN Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
The nylon cage minimises friction and wear, contributing to quieter operation and longer service life.

With a dynamic radial load capacity of 11408 lbf, it handles heavy loads efficiently while maintaining performance.
Its self-aligning capability compensates for minor misalignments, reducing stress on the bearing.

The open seal design allows for easy lubrication, keeping the bearing running smoothly in various conditions.
Operating at speeds up to 7,500 rpm, it balances durability and efficiency in demanding applications.

Application

Industrial Uses of 1311KTN Bearing
1311KTN Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stability even under heavy radial loads.

In automotive applications, 1311KTN Bearing fits well in gearboxes and wheel hubs, thanks to its tapered bore for secure mounting. The chrome steel construction provides durability in high-stress environments.

For automation equipment, 1311KTN Bearing’s nylon cage reduces friction, making it suitable for robotic arms. Its open design allows for easy lubrication, extending service life in continuous operations.

Where Is 1311KTN Bearing Used?
You’ll often find 1311KTN Bearing in industrial fans, where its self-aligning capability handles shaft deflections. The metric sizing ensures compatibility with a variety of European machinery.

In household appliances like washing machines, 1311KTN Bearing offers quiet operation due to its nylon cage. The radial load capacity makes it reliable for everyday use.

Built for Heavy-Duty Use: 1311KTN Bearing
1311KTN Bearing excels in mining equipment, where its robust design withstands harsh conditions. The chrome steel rings and balls ensure long-lasting performance.

For agricultural machinery, 1311KTN Bearing’s self-aligning feature is ideal for uneven loads. The lubricated design reduces maintenance needs in dusty environments.

Automotive vs Aerospace: Applications of 1311KTN Bearing
In automotive systems, 1311KTN Bearing is used in transmissions for smooth power transfer. Its tapered bore ensures a tight fit under varying speeds.

For aerospace applications, 1311KTN Bearing’s lightweight design and reliability make it suitable for auxiliary systems. The temperature range allows performance in diverse conditions.
