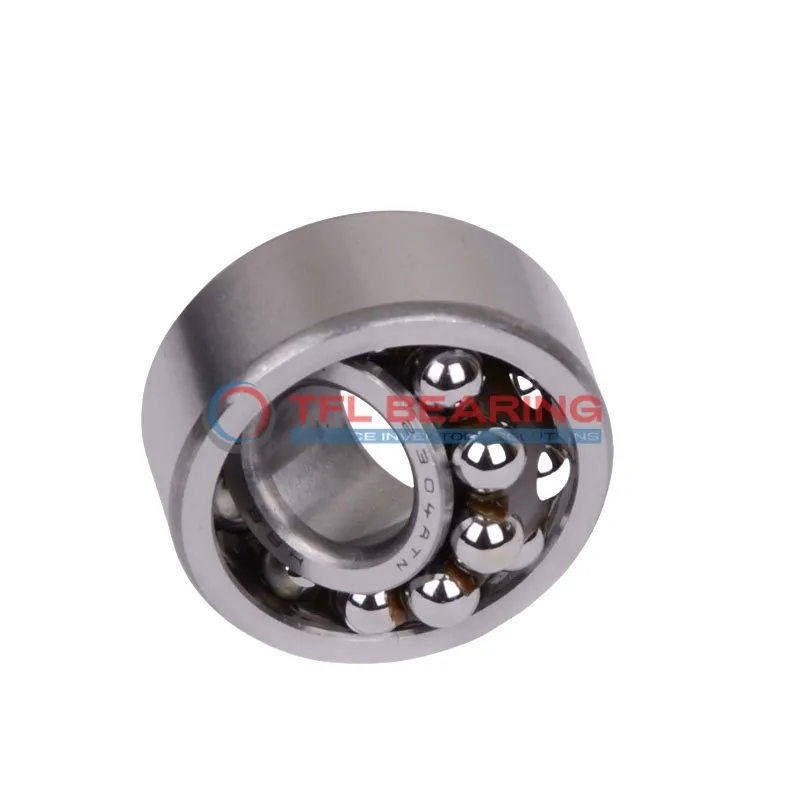

Self Aligning Ball Bearings 1310 EKTN9/C3

The 1310 EKTN9/C3 is a self-aligning ball bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. Its double-row design helps manage radial loads up to 9810 lbf, while the open seal allows for easy lubrication.

With a maximum speed of 8000 RPM, it operates smoothly in temperatures ranging from -30°C to 110°C. The nylon cage reduces friction, ensuring quiet and efficient performance.

This bearing features a C3 radial clearance, making it suitable for applications where slight misalignment might occur. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for industrial machinery or conveyor systems, it balances durability and flexibility. Weighing 1.2kg, it’s robust yet manageable for its size, complying with RoHS and REACH standards.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 1310 EKTN9/C3
Brand TFL & OEM
Interchangeable SKF
Bore Dia 50 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 110 mm
Outer Dia Tolerance -0.015mm to 0
Width 27 mm
Width Tolerance -0.12mm to 0
External Diameter On Inner Ring 70.3 mm
Internal Diameter On Outer Ring 92.6 mm
Chamfer Dimension 2 mm
System of Measurement Metric
Bearing Type Ball
Bore Type Taper 1:12
For Load Direction Radial
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Nylon
Dynamic Radial Load 9810 lbf
Static Radial Load 3150 lbf
Lubrication Lubricated
Temperature Range -30° to 110 °C
Radial Clearance C3
RoHS Compliant
REACH Compliant
Max Speed 8000 rpm
Weight 1.2 kg
Price（$） 69.53

Self Aligning Ball Bearings 1310 EKTN9/C3 dimension drawing

Download DWG Download PDF

Features

Why Choose 1310 EKTN9/C3 Bearing for Precision Tasks?

1310 EKTN9/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 9810 lbf, making it suitable for demanding applications.

The nylon cage keeps the balls aligned, reducing friction and noise during operation.
With a maximum speed of 8,000 rpm, it offers both durability and efficiency.

1310 EKTN9/C3 Bearing operates smoothly in temperatures from -30° to 110°C, adapting to various environments.
Its C3 radial clearance ensures reliable performance under different load conditions.

The tapered bore design simplifies installation, saving time and effort.
Lubrication is already included, reducing initial setup and maintenance needs.

Application

Industrial Uses of 1310 EKTN9/C3 Bearing
1310 EKT9/C3 Bearing is commonly used in industrial machinery like conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments.
The double-row design ensures reliable radial load handling, making it suitable for heavy-duty applications.

Where Is 1310 EKTN9/C3 Bearing Used?
In automotive applications, 1310 EKTN9/C3 Bearing supports components such as gearboxes and drivetrains, providing smooth operation under radial loads.
Its tapered bore design allows for secure mounting, reducing slippage in high-vibration environments.

Built for Heavy-Duty Use: 1310 EKTN9/C3 Bearing
1310 EKTN9/C3 Bearing excels in construction equipment, where its chrome steel construction withstands harsh conditions.
The nylon cage reduces friction, enhancing performance in high-speed scenarios.

Automotive vs Aerospace: Applications of 1310 EKTN9/C3 Bearing
In automotive systems, 1310 EKTN9/C3 Bearing ensures durability in wheel hubs and transmissions.
For aerospace, its precision and reliability make it suitable for auxiliary equipment, though it’s not typically used in primary flight systems.

Perfect Fit for Automation: 1310 EKTN9/C3 Bearing
1310 EKTN9/C3 Bearing is ideal for robotic arms and automated assembly lines, where its self-aligning capability reduces wear.
The C3 radial clearance allows for thermal expansion, ensuring consistent performance in varying temperatures.
