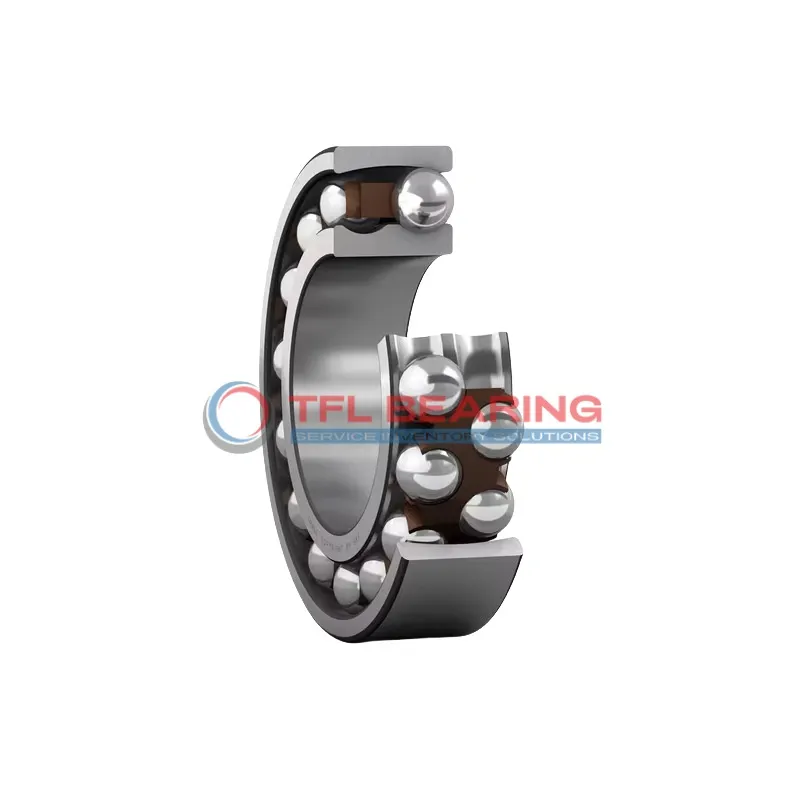

Self Aligning Ball Bearings 1311-TVH-C3

Self Aligning Ball Bearings 1311-TVH-C3

The 1311-TVH-C3 is a self-aligning ball bearing with a 55mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 11408 lbf and operates smoothly at speeds up to 7500 RPM.
Its double-row design and open seal allow for easy lubrication and maintenance, while the nylon cage reduces friction. The bearing works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like conveyor systems or agricultural machinery where misalignment might occur.
Weighing 1.6kg, it offers a balance of strength and durability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1311-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 55 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 29 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 77.9 mm
  • Internal Diameter On Outer Ring 101.4 mm
  • Chamfer Dimension 2 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 11408 lbf
  • Static Radial Load 4050 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 1.6 kg
  • Price（$） 87.57
Self Aligning Ball Bearings 1311-TVH-C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 1311-TVH-C3 Bearing for Precision Tasks?

1311-TVH-C3 Bearing features a double-row design, providing excellent radial load capacity up to 11408 lbf.
Its chrome steel rings and balls ensure durability and smooth operation in various applications.

The nylon cage in 1311-TVH-C3 Bearing reduces friction and noise, making it suitable for precision tasks.
With a maximum speed of 7,500 rpm, it balances performance and efficiency.

1311-TVH-C3 Bearing operates in temperatures from -30° to 110°C, adapting to different working conditions.
Its C3 radial clearance allows for thermal expansion, ensuring reliable performance.

The open seal design of 1311-TVH-C3 Bearing simplifies maintenance and reduces operational costs.
Its cylindrical bore ensures easy installation, saving time and effort.

Application

Industrial Uses of 1311-TVH-C3 Bearing
1311-TVH-C3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design provides stability, making it suitable for heavy loads in industrial settings.

In automotive applications, 1311-TVH-C3 Bearing can be found in wheel hubs and transmissions, offering reliable performance under radial loads. Its metric sizing ensures compatibility with a variety of vehicle models.

For automation equipment, 1311-TVH-C3 Bearing supports robotic arms and assembly lines, where smooth operation is essential. The nylon cage reduces friction, enhancing efficiency in high-speed scenarios.

Where Is 1311-TVH-C3 Bearing Used?
1311-TVH-C3 Bearing works well in fans and blowers, handling radial loads with ease. The open seal design allows for easy lubrication, extending the bearing’s service life.

In printing machinery, 1311-TVH-C3 Bearing ensures precise movement of rollers, contributing to consistent print quality. The chrome steel construction provides durability in high-use environments.

Built for Heavy-Duty Use: 1311-TVH-C3 Bearing
1311-TVH-C3 Bearing is ideal for agricultural machinery, where it withstands harsh conditions and heavy loads. The self-aligning capability helps maintain performance even with slight shaft misalignments.

In construction equipment, 1311-TVH-C3 Bearing supports components like pulleys and gears, ensuring reliable operation. The C3 radial clearance allows for thermal expansion in demanding applications.

Light-Duty vs Heavy-Duty: Best Uses for 1311-TVH-C3 Bearing
For light-duty applications, 1311-TVH-C3 Bearing is suitable for small electric motors and household appliances. Its compact size and reliable performance make it a practical choice.

In heavy-duty scenarios, 1311-TVH-C3 Bearing excels in mining equipment and industrial pumps. The chrome steel rings and nylon cage provide a balance of strength and smooth operation.
