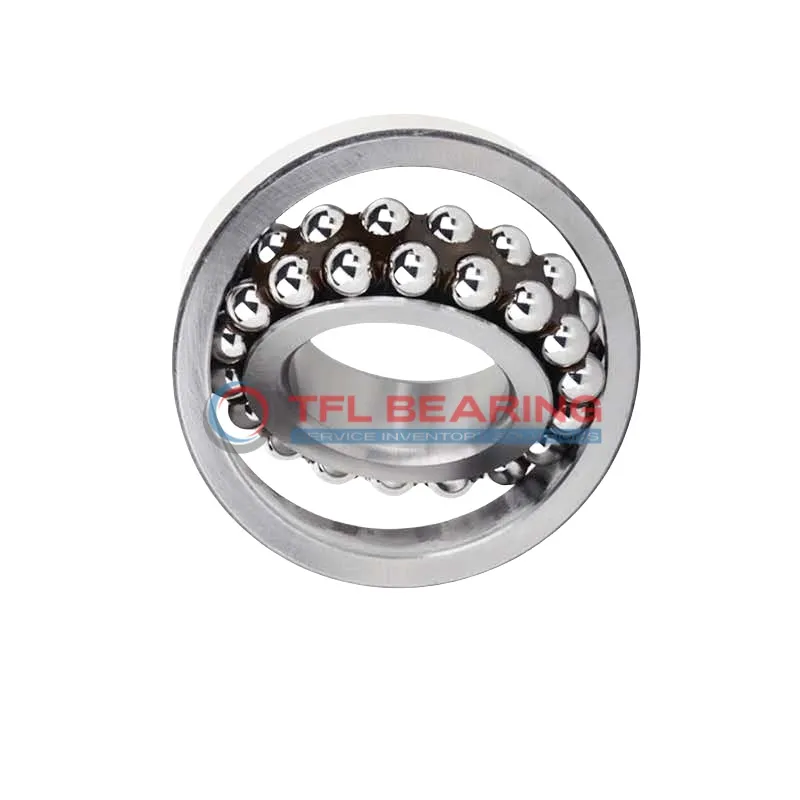

Self Aligning Ball Bearings 1308 ETN9/W64

Self Aligning Ball Bearings 1308 ETN9/W64

The 1308 ETN9/W64 is a self-aligning ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7605 lbf and operates smoothly at speeds up to 9500 RPM.

Its double-row design and open seal allow for easy lubrication, while the nylon cage reduces friction for quieter performance. The bearing works reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.68kg, it balances durability with manageable size. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1308 ETN9/W64
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 61.47 mm
  • Internal Diameter On Outer Ring 80.2 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7605 lbf
  • Static Radial Load 2520 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9500 rpm
  • Weight 0.68 kg
  • Price（$） 80.95
Self Aligning Ball Bearings 1308 ETN9/W64 dimension drawing
Download DWG Download PDF

Features

How Does 1308 ETN9/W64 Bearing Reduce Friction?

1308 ETN9/W64 Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
The nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.

With a dynamic radial load capacity of 7605 lbf, it handles demanding applications efficiently.
The lubricated design further enhances performance, extending the bearing’s service life.

Its self-aligning capability compensates for minor misalignments, reducing wear and maintenance needs.
Operating at speeds up to 9,500 rpm, it balances durability and high-speed performance.

Application

Industrial Uses of 1308 ETN9/W64 Bearing
1308 ETN9/W64 Bearing is commonly used in industrial machinery like conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads, making it suitable for heavy-duty applications.

In automotive applications, 1308 ETN9/W64 Bearing can be found in gearboxes and wheel hubs, where its durability and smooth operation are essential. The metric sizing ensures compatibility with a variety of vehicle designs, particularly in European models.

For automation equipment, 1308 ETN9/W64 Bearing supports robotic arms and assembly lines, thanks to its nylon cage reducing friction. The open seal design allows for easy lubrication, extending the bearing’s service life in high-speed operations.

In household appliances like washing machines, 1308 ETN9/W64 Bearing provides quiet and efficient performance. Its chrome steel construction ensures longevity, even under constant use in everyday devices.
