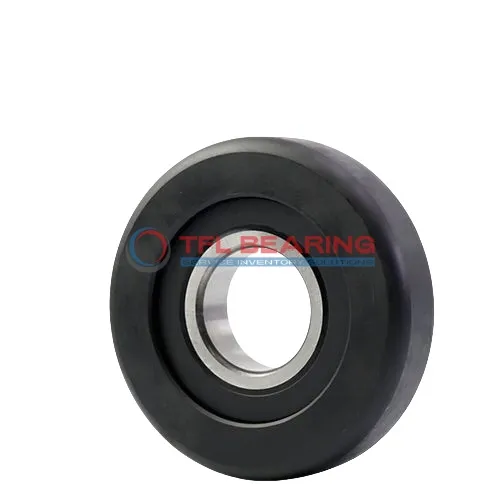

Mast Guide Bearings MG 306/36 DDL‑15

Mast Guide Bearings MG 306/36 DDL‑15

The MG 306/36 DDL‑15 is a mast guide bearing with a 36mm inner diameter and 89.5mm outer diameter, designed for heavy-duty applications. It handles dynamic loads up to 75,680 N and static loads up to 93,600 N, offering reliable performance under pressure.

With an inner ring width of 9mm and outer ring width of 29mm, it provides a stable fit in various setups. The 6mm radius ensures smooth operation and reduces stress on surrounding components.

Weighing just over 1kg, this bearing is sturdy yet manageable for installation. Its robust construction makes it suitable for mast guidance systems or industrial machinery where precision and durability are key.

The bearing’s design balances strength and ease of use, making it a practical choice for engineers and maintenance teams alike.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 306/36 DDL‑15
  • Brand TFL & OEM
  • Inner Diameter (d) 36.000 mm
  • Outer Diameter (D) 89.50 mm
  • Inner Ring Width (b) 9 mm
  • Outer Ring Width (B) 29.000 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 75,680 N
  • Static Capacity (Cor.) 93,600 N
  • Weight 1.0886 Kg
Mast Guide Bearings MG 306/36 DDL‑15 dimension drawing
Download DWG Download PDF

Features

How Is MG 306/36 DDL‑15 Bearing Engineered for Reliability?

MG 306/36 DDL‑15 Bearing features a robust design with an inner diameter of 36.000 mm and an outer diameter of 89.50 mm, ensuring stability under heavy loads.
Its dynamic capacity of 75,680 N and static capacity of 93,600 N make it suitable for demanding applications.
The bearing’s inner ring width of 9 mm and outer ring width of 29.000 mm provide balanced support and durability.
With a weight of 1.0886 kg, it offers a practical solution for industrial use.

Application

Industrial Uses of MG 306/36 DDL‑15 Bearing
MG 306/36 DDL‑15 Bearing is commonly used in heavy machinery, such as cranes and construction equipment, where its high dynamic capacity handles substantial loads with ease. The robust design ensures longevity even in demanding environments.

In automotive applications, MG 306/36 DDL‑15 Bearing fits well in steering systems and suspension components, providing reliable performance under constant stress. Its precise dimensions make it a versatile choice for various vehicle models.

For automation systems, MG 306/36 DDL‑15 Bearing supports robotic arms and conveyor belts, offering smooth movement and reduced friction. The durable construction minimises maintenance needs, ideal for high-use industrial settings.

Where Is MG 306/36 DDL‑15 Bearing Used?
MG 306/36 DDL‑15 Bearing finds its place in wind turbines, where its static capacity ensures stability under fluctuating wind loads. The corrosion-resistant materials extend its lifespan in outdoor conditions.

In medical imaging devices, MG 306/36 DDL‑15 Bearing’s precision engineering allows for accurate positioning of components. The lightweight design also reduces strain on moving parts, enhancing overall efficiency.
