Metric Size Miniature Flanged Ball Bearings SMF63 2rs

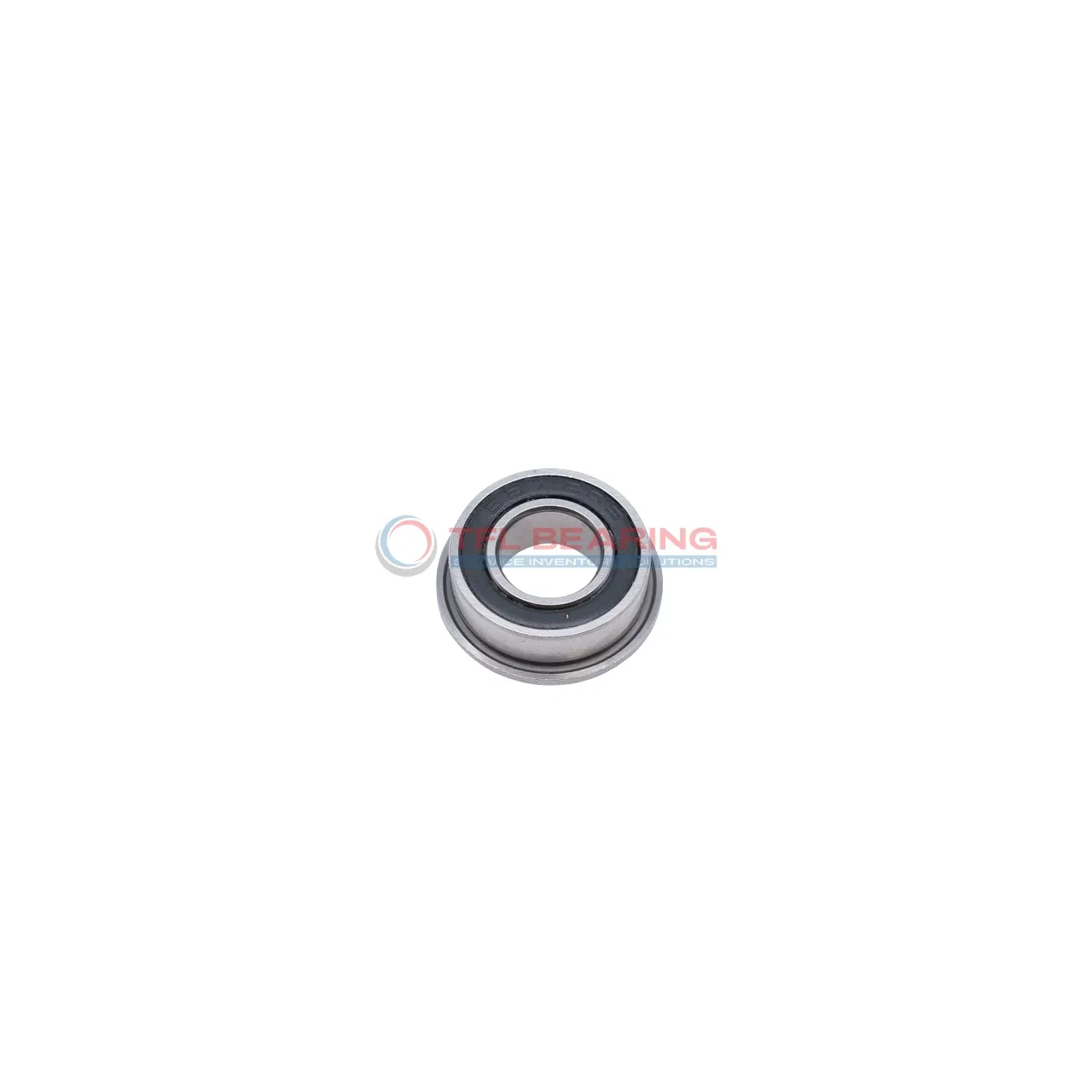

Metric Size Miniature Flanged Ball Bearings SMF63 2rs

The SMF63 2RS is a compact radial ball bearing with a 3mm bore and 6mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 36 lbf and spins remarkably fast, reaching speeds of 63,900 RPM.

Its sealed design with nitrile rubber shields keeps dirt out and grease in, making it low-maintenance. The stainless steel cage ensures smooth operation even at high speeds.

This bearing is ideal for small, high-speed devices like miniature motors or precision instruments. Its lightweight design (just 0.26g) makes it perfect for applications where every gram counts.

Operating smoothly from -30°C to 110°C, it meets RoHS and REACH standards for safe use. The flange adds stability, making installation easier in tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SMF63 2rs
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 3 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 6 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 2.5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 7.2 mm
  • Flange Thickness 0.6 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 8
  • Ball Dia 0.8000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Sealed
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 36 lbf
  • Static Radial Load 12 lbf
  • Max Speed 63900 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.26 g
  • Shield Material Nitrile Rubber
  • Price（$） 1.62
Metric Size Miniature Flanged Ball Bearings SMF63 2rs dimension drawing
Download DWG Download PDF

Features

Why Choose SMF63 2RS Bearing for Precision Tasks?

SMF63 2RS Bearing features a sealed design with stainless steel rings and balls, ensuring smooth radial load handling.
Its compact size, with a 3 mm bore and 6 mm outer diameter, makes it ideal for precision instruments.
The bearing can reach speeds up to 63,900 rpm, offering high performance in small-scale applications.
With a dynamic radial load capacity of 36 lbf, it balances durability and efficiency.

Application

Common Applications of SMF63 2rs Bearing
SMF63 2rs Bearing is widely used in small electric motors, such as those found in cooling fans or miniature appliances, thanks to its compact size and sealed design. The stainless steel construction ensures it performs well in humid or corrosive environments.

In robotics, SMF63 2rs Bearing is a go-to choice for lightweight joints and precision movements, where its high-speed capability and low friction are key. The sealed design also helps keep out dust and debris, extending its lifespan.

For medical devices like dental tools or portable diagnostic equipment, SMF63 2rs Bearing offers reliable performance due to its smooth operation and resistance to wear. Its small dimensions make it ideal for space-constrained applications.

In consumer electronics, such as handheld gadgets or miniature printers, SMF63 2rs Bearing ensures quiet and efficient operation. The nitrile rubber seal provides added protection against contaminants, maintaining performance over time.
