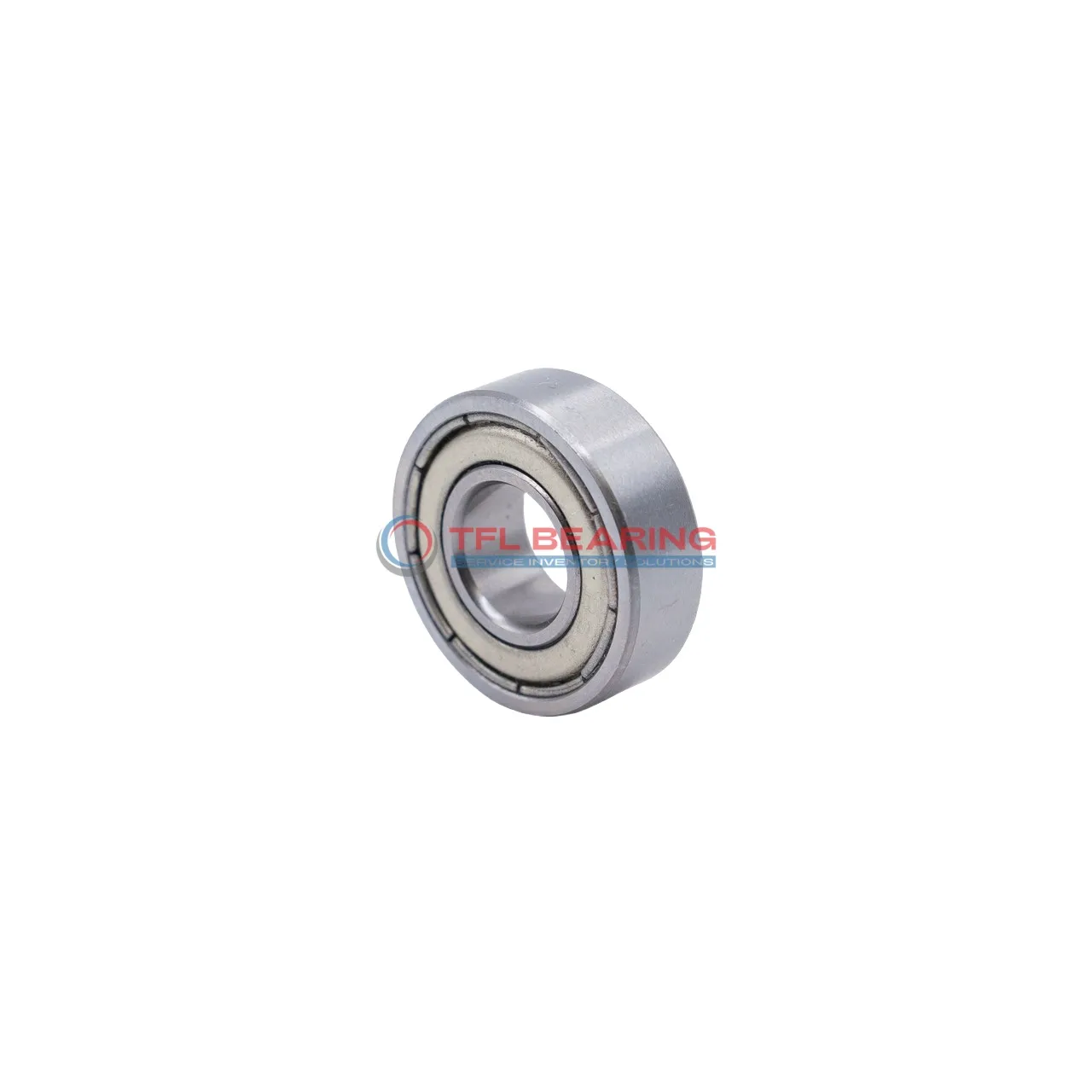

Metric Size Standard Miniature Ball Bearings 692zz

Metric Size Standard Miniature Ball Bearings 692zz

The 692zz is a miniature ball bearing with a compact size of 2mm by 6mm by 3mm, crafted from durable chrome steel. It handles radial loads up to 63 lbf and spins smoothly at speeds up to 75,000 RPM.

Its shielded design keeps dust out while maintaining easy access for lubrication. The stainless steel cage ensures reliable performance in temperatures from -30°C to 110°C.

This bearing is ideal for small devices like model motors or precision instruments where space is limited. Weighing just 0.35g, it’s lightweight yet sturdy for its size.

Compliant with RoHS and REACH standards, it’s a safe choice for various applications. The ABEC1 tolerance class makes it suitable for general-purpose use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 692zz
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 2 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 6 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 6
  • Ball Dia 1.2000 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Shielded
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 63 lbf
  • Static Radial Load 18 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 75000 rpm
  • Weight 0.35 g
  • Price（$） 1.755
Metric Size Standard Miniature Ball Bearings 692zz dimension drawing
Download DWG Download PDF

Features

Why Choose 692zz Bearing for Precision Tasks?

692zz Bearing is crafted with chrome steel rings and balls, ensuring smooth radial load handling.
Its compact size of 2 mm×6 mm×3 mm makes it ideal for miniature applications requiring precision.
The shielded design protects against contaminants while maintaining low friction.
With a maximum speed of 75,000 rpm, it delivers reliable performance in high-speed scenarios.

Application

Common Applications of 692zz Bearing
The 692zz Bearing is widely used in small electric motors, such as those found in cooling fans and power tools, thanks to its compact size and shielded design. Its chrome steel construction ensures durability even in high-speed operations.

Industrial Uses of 692zz Bearing
In automation systems, 692zz Bearing is a go-to choice for precision components like robotic arms and 3D printers. The ABEC1 tolerance class provides reliable performance for smooth, consistent movement.

Where to Use 692zz Bearing
For consumer electronics, 692zz Bearing fits perfectly in devices like printers and small appliances, where its lightweight and low friction are key advantages. The stainless steel cage adds extra resistance to wear.

What Makes 692zz Bearing a Preferred Choice?
Medical devices, such as dental tools and lab equipment, benefit from 692zz Bearing’s precise radial load handling. Its shielded design also helps keep contaminants out, ensuring cleaner operation.

Built for Versatility: 692zz Bearing
Whether in automotive sensors or household gadgets, 692zz Bearing delivers reliable performance. The metric sizing makes it easy to integrate into various designs, while the high-speed capability suits dynamic applications.
