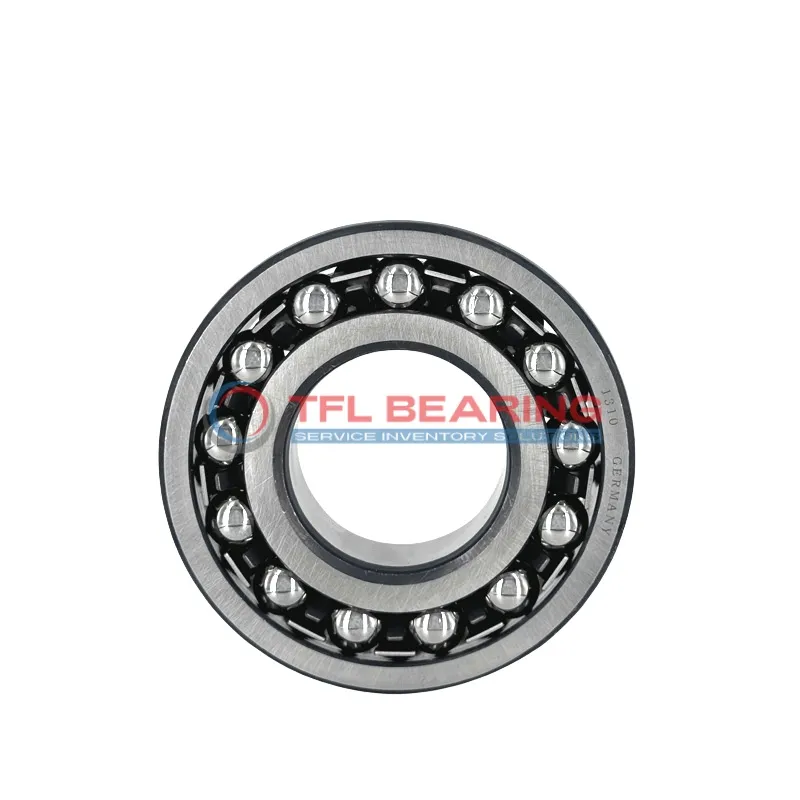

Self Aligning Ball Bearings 1305

Self Aligning Ball Bearings 1305

The 1305 is a self-aligning ball bearing with a 25mm bore and 48mm outer diameter, crafted from sturdy 52100 chrome steel. It manages radial loads up to 1460 lbf and operates smoothly at speeds up to 6580 RPM.

Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like conveyor systems or agricultural machinery where slight misalignment may occur.

Weighing only 0.11kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1305
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 48 mm
  • Outer Dia Tolerance -0.012mm to 0
  • Width 17 mm
  • Width Tolerance +0.02mm to -0.25mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Seal Type Open
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1460 lbf
  • Static Radial Load 7627 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6580 rpm
  • Weight 0.11 kg
Self Aligning Ball Bearings 1305 dimension drawing
Download DWG Download PDF

Features

How Is 1305 Bearing Engineered for Reliability?

1305 Bearing is crafted from 52100 chrome steel, offering strong resistance to wear and tear.
Its dynamic radial load capacity of 1460 lbf ensures steady performance in various applications.
The open seal design allows for easy lubrication, maintaining smooth operation over time.
With a maximum speed of 6,580 rpm, it balances efficiency and durability.

Application

Industrial Uses of 1305 Bearing
1305 Bearing is commonly used in industrial settings like conveyor systems and pumps, where its self-aligning feature helps handle minor misalignments. The open design allows for easy lubrication, extending its service life in demanding conditions.

What Makes 1305 Bearing a Preferred Choice?
In automotive applications, 1305 Bearing fits well in gearboxes and steering systems, offering reliable performance under radial loads. Its chrome steel construction ensures durability even in high-temperature environments.

Perfect Fit for Automation: 1305 Bearing
For robotics and automation, 1305 Bearing provides smooth operation in robotic arms and assembly lines. The metric sizing makes it compatible with a variety of European and Asian machinery.

Medical vs Industrial: Where 1305 Bearing Excels
In medical devices like lab equipment, 1305 Bearing’s precision ensures consistent performance. Meanwhile, its robust design also makes it suitable for heavy-duty industrial machinery.

Light-Duty vs Heavy-Duty: Best Uses for 1305 Bearing
1305 Bearing works well in light-duty applications like small electric motors, thanks to its compact size. It also handles heavier loads in industrial fans and compressors without compromising performance.
