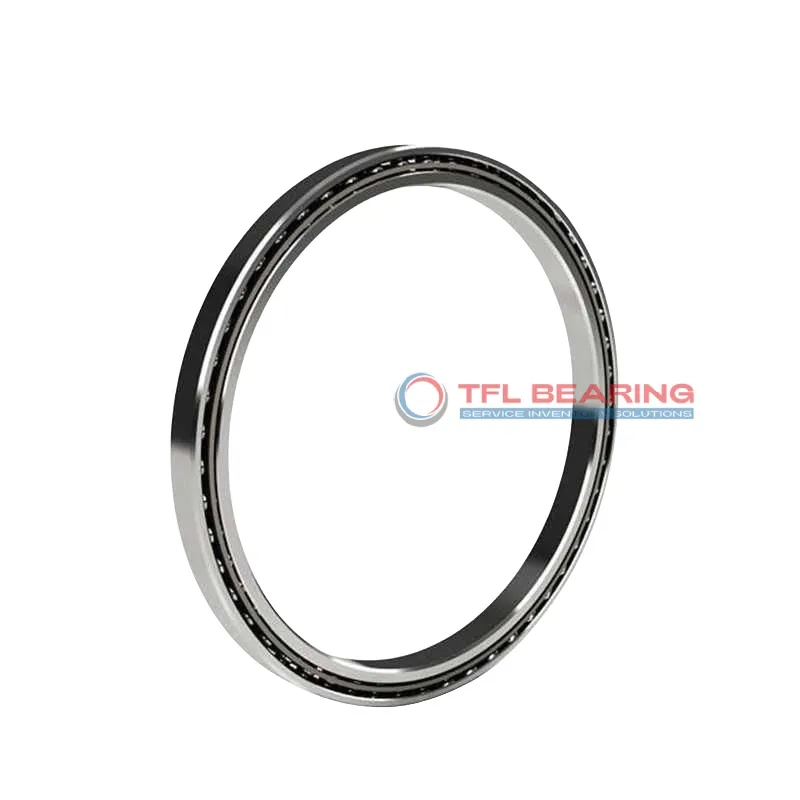

Constant Section (CS) Bearings JU075XP0

Constant Section (CS) Bearings JU075XP0

The JU075XP0 is a sealed, thin-section ball bearing measuring 7.5″ by 8.25″ with a slim 0.5″ width, ideal for space-constrained applications. Made from chrome steel with a brass cage, it handles radial loads up to 2007 lbf and thrust loads up to 3270 lbf.

Its four-point contact design ensures smooth operation, while the sealed construction keeps dirt out and lubrication in. The bearing works in temperatures from -30°C to 110°C, making it suitable for various environments.

This model is interchangeable with KAYDON bearings, offering a reliable replacement option. Perfect for machinery where slim profiles and high load capacity are needed, such as robotics or precision equipment.

Weighing just 0.99 lbs, it’s lightweight yet durable. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JU075XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 7.5"
  • Bore Dia Tolerance -0.0012"– 0"
  • Outer Dia 8.25"
  • Outer Dia Tolerance -0.0012"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JU 1/2" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 7.650"
  • Internal Diameter On Outer Ring (Small Side Face) 8.037"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2007 lbf
  • Static Radial Load 3790 lbf
  • Static Thrust Load 9470 lbf
  • Static Moment 14910 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 5 lbf
  • Dynamic Thrust Load 3270 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.99 lbs
  • price（$） 174.55
Constant Section (CS) Bearings JU075XP0 dimension drawing
Download DWG Download PDF

Features

Why Choose JU075XP0 Bearing for Precision Tasks?

JU075XP0 Bearing features a four-point contact design, ensuring precise load distribution and smooth operation.
Its chrome steel rings and balls provide durability, while the brass cage maintains alignment for consistent performance.

With a static thrust load capacity of 9470 lbf, JU075XP0 Bearing handles demanding applications effortlessly.
The sealed construction protects against contaminants, extending its service life in harsh environments.

JU075XP0 Bearing operates within a temperature range of -30°C to 110°C, making it versatile for various conditions.
Its ABEC-1 tolerance class ensures reliable precision, ideal for tasks requiring accuracy.

Application

Industrial Uses of JU075XP0 Bearing
JU075XP0 Bearing is commonly used in robotics, especially in articulated arms where its thin-section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.

In automation systems, JU075XP0 Bearing supports rotary tables and indexing units, thanks to its precise ABEC-1 tolerance. The brass cage reduces friction, making it ideal for smooth, repetitive motions.

For aerospace applications, JU075XP0 Bearing handles moderate radial and thrust loads in control mechanisms. Its chrome steel rings and balls provide reliable performance under varying temperatures.

Where Is JU075XP0 Bearing Used?
You’ll find JU075XP0 Bearing in medical imaging devices, where its slim profile fits into compact designs. The sealed feature also prevents lubricant leakage, critical for cleanroom environments.

In packaging machinery, JU075XP0 Bearing ensures smooth conveyor operation with its dynamic load capacity. The inch sizing makes it easy to integrate into North American equipment.

Built for Heavy-Duty Use: JU075XP0 Bearing
JU075XP0 Bearing excels in construction equipment, such as crane slewing rings, where moment loads are common. Its brass cage dampens vibrations, enhancing stability under heavy stress.

For semiconductor manufacturing, JU075XP0 Bearing offers precise motion control in wafer handlers. The lubricated design minimises maintenance downtime in high-throughput settings.

Light-Duty vs Heavy-Duty: Best Uses for JU075XP0 Bearing
In light-duty applications like telescope mounts, JU075XP0 Bearing provides smooth rotation with minimal backlash. The thin section saves weight without sacrificing rigidity.

For heavier tasks like wind turbine yaw systems, JU075XP0 Bearing handles combined loads reliably. Its static moment rating ensures stability even under uneven force distribution.
