Self Aligning Ball Bearings 1306

Self Aligning Ball Bearings 1306

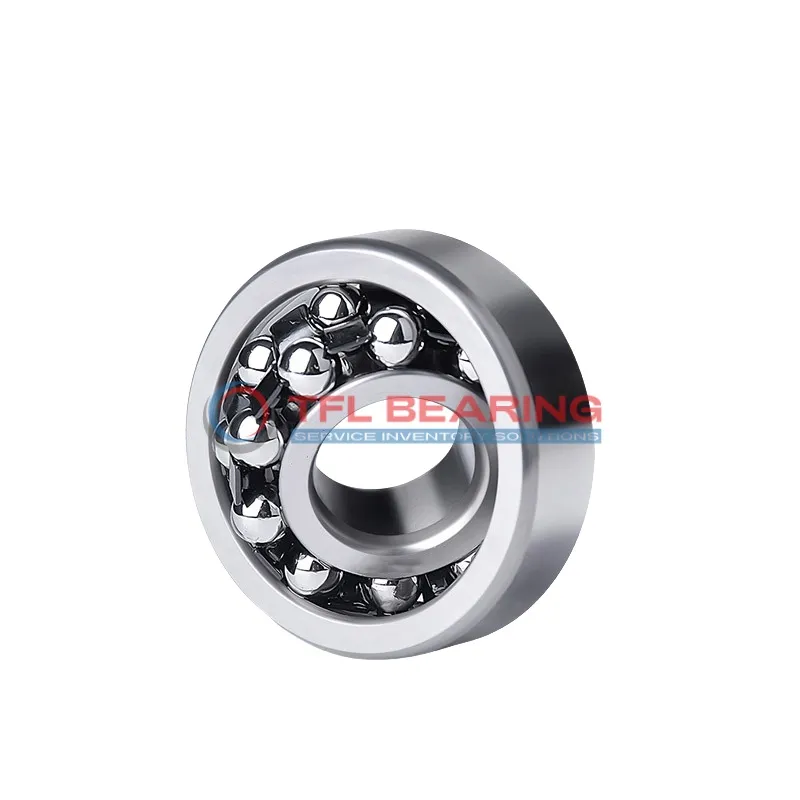

The 1306 is a self-aligning ball bearing with a 30mm bore and 53mm outer diameter, crafted from sturdy 52100 chrome steel. It manages radial loads up to 1725 lbf and operates smoothly at speeds up to 5740 RPM.

Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like conveyor systems or agricultural machinery where slight misalignments may occur.

Weighing just 0.15kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1306
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 53 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 18 mm
  • Width Tolerance +0.02mm to -0.25mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Seal Type Open
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1725 lbf
  • Static Radial Load 10401 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5740 rpm
  • Weight 0.15 kg
Self Aligning Ball Bearings 1306 dimension drawing
Download DWG Download PDF

Features

Performance Features of 1306 Bearing

1306 Bearing is crafted from 52100 chrome steel, offering robust resistance to radial loads.
Its dynamic radial load capacity of 1725 lbf ensures dependable performance in various applications.

The chrome steel cage maintains ball alignment, reducing friction and enhancing longevity.
With a maximum speed of 5,740 rpm, it delivers a balance of durability and smooth operation.

1306 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design simplifies lubrication, making maintenance straightforward and cost-effective.

Application

Industrial Uses of 1306 Bearing
1306 Bearing is commonly used in conveyor systems and industrial fans, where its self-aligning feature helps compensate for minor misalignments. The open design allows for easy lubrication, extending its service life in dusty environments.

What Makes 1306 Bearing a Preferred Choice?
In automotive applications, 1306 Bearing fits well in gearboxes and auxiliary drives, thanks to its balanced load capacity. The chrome steel construction ensures it can handle both radial and moderate axial loads with ease.

Built for Heavy-Duty Use: 1306 Bearing
For automation equipment like robotic arms, 1306 Bearing offers smooth rotation and reliable performance. Its metric sizing makes it a versatile option for various machinery designs across different industries.

Medical vs Industrial: Where 1306 Bearing Excels
In medical devices like centrifuges, 1306 Bearing provides quiet operation and precision. Meanwhile, in industrial settings, it’s valued for its durability and ability to handle continuous operation.

Practical Applications of 1306 Bearing
1306 Bearing is a great fit for household appliances like washing machines, where its self-aligning capability reduces wear. The chrome steel balls and rings ensure long-term reliability even with frequent use.
