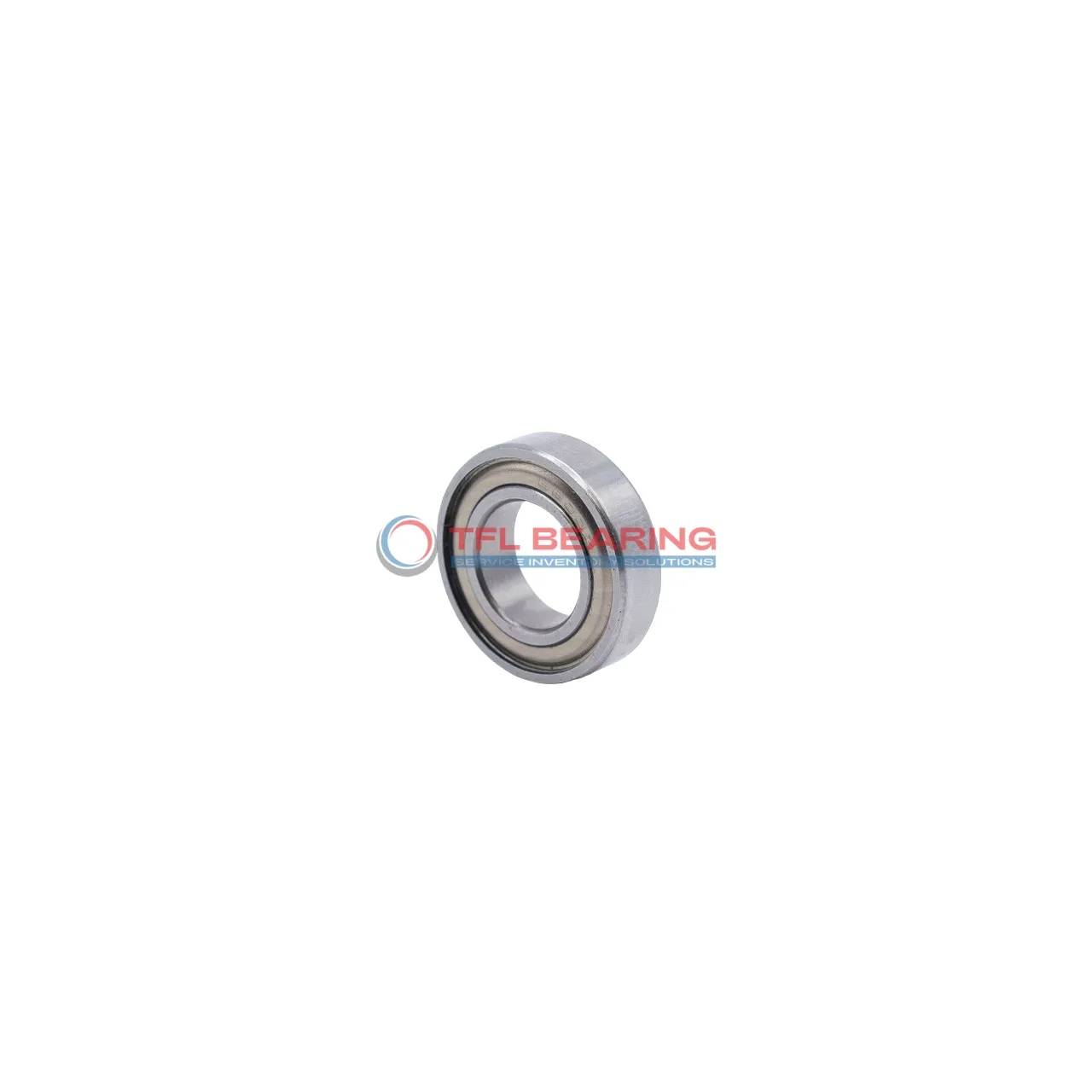

Single Row Deep Groove Ball Bearings 6309-2Z/C3/GJN

Single Row Deep Groove Ball Bearings 6309-2Z/C3/GJN

The 6309-2Z/C3/GJN is a single-row deep groove ball bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 11915 lbf and operates smoothly at speeds up to 6700 RPM.
Its shielded design keeps dirt out while the chrome steel cage ensures durability. The bearing performs reliably in temperatures from -30°C to 120°C.
With a C3 radial clearance, it’s suited for applications where slight expansion or misalignment might occur. Ideal for electric motors, pumps, or industrial gearboxes.
Weighing 811g, it’s a robust choice for medium-duty machinery. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6309-2Z/C3/GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 25 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 11915 lbf
  • Static Radial Load 7194 lbf
  • Max Speed 6700 rpm
  • Weight 811 g
  • price（$） 17.28
Single Row Deep Groove Ball Bearings 6309-2Z/C3/GJN dimension drawing
Download DWG Download PDF

Features

How Does 6309-2Z/C3/GJN Bearing Reduce Friction?

6309-2Z/C3/GJN Bearing features a single-row deep groove design, optimised for smooth radial load distribution.

The chrome steel construction ensures durability while reducing friction during operation.

With a dynamic radial load capacity of 11915 lbf, it handles demanding applications with ease.

The shielded design protects against contaminants, maintaining performance in various environments.

Application

Industrial Uses of 6309-2Z/C3/GJN Bearing
The 6309-2Z/C3/GJN Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. Its C3 radial clearance ensures smooth operation even under varying thermal conditions.

What Makes 6309-2Z/C3/GJN Bearing a Preferred Choice?
In automotive applications, 6309-2Z/C3/GJN Bearing works well in alternators and wheel hubs due to its balanced radial load capacity. The chrome steel construction offers durability, making it suitable for long-term use.

Perfect Fit for Automation: 6309-2Z/C3/GJN Bearing
For automated systems, 6309-2Z/C3/GJN Bearing provides reliable performance in conveyor belts and robotic arms. Its shielded seals reduce maintenance needs, ideal for high-efficiency environments.

Medical vs Industrial: Where 6309-2Z/C3/GJN Bearing Excels
While 6309-2Z/C3/GJN Bearing isn’t typically used in medical devices, it shines in industrial settings like compressors and gearboxes. The metric sizing ensures compatibility with a wide range of equipment.

Essential Roles of 6309-2Z/C3/GJN Bearing
In household appliances like washing machines, 6309-2Z/C3/GJN Bearing ensures quiet and efficient operation. Its temperature range and load capacity make it versatile for everyday use.
