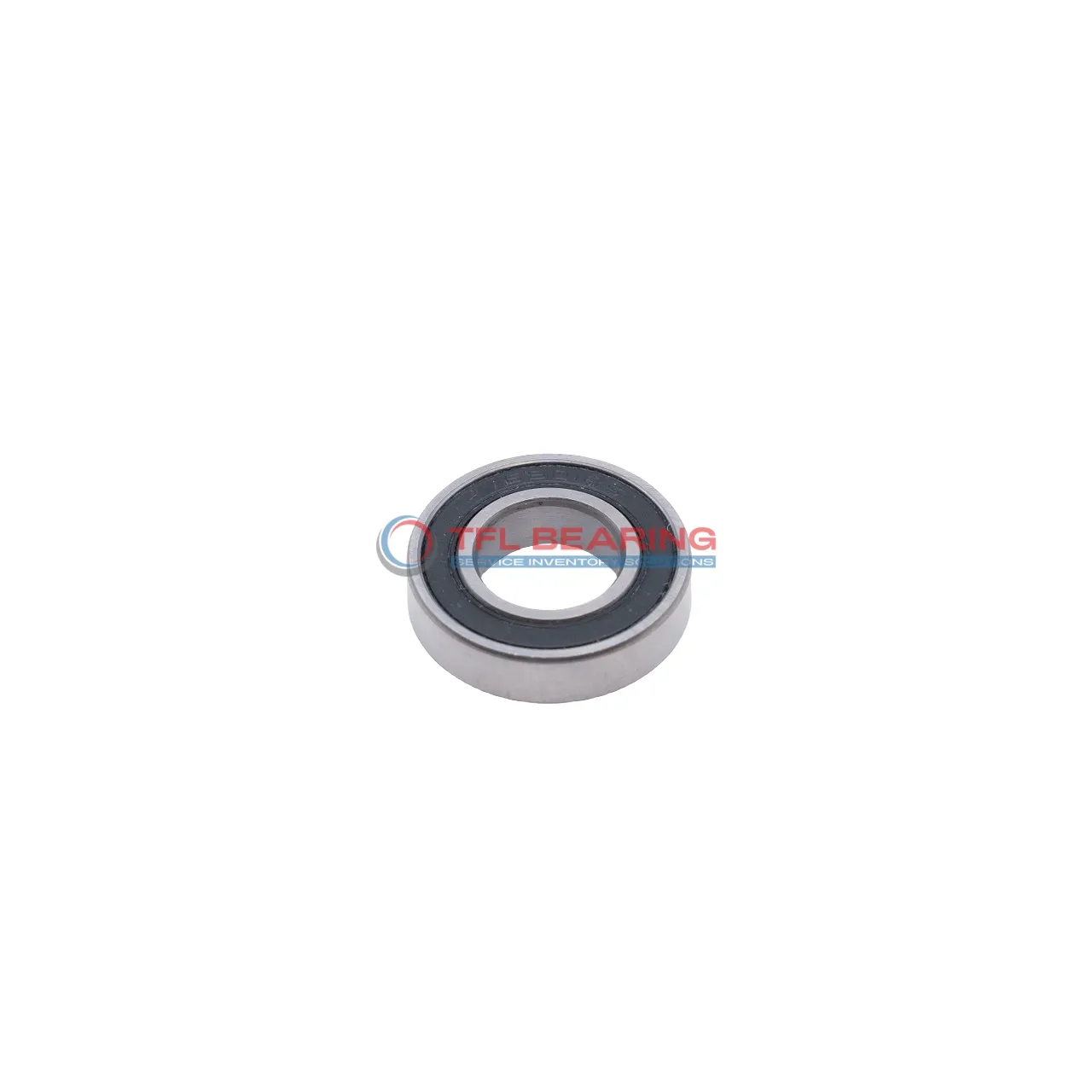

Single Row Deep Groove Ball Bearings 6201-2RSL/C3HTF7

Single Row Deep Groove Ball Bearings 6201-2RSL/C3HTF7

The 6201-2RSL/C3HTF7 is a compact single-row deep groove ball bearing, measuring 12mm by 32mm by 10mm. Made from chrome steel, it’s built to handle radial loads up to 1529 lbf and spins smoothly at speeds up to 22,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance allows for slight expansion under heat, ideal for varying temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It’s well-suited for electric motors, pumps, or small machinery where space is limited.

Weighing just 37g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6201-2RSL/C3HTF7
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1529 lbf
  • Static Radial Load 686 lbf
  • Max Speed 22000 rpm
  • Weight 37 g
Single Row Deep Groove Ball Bearings 6201-2RSL/C3HTF7 dimension drawing
Download DWG Download PDF

Features

Why Choose 6201-2RSL/C3HTF7 Bearing for Precision Tasks?

6201-2RSL/C3HTF7 Bearing features a single row deep groove design, ideal for handling radial loads efficiently.
Its sealed construction protects against contaminants, ensuring smooth operation in various environments.
The chrome steel rings and balls offer durability, while the C3 radial clearance allows for thermal expansion.
With a maximum speed of 22,000 rpm, it delivers reliable performance in high-speed applications.

Application

Common Applications of 6201-2RSL/C3HTF7 Bearing
6201-2RSL/C3HTF7 Bearing works well in industrial settings, especially for machinery like pumps and electric motors where radial load support is needed. Its sealed design keeps out dust and moisture, making it reliable in harsh conditions.

In automotive applications, 6201-2RSL/C3HTF7 Bearing fits nicely into components like alternators and wheel hubs, offering smooth rotation and long service life. The C3 clearance ensures it handles temperature variations without issues.

For home appliances, 6201-2RSL/C3HTF7 Bearing is a solid choice for items like washing machines and fans, where quiet operation matters. The chrome steel construction adds durability for everyday use.

Automation systems benefit from 6201-2RSL/C3HTF7 Bearing in robotic arms and conveyor belts, thanks to its consistent performance. The metric sizing makes it easy to integrate into various designs.

Medical devices like small lab equipment often use 6201-2RSL/C3HTF7 Bearing for precise movement. Its temperature range suits both sterile environments and high-use scenarios.
