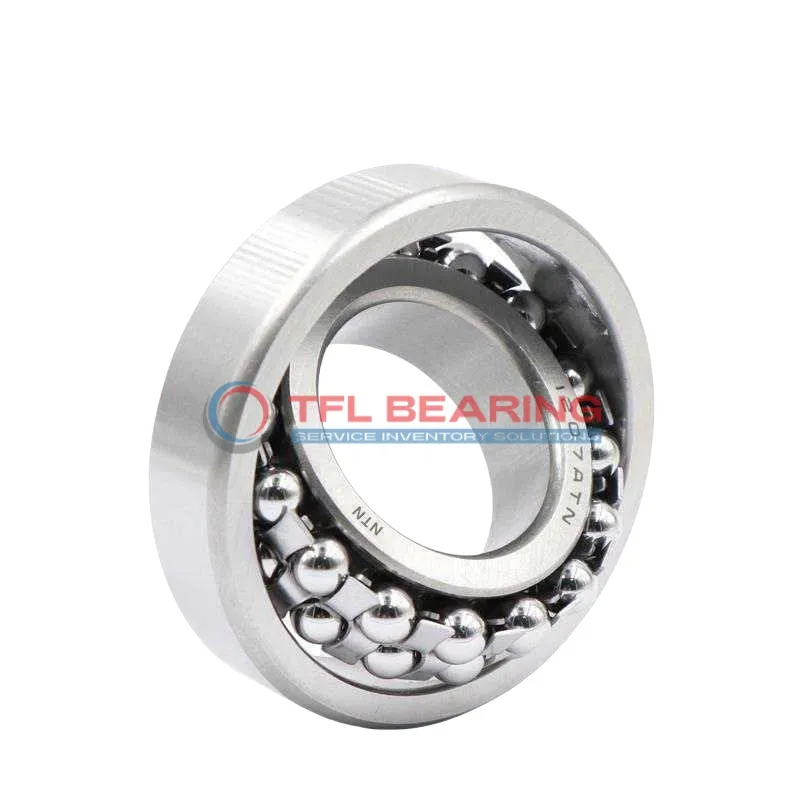

Self Aligning Ball Bearings 1315K

Self Aligning Ball Bearings 1315K

The 1315K is a self-aligning ball bearing with a 75mm tapered bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 17842 lbf and operates smoothly at speeds up to 5600 RPM.

Its double-row design and open seal type make it adaptable to slight misalignments, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like conveyor systems or agricultural machinery where alignment flexibility is needed.

Weighing 3.55kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1315K
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 37 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 104.8 mm
  • Internal Diameter On Outer Ring 135.2 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 17842 lbf
  • Static Radial Load 6750 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 3.55 kg
Self Aligning Ball Bearings 1315K dimension drawing
Download DWG Download PDF

Features

Performance Features of 1315K Bearing

1315K Bearing is designed with a double-row ball construction, providing excellent radial load capacity up to 17842 lbf.
Its chrome steel rings and balls ensure durability and resistance to wear in demanding applications.
The stainless steel cage maintains ball alignment, enhancing smooth operation and reducing friction.
With a maximum speed of 5,600 rpm, it offers reliable performance across various industrial uses.

Application

Common Applications of 1315K Bearing
1315K Bearing is widely used in industrial machinery, especially in applications where misalignment compensation is needed, like conveyor systems and heavy-duty fans. Its double-row design helps maintain smooth operation even under radial loads.

In automotive settings, 1315K Bearing can be found in gearboxes and drivetrains, where its tapered bore ensures a secure fit. The chrome steel construction provides durability for long-lasting performance.

For automation and robotics, 1315K Bearing supports precise movements in robotic arms and assembly lines. The open seal type allows for easy lubrication, keeping operations running smoothly.

In household appliances, 1315K Bearing is often used in washing machines and dryers, where its self-aligning feature helps reduce vibration. The stainless steel cage adds extra resistance to wear and tear.
