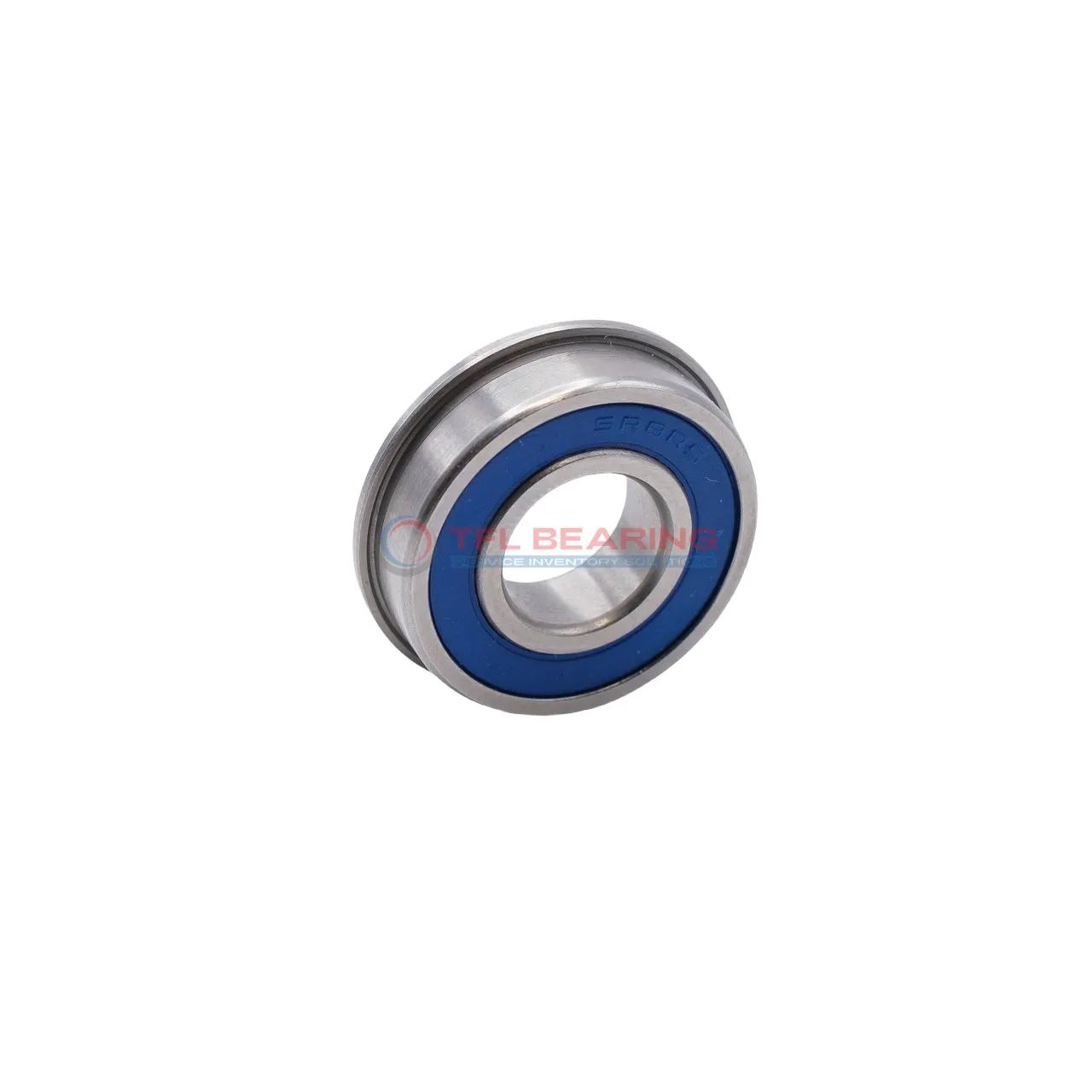

Metric Size Miniature Flanged Ball Bearings F625 2rs

Metric Size Miniature Flanged Ball Bearings F625 2rs

The F625 2rs is a small, sealed ball bearing with a 5mm bore and 16mm outer diameter, crafted from chrome steel for durability. It handles radial loads up to 331 lbf and spins at speeds up to 36,000 RPM, making it suitable for high-speed applications.

Its sealed design with nitrile rubber shields keeps dirt out and lubrication in, reducing maintenance needs. The stainless steel cage ensures smooth operation and long service life.

This bearing is ideal for small machinery, electric motors, or hobbyist projects where compact size and reliability are key. It operates in temperatures from -30°C to 110°C.

Weighing just 5.52 grams, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and practical choice for various uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F625 2rs
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 16 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 18 mm
  • Flange Thickness 1 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 7
  • Ball Dia 2.7780 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Sealed
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 331 lbf
  • Static Radial Load 122 lbf
  • Max Speed 36000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.52 g
  • Shield Material Nitrile Rubber
  • Price（$） 1.35
Metric Size Miniature Flanged Ball Bearings F625 2rs dimension drawing
Download DWG Download PDF

Features

How Does F625 2rs Bearing Reduce Friction?

F625 2rs Bearing features a sealed design with nitrile rubber shields, keeping contaminants out and lubrication in.
Its chrome steel construction ensures smooth operation, reducing friction even at high speeds.
With a dynamic radial load capacity of 331 lbf, it handles demanding radial applications efficiently.
The stainless steel cage maintains ball alignment, enhancing durability and performance.

Application

Where Is F625 2rs Bearing Used?
F625 2rs Bearing is commonly used in small electric motors, such as those found in cooling fans or power tools. Its sealed design helps keep out dust and moisture, making it reliable for everyday use.

In automation systems, F625 2rs Bearing fits well in compact robotic arms or 3D printers, where smooth rotation is essential. The high-speed capability ensures consistent performance in repetitive tasks.

For consumer electronics like printers or small appliances, F625 2rs Bearing offers quiet operation and durability. Its metric sizing makes it easy to integrate into various designs without modifications.

The chrome steel construction of F625 2rs Bearing also makes it suitable for light industrial equipment. The stainless steel cage adds extra resistance to wear, extending its lifespan.
