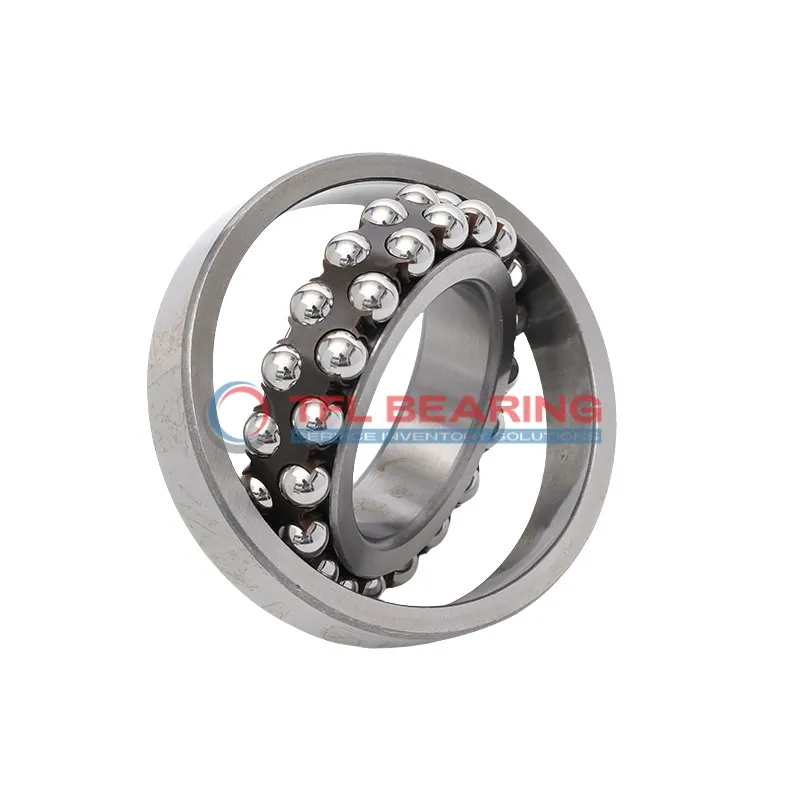

Self Aligning Ball Bearings 1302 C/3

Self Aligning Ball Bearings 1302 C/3

The 1302 C/3 is a self-aligning ball bearing with a 15mm bore and 42mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2430 lbf and spins smoothly at speeds up to 24,000 RPM.

Its double-row design and open construction allow for easy alignment and maintenance, while the nylon cage reduces friction for quieter operation. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like conveyor systems or electric motors where slight misalignments may occur.

Weighing just 0.094kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1302 C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 13 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 23.9 mm
  • Internal Diameter On Outer Ring 34.3 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 2430 lbf
  • Static Radial Load 585 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 24000 rpm
  • Weight 0.094 kg
  • Price（$） 14.81
Self Aligning Ball Bearings 1302 C/3 dimension drawing
Download DWG Download PDF

Features

How Does 1302 C/3 Bearing Reduce Friction?

1302 C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.
The bearing’s open seal type facilitates easy lubrication, maintaining optimal performance over time.
With a maximum speed of 24,000 rpm, it combines efficiency with durability in various applications.

Application

Where Is 1302 C/3 Bearing Used?

1302 C/3 Bearing is commonly used in industrial fans and blowers, where its self-aligning feature compensates for minor misalignments. The double-row design helps distribute radial loads evenly, ensuring smooth operation over long periods.

In automotive applications, 1302 C/3 Bearing fits well in auxiliary units like alternators and water pumps. Its nylon cage reduces friction, making it suitable for high-speed rotations common in vehicle systems.

For small machinery, 1302 C/3 Bearing’s compact size and radial load capacity make it ideal for power tools and light conveyor systems. The chrome steel construction provides durability in various working conditions.
