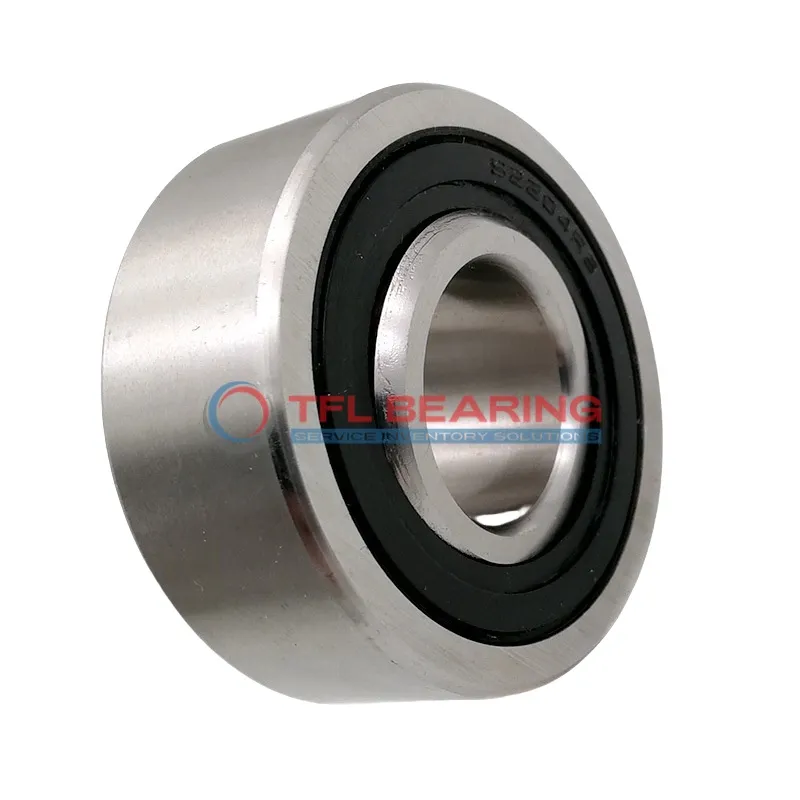

Self Aligning Ball Bearings 2305E-2RS C/3

Brand: TFL Bearing Interchangeable: SKF 2305E-2RS C/3 25 mm × 62 mm × 24 mm Metric Sealed
Part number: 2305E-2RS C/3
Self Aligning Ball Bearings 2305E-2RS C/3
In Stock
US$55.74 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia25 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia62 mm
Outer Dia Tolerance-0.013mm to 0
Width24 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring32.8 mm
Internal Diameter On Outer Ring52.7 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load4,275 lbf
Static Radial Load1,215 lbf
Temperature Range-30° to 110 °C
Max Speed7,500 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight0.34 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2305E-2RS C/3 is a self-aligning ball bearing with a 25mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4275 lbf and operates smoothly at speeds up to 7500 RPM.

Its double-row design and sealed construction keep dirt out, while the nylon cage reduces friction for quieter performance. The bearing comes pre-lubricated and works in temperatures from -30°C to 110°C.

This model aligns itself to minor shaft misalignments, making it forgiving in less precise setups. It’s interchangeable with SKF bearings, ideal for fans, conveyors, or agricultural machinery.

Weighing 0.34kg, it’s a durable choice for medium-duty applications. Compliant with RoHS and REACH standards for safe use.

Features

How Does 2305E-2RS C/3 Bearing Reduce Friction?

2305E-2RS C/3 Bearing features a double-row design with chrome steel balls, ensuring smooth radial load distribution.
The sealed construction keeps contaminants out, maintaining consistent lubrication for reduced friction.

Its nylon cage minimises contact between balls, further lowering friction and wear.
With a dynamic radial load capacity of 4275 lbf, it delivers reliable performance in various applications.

The bearing operates efficiently at speeds up to 7,500 rpm, balancing durability and smooth operation.
Its chrome steel construction resists wear, extending service life even under continuous use.

Application

Industrial Uses of 2305E-2RS C/3 Bearing
2305E-2RS C/3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, extending service life in dusty environments.

Where Is 2305E-2RS C/3 Bearing Used?
In automotive applications, 2305E-2RS C/3 Bearing fits well in wheel hubs and transmissions, thanks to its radial load capacity. The nylon cage reduces friction, making it suitable for moderate-speed operations.

Built for Heavy-Duty Use: 2305E-2RS C/3 Bearing
This bearing handles radial loads effectively in industrial fans and pumps, where consistent performance is needed. Its chrome steel construction ensures durability even in demanding conditions.

Medical vs Industrial: Where 2305E-2RS C/3 Bearing Excels
While not typically used in medical devices, 2305E-2RS C/3 Bearing shines in industrial settings like food processing equipment. The sealed design prevents lubricant leakage, meeting hygiene standards.

Perfect Fit for Automation: 2305E-2RS C/3 Bearing
In robotic arms, 2305E-2RS C/3 Bearing offers smooth rotation with minimal maintenance. The double-row design provides stability, crucial for precision movements in automated systems.
