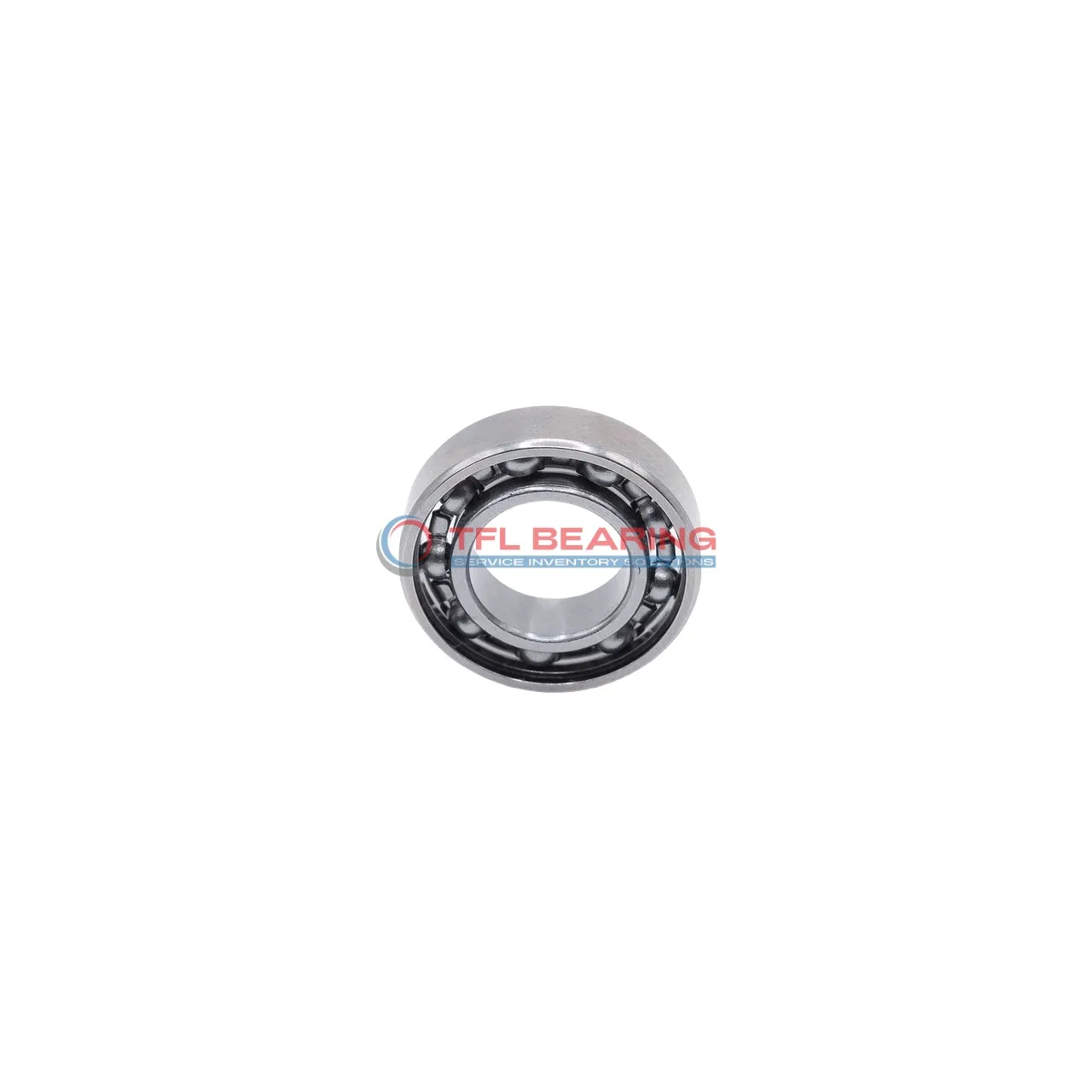

Single Row Deep Groove Ball Bearings 209MF

Single Row Deep Groove Ball Bearings 209MF

The 209MF is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7913 lbf and operates smoothly at speeds up to 8500 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or conveyor systems where radial loads are common.

Weighing 0.44kg, it offers a good balance of strength and lightness. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 209MF
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7913 lbf
  • Static Radial Load 6744 lbf
  • Max Speed 8500 rpm
  • Weight 0.44 kg
  • price（$） 12.924
Single Row Deep Groove Ball Bearings 209MF dimension drawing
Download DWG Download PDF

Features

Performance Features of 209MF Bearing

209MF Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 7913 lbf, ensuring reliable performance in various applications.
The chrome steel cage maintains ball alignment, reducing wear and extending service life.
With a maximum speed of 8,500 rpm, it balances durability and efficiency.

Application

Common Applications of 209MF Bearing
209MF Bearing is widely used in industrial machinery, such as electric motors and pumps, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, making it suitable for various operating conditions.

In automotive applications, 209MF Bearing can be found in components like alternators and water pumps, providing smooth rotation under radial loads. Its metric sizing ensures compatibility with a range of vehicle models.

For home appliances, 209MF Bearing is often used in washing machines and fans, where its durability and quiet operation are appreciated. The chrome steel construction offers long-lasting performance in everyday use.

Where Is 209MF Bearing Used?
You’ll often spot 209MF Bearing in conveyor systems, where its ability to handle radial loads keeps things running smoothly. The open seal design makes maintenance straightforward, even in dusty environments.

In small machinery like power tools, 209MF Bearing provides dependable support for high-speed rotations. Its balanced design helps reduce vibration, ensuring a smoother operation.

Built for Versatility: 209MF Bearing
209MF Bearing works well in agricultural equipment, such as tractors and harvesters, thanks to its robust construction. The wide temperature range also makes it suitable for outdoor use in varying climates.

In packaging machines, 209MF Bearing ensures consistent performance under continuous operation. Its compatibility with standard lubrication methods simplifies upkeep.

Light-Duty vs Heavy-Duty: Best Uses for 209MF Bearing
For light-duty applications like office printers, 209MF Bearing offers quiet and efficient performance. Its compact size fits well in space-constrained designs.

In heavier settings like industrial gearboxes, 209MF Bearing handles radial loads with ease. The chrome steel components provide the necessary strength for demanding tasks.
