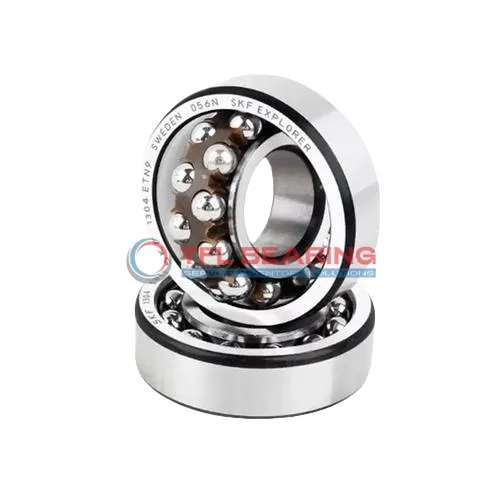

Self Aligning Ball Bearings 1220 K

Self Aligning Ball Bearings 1220 K

The 1220 K is a self-aligning ball bearing with a 100mm bore and 180mm outer diameter, crafted from sturdy chrome steel. Its double-row design helps manage radial loads up to 15502 lbf, with a maximum speed of 4800 RPM.

The open seal type allows for easy lubrication, while the nylon cage reduces friction for smoother operation. It performs reliably in temperatures ranging from -30°C to 110°C.

This bearing is interchangeable with SKF models, offering a practical replacement option. Suitable for machinery where misalignment or heavy radial loads are expected, such as conveyor systems.

Weighing 3.6kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for environmental safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1220 K
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 34 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 127 mm
  • Internal Diameter On Outer Ring 155.8 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 15502 lbf
  • Static Radial Load 6750 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 3.6 kg
  • Price（$） 136.12
Self Aligning Ball Bearings 1220 K dimension drawing
Download DWG Download PDF

Features

Why Choose 1220 K Bearing for Precision Tasks?

1220 K Bearing features a double-row design, providing excellent radial load capacity up to 15502 lbf.
Its chrome steel construction ensures durability and smooth operation in various applications.

The nylon cage in 1220 K Bearing reduces friction and noise, making it suitable for precision tasks.
With a maximum speed of 4,800 rpm, it balances performance and reliability.

1220 K Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, ensuring long service life with minimal maintenance.

Application

Key Fields for 1220 K Bearing
1220 K Bearing is commonly used in industrial fans and blowers, where its self-aligning feature compensates for minor misalignments, ensuring smooth operation. The double-row design also helps distribute radial loads evenly, extending service life.

In conveyor systems, 1220 K Bearing handles heavy loads while maintaining alignment, reducing wear on belts and rollers. Its open construction allows for easy relubrication, ideal for dusty or high-temperature environments.

For agricultural machinery like harvesters, 1220 K Bearing’s robust design withstands vibrations and shocks. The nylon cage offers quiet performance, which is beneficial in equipment requiring low noise levels.

Where Is 1220 K Bearing Used?
You’ll often find 1220 K Bearing in paper mill equipment, where its ability to handle misalignment prevents downtime. The chrome steel construction resists corrosion, even in humid conditions.

In construction machinery, 1220 K Bearing supports radial loads in mixers and cranes. Its wide temperature range ensures reliability in both hot and cold working environments.

Built for Heavy-Duty Use: 1220 K Bearing
1220 K Bearing excels in mining equipment, where its durability and load capacity are critical. The lubricated design reduces friction, even under continuous operation.

For printing presses, 1220 K Bearing’s precision ensures consistent print quality. The metric sizing makes it easy to replace in European-made machines.

Light-Duty vs Heavy-Duty: Best Uses for 1220 K Bearing
In light-duty applications like small pumps, 1220 K Bearing offers reliable performance with minimal maintenance. The nylon cage reduces weight, improving efficiency.

For heavy-duty uses like steel rolling mills, 1220 K Bearing’s high dynamic load rating handles intense pressures. Its self-aligning feature is particularly valuable in such demanding settings.
