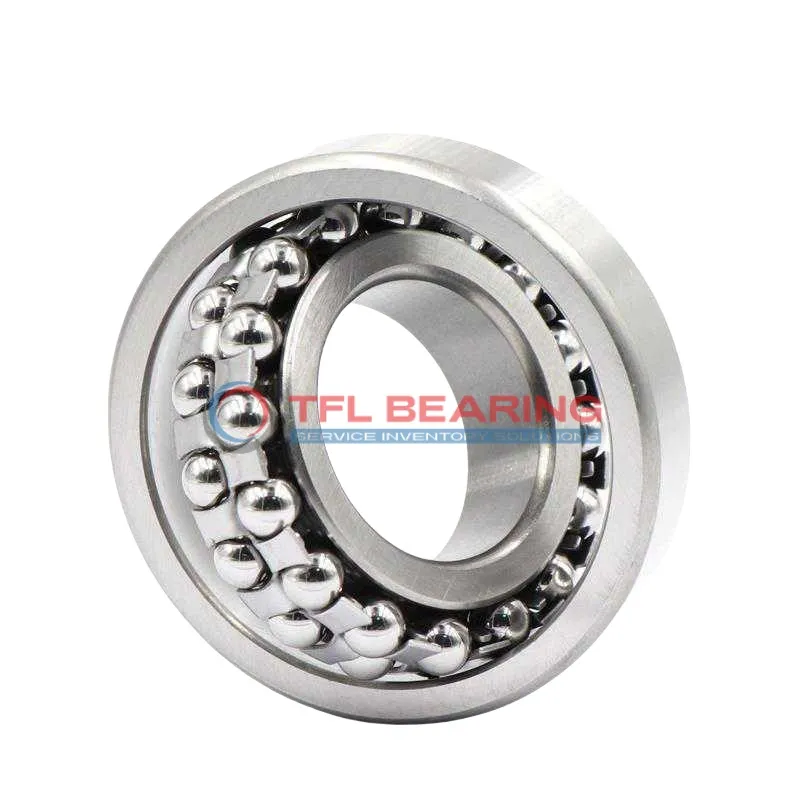

Self Aligning Ball Bearings 1215/W64

Self Aligning Ball Bearings 1215/W64

The 1215/W64 is a self-aligning ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8775 lbf and operates smoothly at speeds reaching 6700 RPM.

Its double-row design helps compensate for minor misalignments, while the open seal allows for easy lubrication. The stainless steel cage ensures durability and consistent performance.

This bearing works well in temperatures from -30°C to 110°C, making it suitable for various industrial environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 1.35kg, it’s a robust choice for machinery like conveyors or fans where radial loads and slight shaft misalignments are common. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1215/W64
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 25 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 93.05 mm
  • Internal Diameter On Outer Ring 114.2 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 8775 lbf
  • Static Radial Load 3510 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6700 rpm
  • Weight 1.35 kg
  • Price（$） 130.7
Self Aligning Ball Bearings 1215/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose 1215/W64 Bearing for Precision Tasks?

1215/W64 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.

Its dynamic radial load rating of 8775 lbf makes it suitable for demanding applications.

The stainless steel cage maintains ball alignment, reducing friction and enhancing durability.

With a maximum speed of 6,700 rpm, it offers reliable performance in precision tasks.

Application

Industrial Uses of 1215/W64 Bearing
The 1215/W64 Bearing is commonly used in industrial machinery like conveyor systems and pumps, where its double-row design handles moderate radial loads efficiently. Its open seal type allows for easy lubrication, extending service life in dusty environments.

Where Is 1215/W64 Bearing Used?
You’ll find 1215/W64 Bearing in automotive applications such as wheel hubs and transmission systems, thanks to its reliable performance under radial stress. The metric sizing ensures compatibility with a variety of vehicle designs.

Built for Heavy-Duty Use: 1215/W64 Bearing
In construction equipment, 1215/W64 Bearing supports heavy loads in machinery like cranes and excavators. The chrome steel construction provides durability, while the stainless steel cage resists wear in tough conditions.

Automotive vs Aerospace: Applications of 1215/W64 Bearing
While 1215/W64 Bearing fits well in automotive gearboxes, it’s also suitable for aerospace auxiliary systems where precision matters. Its temperature range (-30° to 110°C) covers most operational needs in both fields.

Perfect Fit for Automation: 1215/W64 Bearing
For robotic arms and automated assembly lines, 1215/W64 Bearing offers smooth rotation with minimal maintenance. The CN radial clearance ensures consistent performance in high-precision tasks.
