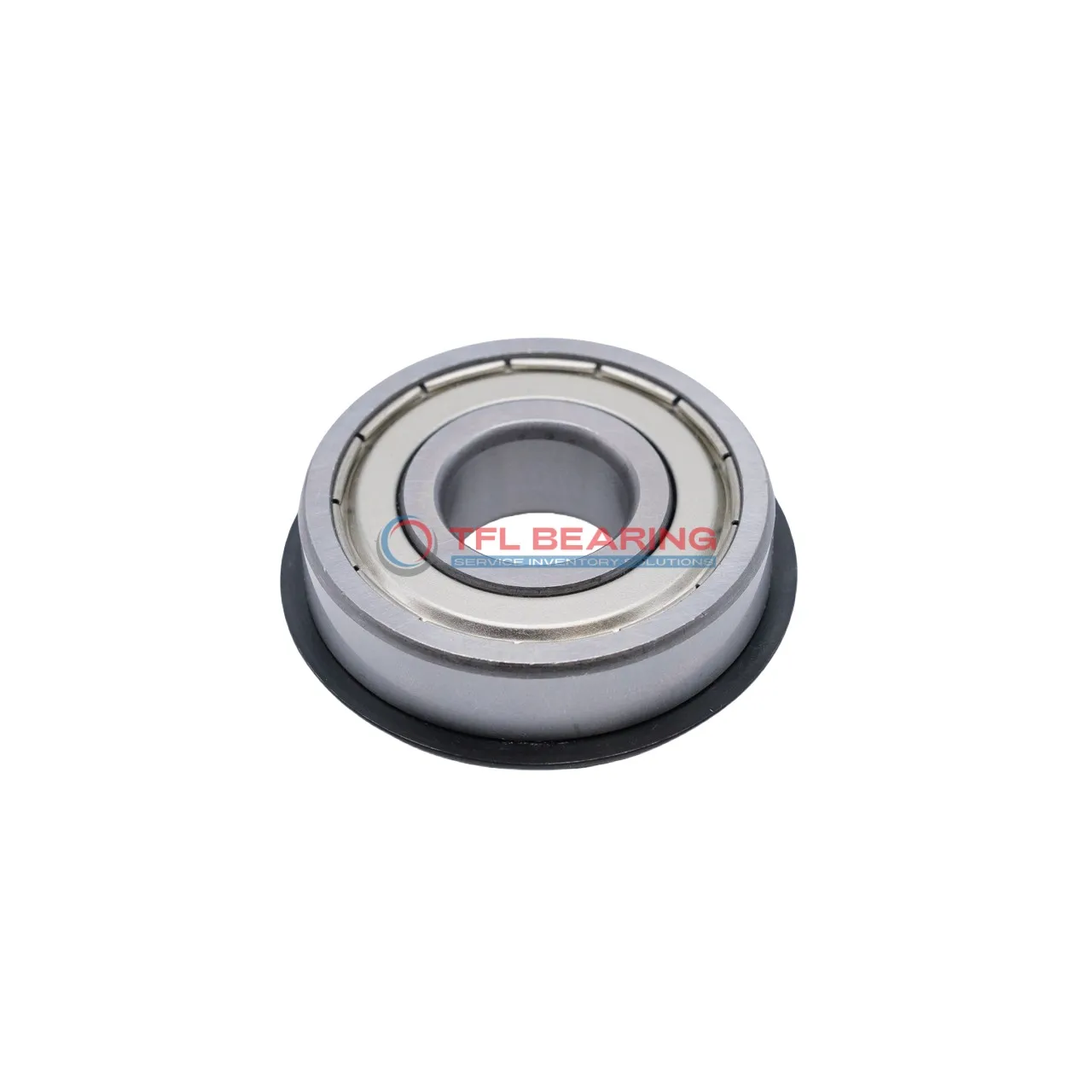

Snap Ring Groove Ball Bearings 6207-ZNRJEM

Snap Ring Groove Ball Bearings 6207-ZNRJEM

The 6207-ZNRJEM is a snap ring groove ball bearing with a 35mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 5778 lbf and operates smoothly at speeds up to 9200 RPM.

Its shielded design keeps dirt out, while the snap ring on the outer ring ensures secure fitting. The bearing performs well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing 288g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6207-ZNRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 72 mm
  • Width Of Snap Ring 1.9 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 5778 lbf
  • Static Radial Load 3462 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 9200 rpm
  • Weight 288 g
  • Price（$） 9.16
Snap Ring Groove Ball Bearings 6207-ZNRJEM dimension drawing
Download DWG Download PDF

Features

Why Choose 6207-ZNRJEM Bearing for Precision Tasks?

6207-ZNRJEM Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The snap ring groove on the outer ring provides secure mounting, reducing installation time and improving stability.
With a dynamic radial load capacity of 5778 lbf, it handles demanding conditions with ease.

6207-ZNRJEM Bearing operates efficiently at speeds up to 9,200 rpm, balancing performance and longevity.
Its ABEC 1 tolerance class ensures consistent precision for various industrial applications.

Application

Industrial Uses of 6207-ZNRJEM Bearing
6207-ZNRJEM Bearing is commonly used in conveyor systems and industrial fans, where its shielded design helps keep contaminants out. The snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

Where Is 6207-ZNRJEM Bearing Used?
In automotive applications, 6207-ZNRJEM Bearing fits well in electric motors and gearboxes, providing reliable radial load support. Its chrome steel construction offers durability under continuous use.

Perfect Fit for Automation: 6207-ZNRJEM Bearing
For robotic arms and automated machinery, 6207-ZNRJEM Bearing’s precise tolerances ensure smooth movement. The shielded seals also help extend service life by reducing dust ingress.

Medical vs Industrial: Where 6207-ZNRJEM Bearing Excels
While 6207-ZNRJEM Bearing handles industrial equipment well, it’s also found in medical devices like lab centrifuges. Its consistent performance makes it a versatile choice across sectors.

Light-Duty vs Heavy-Duty: Best Uses for 6207-ZNRJEM Bearing
From small appliances to heavy machinery, 6207-ZNRJEM Bearing adapts easily due to its balanced load capacity. The snap ring groove adds stability in both light and demanding applications.
