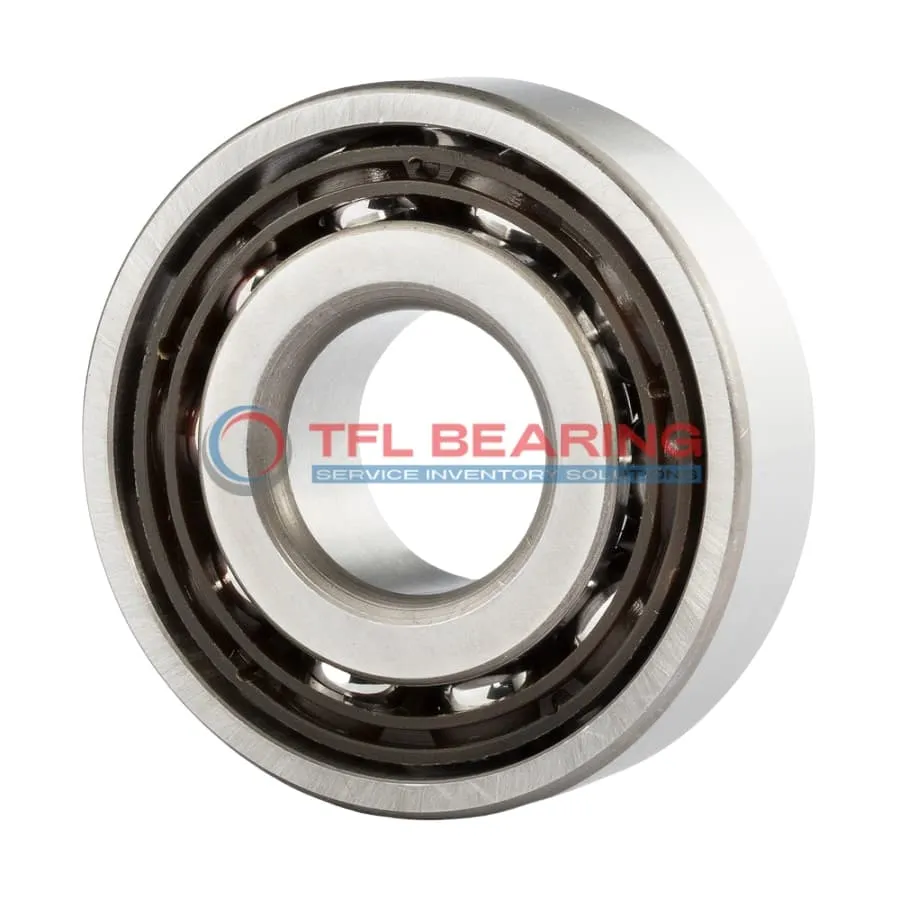

Super Precision Angular Contact Ball Bearings 7013 CEGB/P4A

Super Precision Angular Contact Ball Bearings 7013 CEGB/P4A

The 7013 CEGB/P4A is a super precision angular contact ball bearing measuring 65mm by 100mm by 18mm, crafted from durable chrome steel. It features a 15° contact angle and is designed for light preload applications.

This bearing handles radial loads up to 4568 lbf and can spin at speeds up to 31,000 RPM, making it suitable for high-performance machinery. Its open design allows for easy lubrication and maintenance.

The phenolic cage ensures smooth operation and reduces friction, while the P4A tolerance class guarantees high precision. It works well in temperatures ranging from -30°C to 110°C.

Ideal for applications requiring precise angular contact, such as machine tools or spindle drives. It can be used in matched sets of four, arranged back-to-back, face-to-face, or tandem. Weighing 0.43kg, it’s a reliable choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7013 CEGB/P4A
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 18 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 8.731 mm
  • Ball Qty 25
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement No
  • Number Of Bearings In Matched Set 4
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Light / Class B
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 4568 lbf
  • Static Radial Load 3510 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 31000 rpm
  • Weight 0.43 kg
Super Precision Angular Contact Ball Bearings 7013 CEGB/P4A dimension drawing
Download DWG Download PDF

Features

Performance Features of 7013 CEGB/P4A Bearing

7013 CEGB/P4A Bearing is crafted with chrome steel rings and balls, offering excellent resistance to angular contact loads.
Its dynamic radial load capacity reaches 4568 lbf, ensuring reliable performance in precision applications.

The phenolic cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 31,000 rpm, it delivers smooth operation for high-speed tasks.

7013 CEGB/P4A Bearing operates efficiently in temperatures ranging from -30°C to 110°C.
Its open design allows for easy lubrication, ensuring consistent performance over time.

The light preload and P4A tolerance class ensure precise alignment and reduced vibration.
This makes 7013 CEGB/P4A Bearing suitable for demanding industrial and mechanical applications.

Application

Key Fields for 7013 CEGB/P4A Bearing
7013 CEGB/P4A Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The open seal type allows for efficient lubrication, extending its service life in demanding industrial settings.

In robotics, 7013 CEGB/P4A Bearing provides smooth motion control for articulated arms, thanks to its light preload and phenolic cage. Its metric dimensions make it a versatile choice for automated systems across various industries.

For medical imaging devices, 7013 CEGB/P4A Bearing’s chrome steel construction offers reliable performance under radial loads. The P4A tolerance class ensures minimal vibration, which is critical for maintaining image clarity in sensitive equipment.

Automotive applications like electric motor shafts benefit from 7013 CEGB/P4A Bearing’s high-speed capability and angular contact design. Its compatibility with SKF models simplifies maintenance and replacement in vehicle manufacturing.

In consumer electronics, 7013 CEGB/P4A Bearing can be found in precision printers, where its low friction and stable operation contribute to consistent print quality. The temperature range also makes it suitable for prolonged use in office environments.
