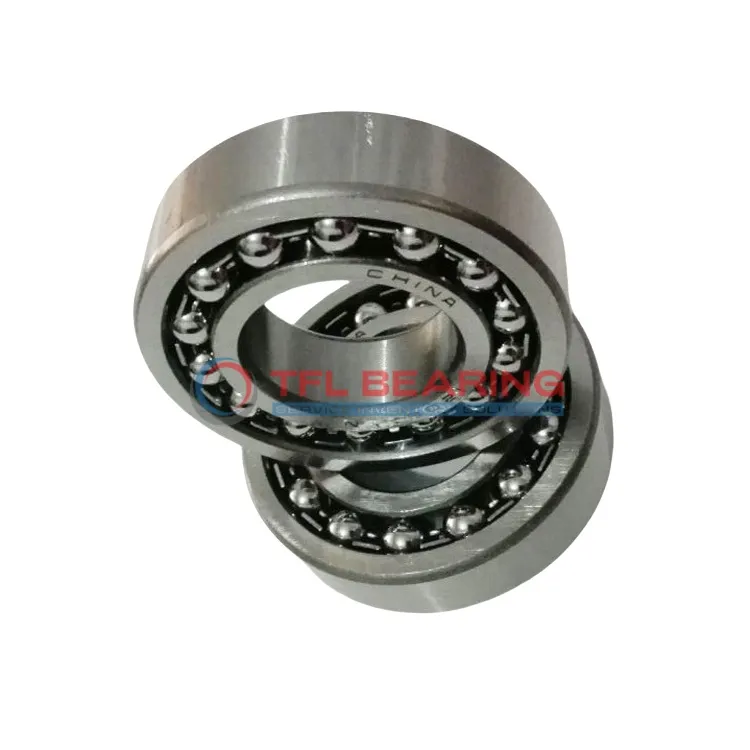

Self Aligning Ball Bearings 1215/C3

Self Aligning Ball Bearings 1215/C3

The 1215/C3 is a self-aligning ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 8775 lbf and operates smoothly at speeds up to 6700 RPM.

Its double-row design and open seal make it easy to maintain, while the stainless steel cage ensures durability. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 1.35kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1215/C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 25 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 93.05 mm
  • Internal Diameter On Outer Ring 114.2 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 8775 lbf
  • Static Radial Load 3510 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6700 rpm
  • Weight 1.35 kg
  • Price（$） 86.9
Self Aligning Ball Bearings 1215/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 1215/C3 Bearing

1215/C3 Bearing is designed with double-row chrome steel balls, offering strong radial load capacity up to 8775 lbf.
Its stainless steel cage ensures smooth operation and reduces friction during high-speed rotation.

The C3 radial clearance allows for thermal expansion, making it suitable for varying operating conditions.
With a maximum speed of 6,700 rpm, it maintains reliable performance in demanding applications.

1215/C3 Bearing works well in temperatures ranging from -30° to 110°C, adapting to different environments.
Its open design simplifies lubrication, ensuring consistent performance over time.

Application

Common Applications of 1215/C3 Bearing
In industrial settings, 1215/C3 Bearing is commonly used in conveyor systems and fans, where its self-aligning feature helps compensate for minor misalignments. The double-row design provides reliable radial load support in demanding environments.

Where Is 1215/C3 Bearing Used?
You’ll often find 1215/C3 Bearing in automotive applications like electric motors and pumps, where its chrome steel construction ensures long-lasting performance. The C3 radial clearance allows for thermal expansion in high-temperature conditions.

Built for Heavy-Duty Use: 1215/C3 Bearing
This bearing excels in agricultural machinery, such as harvesters and tractors, thanks to its robust design. The stainless steel cage adds durability, making it suitable for dusty or humid conditions.

Industrial vs Agricultural: 1215/C3 Bearing in Action
While 1215/C3 Bearing performs well in factory equipment like gearboxes, it’s equally effective in farm machinery. Its metric sizing and open design make it versatile for various load requirements.

Perfect Fit for Automation: 1215/C3 Bearing
In robotic arms and assembly lines, 1215/C3 Bearing offers smooth rotation with minimal maintenance. The lubricated design ensures consistent performance even during prolonged use.
