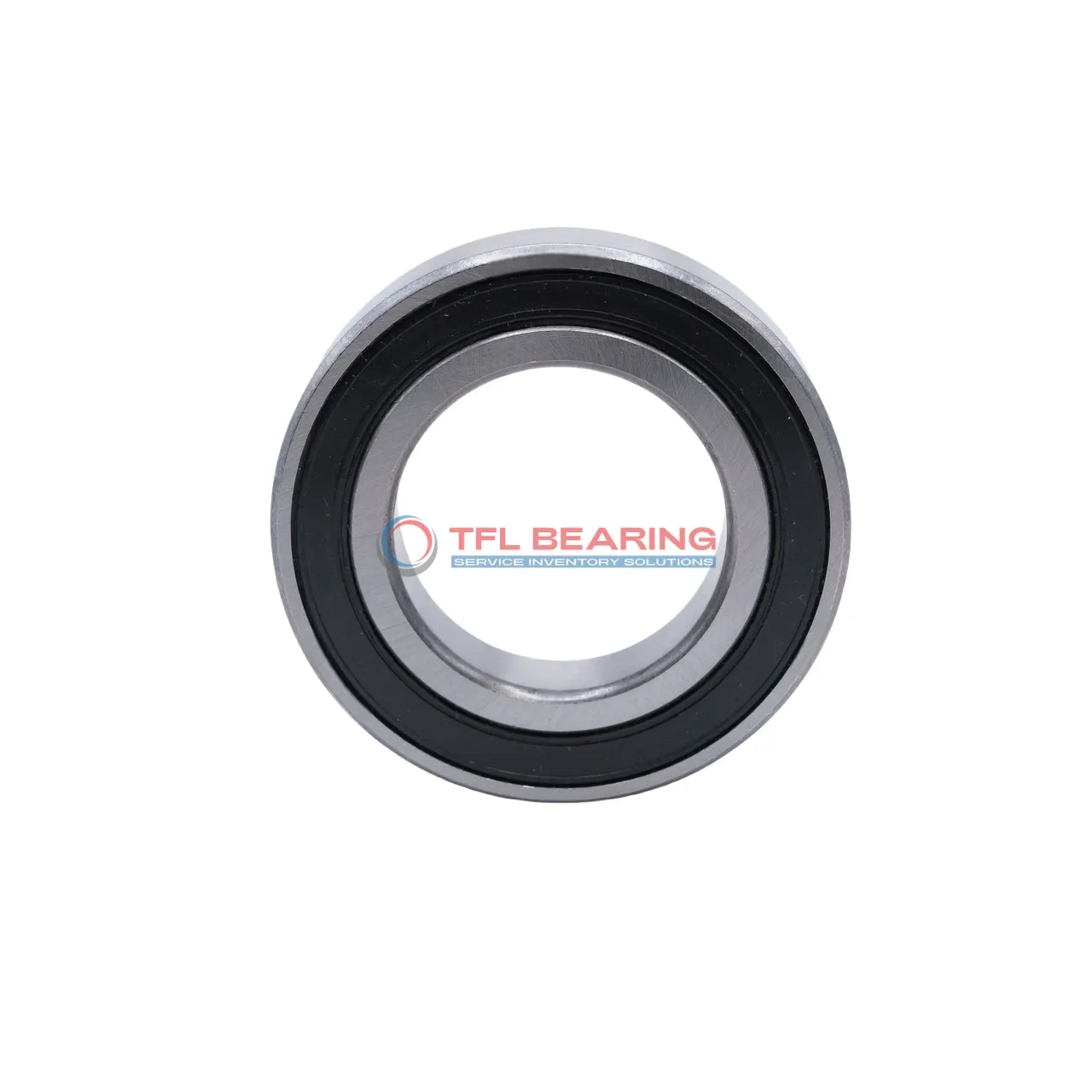

Single Row Deep Groove Ball Bearings 6308-2RS1/C2ELHT23

Single Row Deep Groove Ball Bearings 6308-2RS1/C2ELHT23

The 6308-2RS1/C2ELHT23 is a single-row deep groove ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 915 lbf and operates smoothly at speeds up to 7500 RPM.

Its sealed design keeps dirt out and lubrication in, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or conveyor systems where radial loads are common.

Weighing 620g, it offers a good balance of strength and size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6308-2RS1/C2ELHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 915 lbf
  • Static Radial Load 5395 lbf
  • Max Speed 7500 rpm
  • Weight 620 g
Single Row Deep Groove Ball Bearings 6308-2RS1/C2ELHT23 dimension drawing
Download DWG Download PDF

Features

How Does 6308-2RS1/C2ELHT23 Bearing Reduce Friction?

6308-2RS1/C2ELHT23 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The sealed construction keeps contaminants out, ensuring consistent performance in various environments.

Chrome steel rings and balls in 6308-2RS1/C2ELHT23 Bearing reduce friction, enhancing efficiency and longevity.
Its C2 radial clearance allows for thermal expansion, maintaining smooth operation under load.

6308-2RS1/C2ELHT23 Bearing operates efficiently within a temperature range of -30°C to 120°C.
The sealed design also minimises maintenance needs, making it a practical choice for long-term use.

With a dynamic radial load capacity of 915 lbf, 6308-2RS1/C2ELHT23 Bearing handles demanding applications reliably.
Its maximum speed of 7,500 rpm ensures versatility across different operational conditions.

Application

Industrial Uses of 6308-2RS1/C2ELHT23 Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

How Does 6308-2RS1/C2ELHT23 Bearing Improve Performance?
In automotive applications, it supports smooth rotation in components such as alternators and fans. Its C2 radial clearance provides reliable performance under varying thermal conditions.

Perfect Fit for Automation: 6308-2RS1/C2ELHT23 Bearing
It works well in robotic arms and conveyor systems, thanks to its balanced load capacity and sealed protection. The metric sizing makes it easy to integrate into various equipment designs.

Medical vs Industrial: Where 6308-2RS1/C2ELHT23 Bearing Excels
While suitable for industrial gear, it also fits medical devices like centrifuges due to its precise tolerances. The temperature range ensures stability in both sterile and high-use settings.
