Self Aligning Ball Bearings 1210 EKTN9/C3W64

Self Aligning Ball Bearings 1210 EKTN9/C3W64

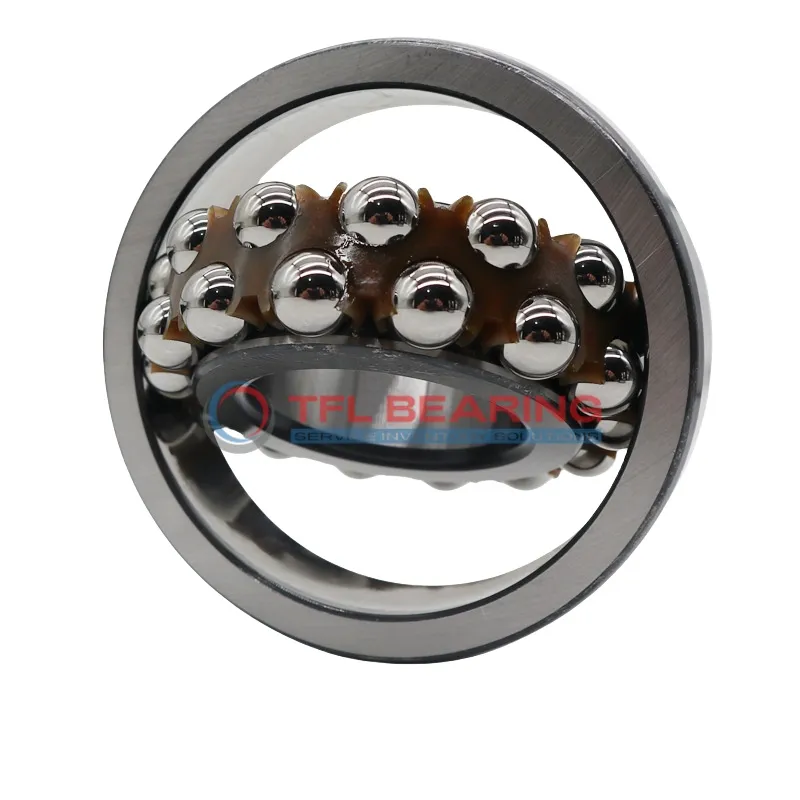

The 1210 EKTN9/C3W3 is a self-aligning ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5962 lbf and operates smoothly at speeds reaching 10,000 RPM.

Its double-row design and open seal allow for easy lubrication, while the nylon cage reduces friction for quieter performance. The bearing can handle temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. It’s well-suited for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.53kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards, it ensures safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1210 EKTN9/C3W64
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 61.7 mm
  • Internal Diameter On Outer Ring 78.1 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5962 lbf
  • Static Radial Load 2059 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 0.53 kg
Self Aligning Ball Bearings 1210 EKTN9/C3W64 dimension drawing
Download DWG Download PDF

Features

How Does 1210 EKTN9/C3W64 Bearing Reduce Friction?

1210 EKTN9/C3W64 Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
The nylon cage minimises friction and noise, making it ideal for high-speed applications up to 10,000 rpm.

Its C3 radial clearance allows for better thermal expansion handling, maintaining performance in varying temperatures.
The tapered bore design ensures secure fitting, reducing slippage and wear.

With a dynamic radial load capacity of 5962 lbf, it offers reliable operation under heavy loads.
The lubricated design further enhances its efficiency and longevity.

Application

Industrial Uses of 1210 EKTN9/C3W64 Bearing
1210 EKTN9/C3W64 Bearing is commonly used in industrial machinery like conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The double-row design provides added stability, making it suitable for heavy loads.

In automotive applications, 1210 EKTN9/C3W64 Bearing works well in gearboxes and drivetrains, handling radial loads efficiently. Its tapered bore ensures a secure fit, reducing slippage during operation.

For automation equipment, 1210 EKTN9/C3W64 Bearing’s nylon cage reduces friction, enhancing performance in robotic arms. The open seal design allows for easy lubrication, extending its service life.

What Makes 1210 EKTN9/C3W64 Bearing a Preferred Choice?
1210 EKTN9/C3W64 Bearing is a reliable option for household appliances like washing machines, where its radial load capacity ensures smooth operation. The chrome steel construction offers durability in high-use scenarios.

In medical devices, 1210 EKTN9/C3W64 Bearing’s precision and low friction make it ideal for imaging equipment. The C3 radial clearance provides flexibility in varying temperature conditions.
