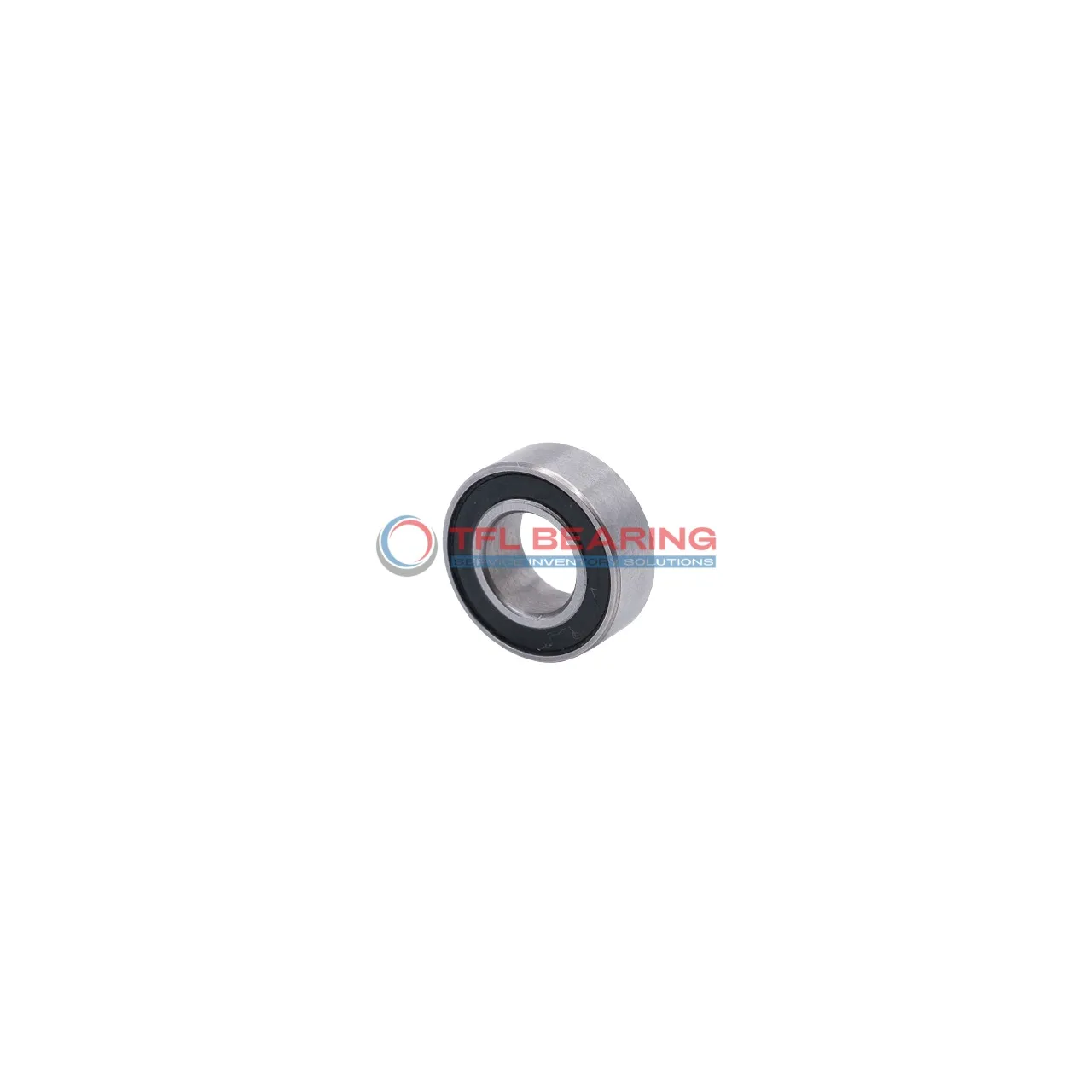

Metric Size Standard Miniature Ball Bearings SMR106 2rs

Metric Size Standard Miniature Ball Bearings SMR106 2rs

The SMR106 2rs is a compact miniature ball bearing with a 6mm bore and 10mm outer diameter, crafted entirely from stainless steel for durability. Its sealed design keeps out dust and dirt, making it low-maintenance for small applications.

With a dynamic radial load capacity of 86 lbf, it handles light to moderate loads smoothly. The bearing spins efficiently at speeds up to 40,500 RPM, suitable for fast-moving parts.

The nitrile rubber seals provide reliable protection, while the stainless steel cage ensures long service life. Its small size (3mm width) and lightweight (0.7g) make it ideal for tight spaces.

Perfect for small machinery, hobby projects, or precision instruments where space and reliability matter. Compliant with RoHS and REACH standards for safe use in various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SMR106 2rs
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 10 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 10
  • Ball Dia 1.2000 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Sealed
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Shield Material Nitrile Rubber
  • Dynamic Radial Load 86 lbf
  • Static Radial Load 35 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 40500 rpm
  • Weight 0.7 g
  • Price（$） 1.242
Metric Size Standard Miniature Ball Bearings SMR106 2rs dimension drawing
Download DWG Download PDF

Features

Why Choose SMR106 2rs Bearing for Precision Tasks?

SMR106 2rs Bearing features a sealed design with stainless steel components, ensuring smooth radial load handling.
Its compact size of 6×10×3 mm makes it ideal for miniature applications where space is limited.

The ABEC1 tolerance class ensures consistent performance, while the nitrile rubber seals protect against contaminants.
With a maximum speed of 40,500 rpm, it delivers reliable operation in high-speed scenarios.

Stainless steel construction provides corrosion resistance, extending the bearing’s lifespan in various environments.
The dynamic radial load capacity of 86 lbf suits light to moderate load requirements.

Easy to install and maintain, SMR106 2rs Bearing reduces downtime in precision equipment.
Its uniform lubrication requirement ensures long-term performance without frequent servicing.

Application

Common Applications of SMR106 2rs Bearing
SMR106 2rs Bearing is widely used in small electric motors, such as those found in cooling fans or power tools, where its compact size and sealed design prevent dust ingress. The stainless steel construction ensures longevity even in humid conditions.

In consumer electronics, SMR106 2rs Bearing provides smooth rotation for devices like printers or handheld gadgets. Its low friction and ABEC1 tolerance make it suitable for precision movements.

For medical devices, SMR106 2rs Bearing’s sealed feature maintains hygiene in equipment like dental handpieces. The nitrile rubber shields add extra protection against contaminants.

Automotive applications include small actuators or dashboard components, where SMR106 2rs Bearing’s reliability supports frequent use. The metric sizing ensures easy integration into various vehicle systems.

In robotics, SMR106 2rs Bearing is ideal for lightweight joints or grippers, offering quiet operation. Its high-speed capability (40,500 rpm) suits dynamic automation tasks.
