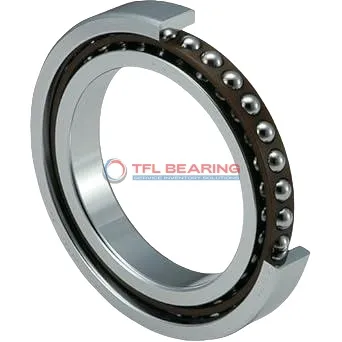

Super Precision Angular Contact Ball Bearings 7201 CD/HCP4ADGA

Brand: TFL Bearing Interchangeable: SKF 7201 CD/HCP4ADGA 12 mm × 32 mm × 20 mm Metric Open
Part number: 7201 CD/HCP4ADGA
Super Precision Angular Contact Ball Bearings 7201 CD/HCP4ADGA
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia12 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia32 mm
Outer Dia Tolerance-0.004mm to 0
Width20 mm
Width Tolerance-0.2mm to 0
Ball Dia5.556 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load2,151 lbf
Static Radial Load1,148 lbf
Temperature Range- 30°C to 110 °C
Max Speed95,000 rpm
Characteristics
Ball Qty10
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.066 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7201 CD/HCP4ADGA is a super precision angular contact ball bearing measuring 12mm by 32mm by 20mm, crafted from chrome steel with ceramic balls for enhanced performance. It handles radial loads up to 2151 lbf and reaches speeds of 95,000 RPM, making it suitable for high-speed applications.

Its open design and phenolic cage ensure smooth operation, while the 15° contact angle provides stability under angular loads. The bearing comes pre-lubricated and operates efficiently in temperatures from -30°C to 110°C.

This model is part of a matched set of two, allowing for universal mounting configurations like back-to-back or face-to-face. Ideal for precision machinery, spindles, or tooling systems where accuracy and speed are crucial.

Weighing just 0.066kg, it’s lightweight yet robust, and interchangeable with SKF bearings for easy replacement. Compliant with P4A tolerance class for high-precision requirements.

Features

Performance Features of 7201 CD/HCP4ADGA Bearing

7201 CD/HCP4ADGA Bearing is crafted with chrome steel rings and ceramic balls, ensuring high precision and durability.
Its 15° contact angle allows for efficient handling of combined radial and axial loads.

The phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a dynamic radial load capacity of 2151 lbf, it excels in demanding applications.

7201 CD/HCP4ADGA Bearing operates smoothly at speeds up to 95,000 rpm, thanks to its advanced design.
The extra light preload ensures minimal vibration and noise during operation.

Its universal matching capability allows for flexible installation in various configurations.
The temperature range of -30°C to 110°C ensures reliable performance in diverse environments.

Application

Key Fields for 7201 CD/HCP4ADGA Bearing
7201 CD/HCP4ADGA Bearing is widely used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it ideal for applications demanding smooth operation.

In robotics, 7201 CD/HCP4ADGA Bearing supports articulated arms, providing stability and load handling in dynamic movements. Its universal matching feature allows flexible arrangement in tight spaces.

For medical imaging devices, 7201 CD/HCP4ADGA Bearing’s phenolic cage offers quiet performance, crucial for noise-sensitive environments. The P4A tolerance class guarantees consistent reliability in critical diagnostics.

Automotive applications like electric vehicle motors benefit from 7201 CD/HCP4ADGA Bearing’s high-speed capability and low heat generation. The extra-light preload ensures efficient energy transfer in compact designs.
