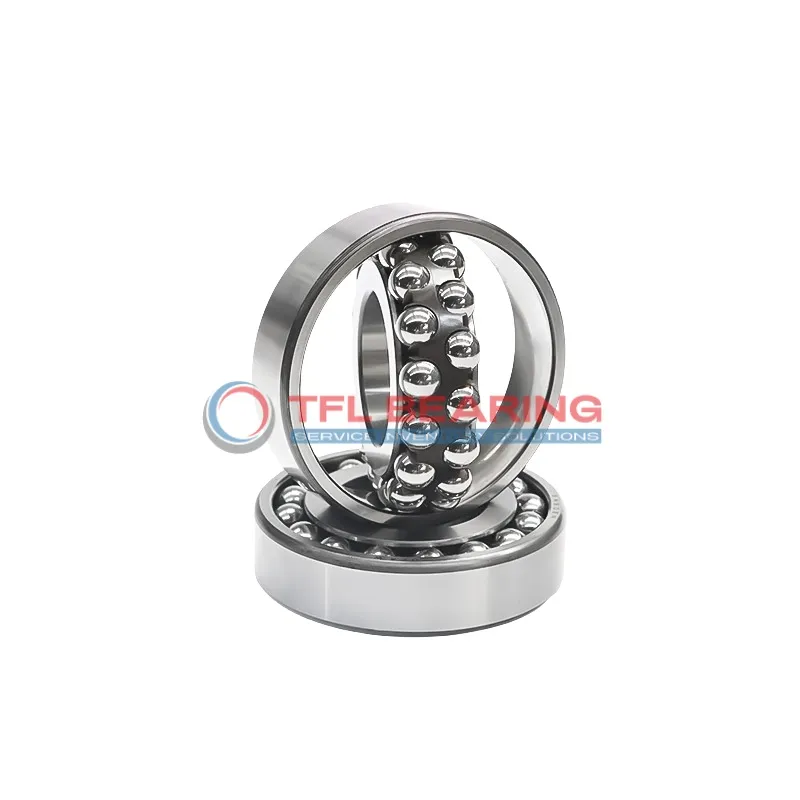

Self Aligning Ball Bearings 1209-TVH

Self Aligning Ball Bearings 1209-TVH

The 1209-TVH is a self-aligning ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5152 lbf and operates smoothly at speeds reaching 11,000 RPM.

Its double-row design and open seal allow for easy lubrication and alignment adjustments, while the nylon cage reduces friction. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery where misalignment or radial loads are common, such as conveyor systems or agricultural equipment.

Weighing 0.47kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1209-TVH
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 57.51 mm
  • Internal Diameter On Outer Ring 72.5 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5152 lbf
  • Static Radial Load 1755 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 0.47 kg
  • Price（$） 33.19
Self Aligning Ball Bearings 1209-TVH dimension drawing
Download DWG Download PDF

Features

Why Choose 1209-TVH Bearing for Precision Tasks?

1209-TVH Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 5152 lbf makes it suitable for high-performance applications.

The nylon cage in 1209-TVH Bearing reduces friction and noise, enhancing operational smoothness.
With a maximum speed of 11,000 rpm, it delivers both speed and reliability.

1209-TVH Bearing operates efficiently in temperatures from -30° to 110°C, adapting to various environments.
Its open seal design allows for easy lubrication, ensuring long-term performance.

The cylindrical bore of 1209-TVH Bearing simplifies installation, saving time and effort.
Its compact size (45 mm×85 mm×19 mm) makes it ideal for space-constrained applications.

Application

Industrial Uses of 1209-TVH Bearing
1209-TVH Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design also helps distribute radial loads evenly, making it suitable for heavy-duty applications.

What Makes 1209-TVH Bearing a Preferred Choice?
In automotive applications like gearboxes, 1209-TVH Bearing’s nylon cage reduces friction and noise. Its metric sizing ensures compatibility with a variety of vehicle designs, offering reliable performance.

Built for Heavy-Duty Use: 1209-TVH Bearing
This bearing excels in industrial fans, handling high speeds with its lubricated design. The chrome steel construction ensures durability even in demanding environments.

Medical vs Industrial: Where 1209-TVH Bearing Excels
While not typically used in medical devices, 1209-TVH Bearing is ideal for industrial machinery like pumps. Its radial load capacity and temperature range make it versatile for various settings.

Perfect Fit for Automation: 1209-TVH Bearing
In robotic arms, 1209-TVH Bearing’s self-aligning capability ensures smooth movement. The open seal type allows for easy lubrication, maintaining performance over time.
