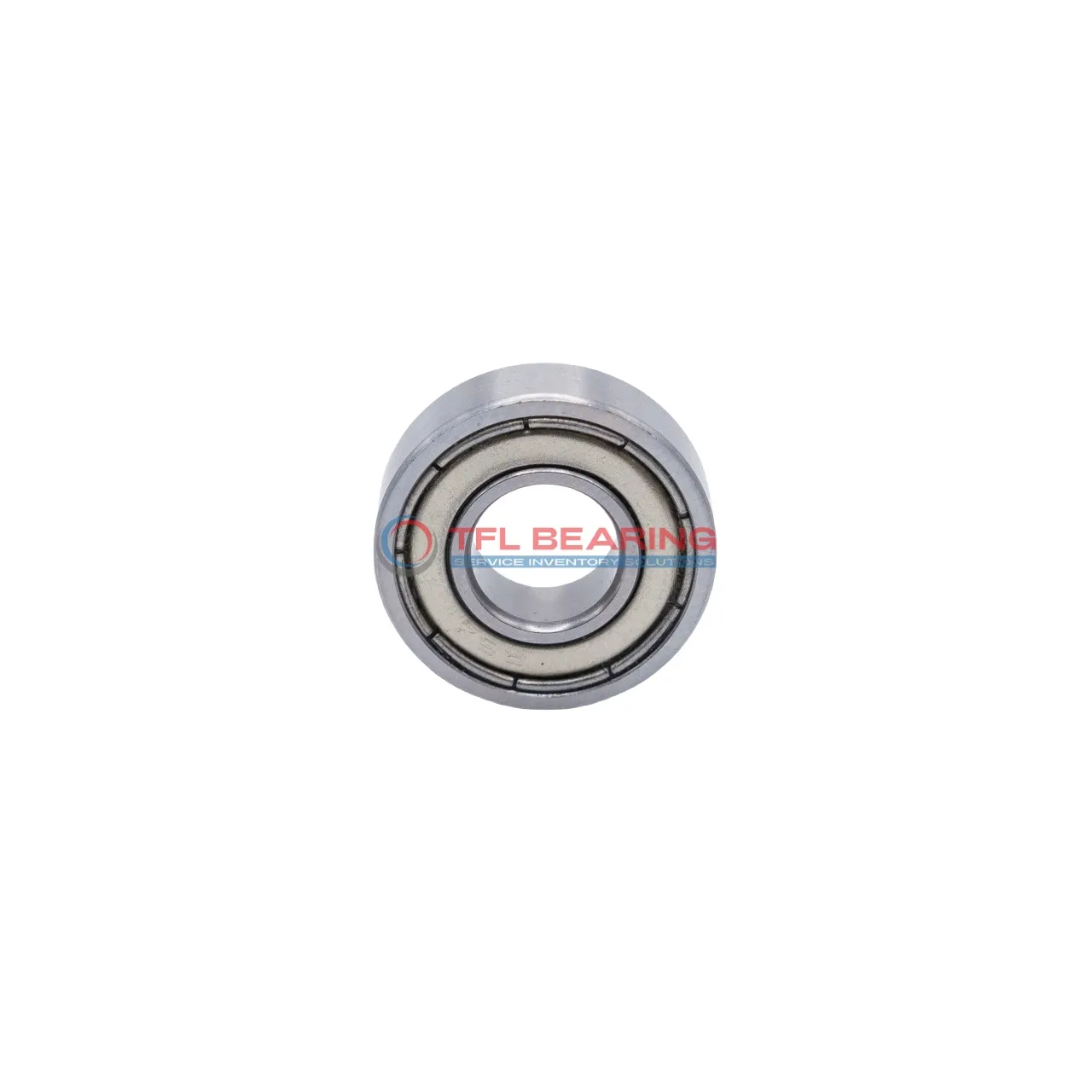

Stainless Steel Deep Groove Ball Bearings W 602 X-2ZS

Stainless Steel Deep Groove Ball Bearings W 602 X-2ZS

The W 602 X-2ZS is a compact stainless steel deep groove ball bearing, measuring just 2mm by 7mm by 3mm. It handles radial loads up to 50 lbf and spins smoothly at speeds up to 80,000 RPM.

Its shielded design keeps out dust and debris, while the stainless steel construction resists corrosion. The bearing comes pre-lubricated with grease for easy maintenance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for small devices like medical instruments or precision tools where space is limited.

Weighing only 0.000511kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 602 X-2ZS
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 2 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 7 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3 mm
  • Width Tolerance -0.04mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 50 lbf
  • Static Radial Load 15 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 80000 rpm
  • Weight 0.000511 kg
Stainless Steel Deep Groove Ball Bearings W 602 X-2ZS dimension drawing
Download DWG Download PDF

Features

How Does W 602 X-2ZS Bearing Reduce Friction?

W 602 X-2ZS Bearing features stainless steel construction, ensuring smooth operation with minimal friction.

Its shielded design protects against contaminants, maintaining consistent performance over time.

The single-row deep groove design allows for efficient radial load handling, up to 50 lbf.

With a maximum speed of 80,000 rpm, it is suitable for high-speed applications.

Application

Common Applications of W 602 X-2ZS Bearing
W 602 X-2ZS Bearing is widely used in small electric motors, such as those found in cooling fans or miniature appliances. Its compact size and stainless steel construction make it suitable for environments where corrosion resistance is important.

In medical devices, W 602 X-2ZS Bearing ensures smooth operation in delicate instruments like dental tools or blood analyzers. The shielded design helps keep contaminants out, maintaining hygiene and reliability.

For consumer electronics, W 602 X-2ZS Bearing is often found in devices like computer hard drives or small printers. Its high-speed capability and low noise make it a practical choice for everyday gadgets.

Automation systems benefit from W 602 X-2ZS Bearing in compact robotic arms or precision sensors. The grease lubrication ensures long-lasting performance with minimal maintenance required.
