Self Aligning Ball Bearings 1201KJ

Brand: TFL Bearing Interchangeable: SKF 1201KJ 12 mm × 32 mm × 10 mm Metric Open
Part number: 1201KJ
Self Aligning Ball Bearings 1201KJ
In Stock
US$18.01 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia12 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia32 mm
Outer Dia Tolerance-0.011mm to 0
Width10 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring18.2 mm
Internal Diameter On Outer Ring25.7 mm
Chamfer Dimension0.6 mm
Performance
Dynamic Radial Load1,404 lbf
Static Radial Load322 lbf
Temperature Range-30° to 110 °C
Max Speed32,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.04 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

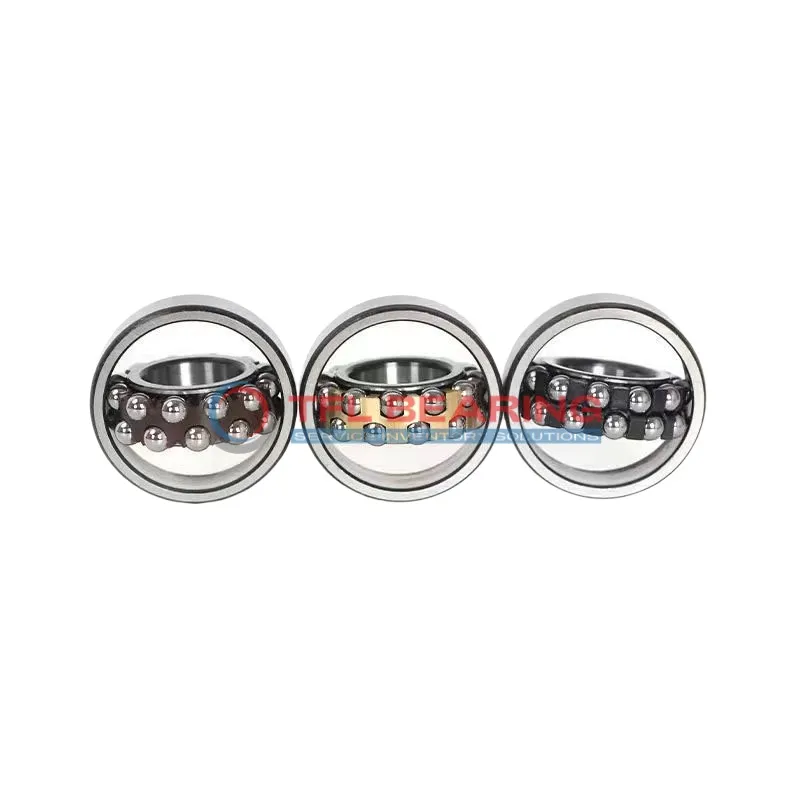

The 1201KJ is a self-aligning ball bearing with a 12mm tapered bore and 32mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 1404 lbf and operates smoothly at speeds up to 32,000 RPM.

Its double-row design allows slight misalignment, reducing stress on the bearing. The open seal type makes lubrication straightforward, while the steel cage enhances durability.

This model suits applications where alignment flexibility is key, such as conveyor systems or agricultural machinery. It works in temperatures from -30°C to 110°C.

Weighing only 0.04kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, especially as it’s interchangeable with SKF bearings.

Features

Why Choose 1201KJ Bearing for Precision Tasks?

1201KJ Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 1404 lbf makes it suitable for high-performance applications.
The steel cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 32,000 rpm, it delivers smooth and efficient operation.

Application

Industrial Uses of 1201KJ Bearing
1201KJ Bearing is commonly used in conveyor systems and material handling equipment, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance even under varying radial loads.

Where Is 1201KJ Bearing Used?
In automotive applications, 1201KJ Bearing fits well in steering columns and suspension systems, thanks to its tapered bore for secure mounting. The chrome steel construction offers durability in high-vibration environments.

Perfect Fit for Automation: 1201KJ Bearing
For robotic arms and automated machinery, 1201KJ Bearing provides smooth rotation with minimal maintenance. Its open seal type allows for easy lubrication, extending service life in continuous operation.

Medical vs Industrial: Where 1201KJ Bearing Excels
While 1201KJ Bearing handles industrial loads like pumps and fans, it also suits precision medical devices such as dental drills. The steel cage ensures reliable performance in both high-speed and sterile environments.

Essential Roles of 1201KJ Bearing
In household appliances like washing machines, 1201KJ Bearing reduces noise and vibration during spin cycles. The metric sizing makes it a versatile choice for various European and Asian appliance brands.
