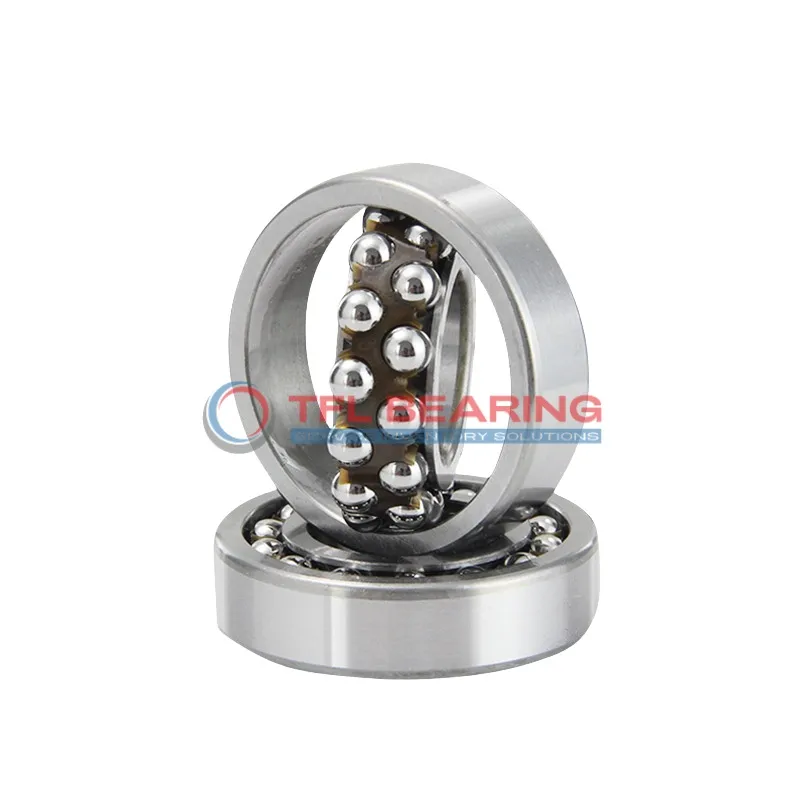

Self Aligning Ball Bearings 11209-TVH

Brand: TFL Bearing Interchangeable: SKF 11209-TVH 45 mm × 85 mm × 58 mm Metric Open
Part number: 11209-TVH
Self Aligning Ball Bearings 11209-TVH
In Stock
US$82.34 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia45 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia85 mm
Outer Dia Tolerance-0.015mm to 0
Width58 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring57.7 mm
Internal Diameter On Outer Ring72.5 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load5,152 lbf
Static Radial Load1,755 lbf
Temperature Range-30° to 110 °C
Max Speed4,500 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.77 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 11209-TVH is a self-aligning ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5152 lbf and runs smoothly at speeds up to 4500 RPM.

Its double-row design and open seal type make it adaptable to slight misalignments, while the nylon cage reduces friction for quieter operation. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Suitable for applications like conveyor systems or agricultural machinery where alignment flexibility is needed.

Weighing 0.77kg, it’s a robust choice for medium-duty tasks. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Why Choose 11209-TVH Bearing for Precision Tasks?

11209-TVH Bearing features a double-row ball design, offering precise radial load handling with a capacity of 5152 lbf.
Its chrome steel rings and balls ensure durability, while the nylon cage reduces friction for smoother operation.

The bearing’s cylindrical bore and open seal design simplify installation and maintenance.
With a maximum speed of 4,500 rpm, it balances performance and reliability in various applications.

11209-TVH Bearing operates efficiently in temperatures from -30° to 110°C, making it versatile for different environments.
Its compliant RoHS and REACH status ensures it meets international environmental standards.

Application

Common Applications of 11209-TVH Bearing
In industrial settings, 11209-TVH Bearing is widely used in conveyor systems and heavy machinery, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads, even in demanding environments.

Automotive Uses of 11209-TVH Bearing
For vehicle components like wheel hubs and transmissions, 11209-TVH Bearing offers durability and smooth operation. Its metric dimensions make it a versatile choice for various automotive applications.

Why Is 11209-TVH Bearing Essential in Robotics?
In robotic arms and automated systems, 11209-TVH Bearing provides precise movement and reduces friction. The nylon cage enhances its performance in high-speed operations, ensuring long service life.

Built for Versatility: 11209-TVH Bearing
From agricultural equipment to printing machines, 11209-TVH Bearing adapts to diverse applications. Its chrome steel construction and lubricated design make it suitable for both light and heavy-duty tasks.

Medical vs Industrial: Where 11209-TVH Bearing Excels
While 11209-TVH Bearing is common in industrial gear, its precision also benefits medical devices like diagnostic equipment. The consistent performance and low maintenance make it a reliable choice across sectors.
