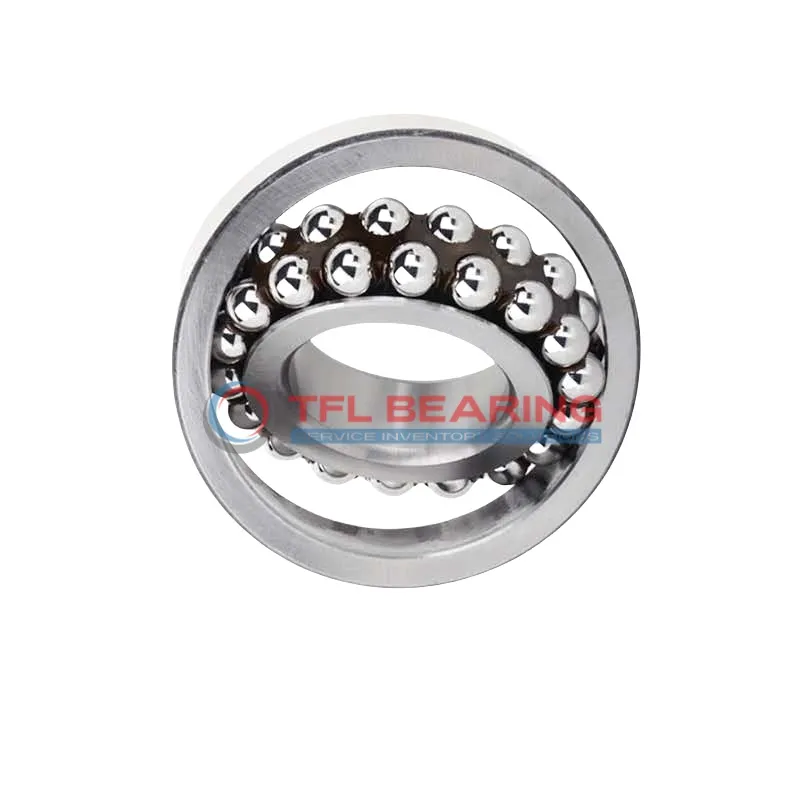

Self Aligning Ball Bearings 11208-TVH

Brand: TFL Bearing Interchangeable: SKF 11208-TVH 40 mm × 80 mm × 56 mm Metric Open
Part number: 11208-TVH
Self Aligning Ball Bearings 11208-TVH
In Stock
US$27.29 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia40 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia80 mm
Outer Dia Tolerance-0.013mm to 0
Width56 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring54 mm
Internal Diameter On Outer Ring67.5 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load4,275 lbf
Static Radial Load1,474 lbf
Temperature Range-30° to 110 °C
Max Speed5,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.72 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 11208-TVH is a self-aligning ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel for durability. Its double-row design handles radial loads up to 4275 lbf and runs smoothly at speeds up to 5000 RPM.

The nylon cage reduces friction and noise, while the open seal allows for easy lubrication. It operates reliably in temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 0.72kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Features

How Does 11208-TVH Bearing Reduce Friction?

11208-TVH Bearing features a double-row ball design, which helps distribute radial loads evenly for smoother operation.
The chrome steel construction ensures durability while maintaining low friction during use.

With a dynamic radial load capacity of 4275 lbf, it handles demanding applications without compromising performance.
Its nylon cage keeps the balls aligned, reducing wear and extending the bearing’s lifespan.

The open seal design allows for easy lubrication, ensuring consistent performance over time.
Operating at speeds up to 5,000 rpm, it balances efficiency and reliability in various conditions.

Application

Industrial Uses of 11208-TVH Bearing
11208-TVH Bearing is commonly used in industrial machinery like conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The double-row design provides added stability, making it suitable for heavy radial loads.

In automotive applications, 11208-TVH Bearing can be found in gearboxes and wheel hubs, ensuring smooth rotation even under varying loads. Its nylon cage reduces friction, enhancing overall efficiency.

For automation equipment, 11208-TVH Bearing supports robotic arms and assembly lines, where precision and durability are key. The open seal design allows for easy lubrication, extending its service life.

Where to Use 11208-TVH Bearing
11208-TVH Bearing works well in household appliances like washing machines, handling unbalanced loads with ease. The chrome steel construction ensures long-lasting performance in everyday use.

Medical vs Industrial: Where 11208-TVH Bearing Excels
In medical devices, 11208-TVH Bearing is used in imaging equipment, offering quiet operation and reliability. Its industrial strength also makes it ideal for heavy machinery, balancing versatility and durability.
