Needle Roller Thrust Bearings (Cages) AXW25

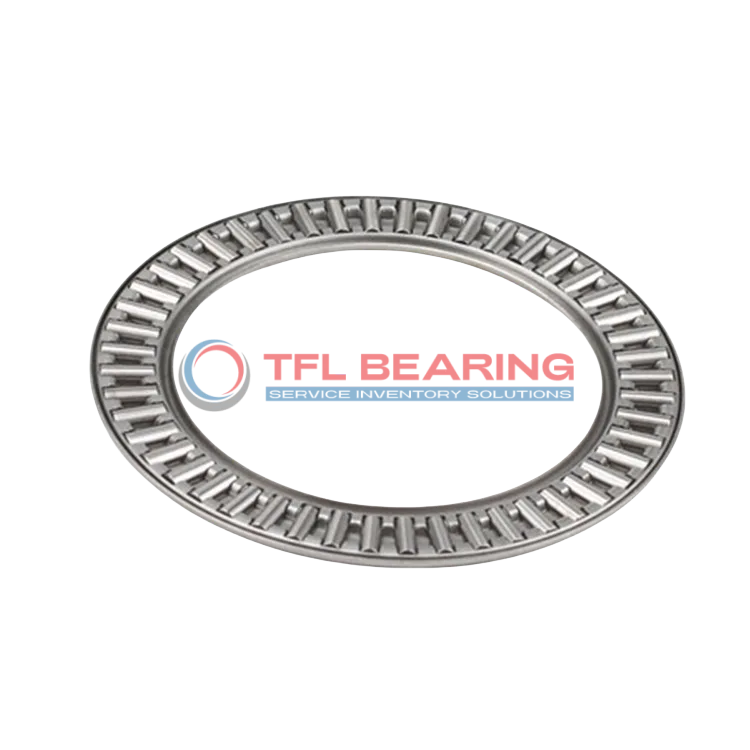

Needle Roller Thrust Bearings (Cages) AXW25

The AXW25 is a needle roller thrust bearing cage with a 25mm bore and 45mm outer diameter, crafted from sturdy steel for reliable performance. It supports dynamic thrust loads up to 3308 lbf and operates smoothly at speeds reaching 8400 RPM.
Its steel cage and needle rollers ensure durability, while the ABEC-1 rating provides consistent precision. Regular lubrication is needed to maintain optimal performance in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. It’s well-suited for applications like gear pumps or automotive systems where space is limited but high thrust capacity is required.
Compliant with RoHS standards, it’s a safe and dependable option for industrial use. The compact 3.2mm width makes it ideal for slim designs without sacrificing strength.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AXW25
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 25 mm
  • Outer Dia 45 mm
  • Width 3.2 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Cages
  • For Load Direction Thrust
  • Series AXW
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Thrust Load 3308 lbf
  • Static Thrust Load 13050 lbf
  • Max Speed 8400 rpm
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • Allocated Axial Bearing Washer AS2542
Needle Roller Thrust Bearings (Cages) AXW25 dimension drawing
Download DWG Download PDF

Features

Why Choose AXW25 Bearing for Precision Tasks?
AXW25 Bearing features a steel cage and needle rollers, designed to handle high thrust loads with precision.
Its dynamic thrust load capacity of 3308 lbf ensures reliable performance in demanding applications.
The compact width of 3.2 mm makes AXW25 Bearing suitable for space-constrained installations.
With a maximum speed of 8400 rpm, it delivers efficient operation without compromising durability.
AXW25 Bearing operates within a temperature range of -30° to 110 °C, adapting to various working conditions.
Regular lubrication ensures smooth performance and extends the bearing’s service life.

Application

Key Fields for AXW25 Bearing
AXW25 Bearing is commonly used in industrial gearboxes, where its compact design handles high thrust loads efficiently. The steel cage ensures durability in demanding environments like conveyor systems.
In automotive applications, AXW25 Bearing fits well in clutch assemblies and transmission systems. Its needle roller design provides smooth operation under heavy axial loads, making it reliable for long-term use.
For automation equipment, AXW25 Bearing supports precise movements in robotic arms and linear actuators. The ABEC-1 rating balances performance and cost, ideal for general machinery.
Medical devices like surgical tools benefit from AXW25 Bearing’s consistent performance. The steel construction meets hygiene standards while maintaining load capacity in critical applications.
Household appliances such as washing machines use AXW25 Bearing for its quiet operation. The metric sizing ensures easy replacement in European and Asian models.
