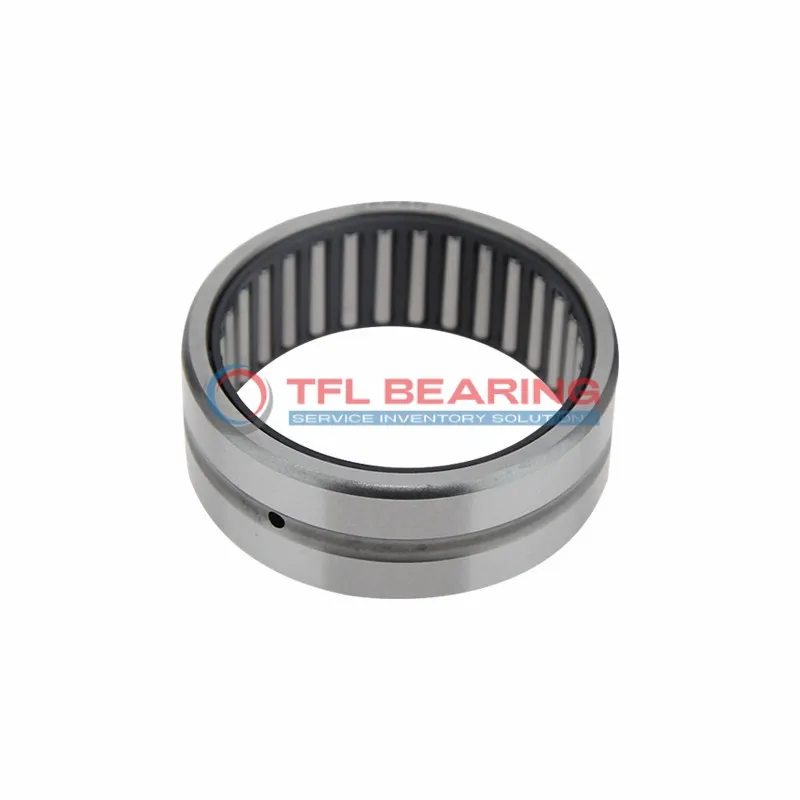

Heavy Duty Needle Roller Bearings (Machined) RNAO25X35X26-ZW-ASR1-XL

Heavy Duty Needle Roller Bearings (Machined) RNAO25X35X26-ZW-ASR1-XL

The RNAO25X35X26-ZW-ASR1-XL is a heavy-duty needle roller bearing with a 25mm bore and 35mm outer diameter, designed for radial loads. Made from sturdy steel, it handles dynamic loads up to 4928 lbf and spins at speeds up to 18100 RPM.
Its double-row design provides extra stability, while the open seal allows for easy lubrication. The press-fit shaft mount ensures a secure installation.
This bearing works well in temperatures from -20°C to 110°C and is interchangeable with INA models. Ideal for high-speed applications like gearboxes or industrial machinery.
Weighing just 76g, it’s lightweight yet durable. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RNAO25X35X26-ZW-ASR1-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 25 mm
  • Bore Dia Tolerance 0.02mm to 0.033mm
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 26 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 4928 lbf
  • Static Radial Load 8325 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 18100 rpm
  • Weight 76 g

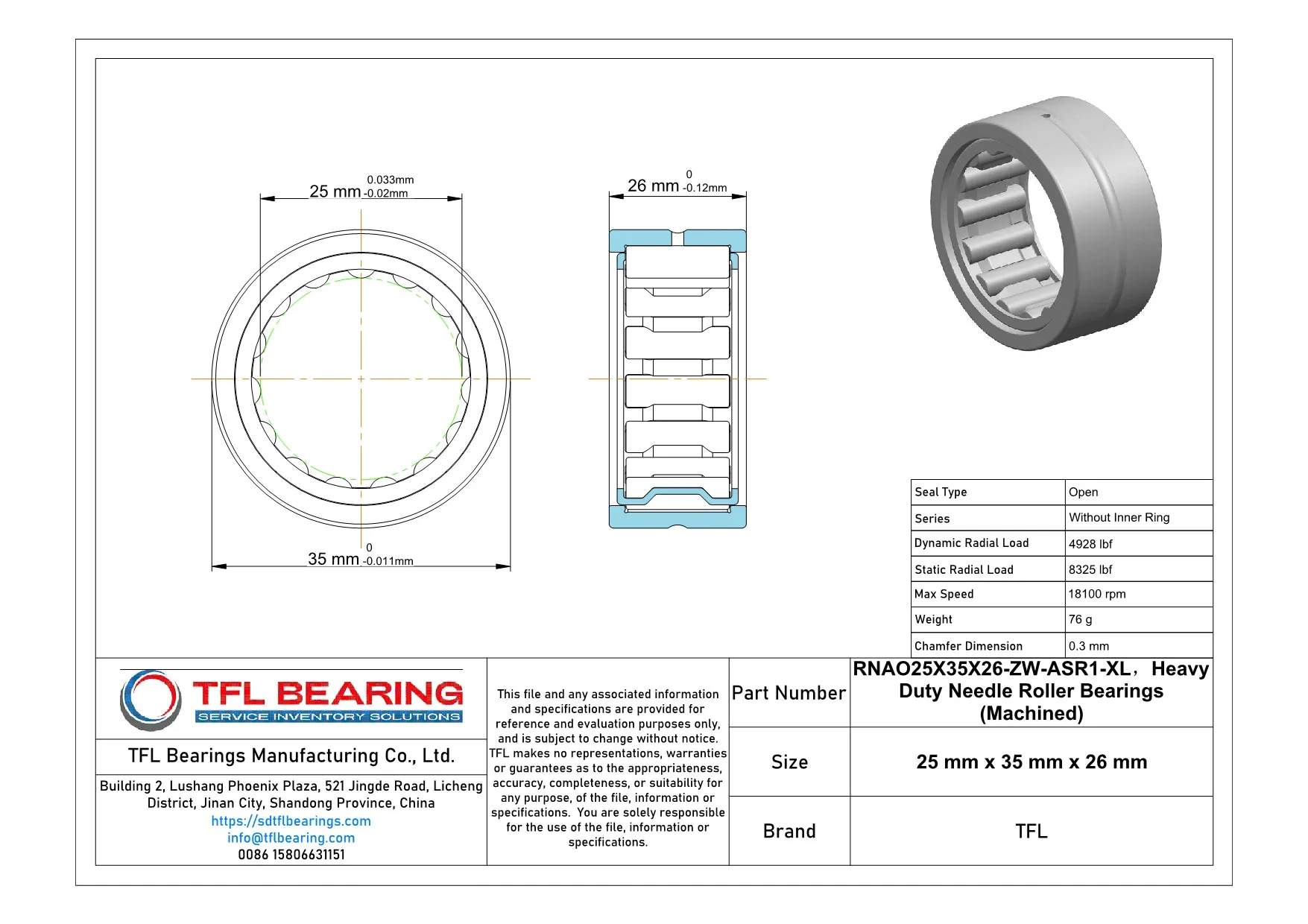

Heavy Duty Needle Roller Bearings (Machined) RNAO25X35X26-ZW-ASR1-XL dimension drawing
Download DWG Download PDF

Features

How Does RNAO25X35X26-ZW-ASR1-XL Bearing Handle Heavy Loads?
RNAO25X35X26-ZW-ASR1-XL Bearing is built with steel rings and rollers, offering robust resistance to heavy radial loads.
Its dynamic radial load capacity reaches 4928 lbf, ensuring dependable performance in tough conditions.
The double-row needle roller design enhances load distribution, reducing stress and extending service life.
With a maximum speed of 18,100 rpm, it combines durability with high-speed efficiency.

Application

Industrial Uses of RNAO25X35X26-ZW-ASR1-XL Bearing
RNAO25X35X26-ZW-ASR1-XL Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its double-row design handles high radial loads efficiently. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.
What Makes RNAO25X35X26-ZW-ASR1-XL Bearing a Preferred Choice?
In automotive applications, RNAO25X35X26-ZW-ASR1-XL Bearing fits well in gearboxes and transmission systems, thanks to its press-fit mounting and high-speed capability. Its steel construction provides durability, making it reliable for continuous operation.
Perfect Fit for Automation: RNAO25X35X26-ZW-ASR1-XL Bearing
RNAO25X35X26-ZW-ASR1-XL Bearing works smoothly in robotic arms and automated assembly lines, where precision and load capacity are key. The needle roller design ensures minimal friction, enhancing performance in repetitive tasks.
Light-Duty vs Heavy-Duty: Best Uses for RNAO25X35X26-ZW-ASR1-XL Bearing
For light-duty applications like small electric motors, RNAO25X35X26-ZW-ASR1-XL Bearing offers reliable support without excessive weight. In heavy-duty scenarios, such as industrial presses, its high static radial load capacity shines.
