TS (Single Row Tapered Roller Bearings) (Imperial) 5565-5535V

TS (Single Row Tapered Roller Bearings) (Imperial) 5565-5535V

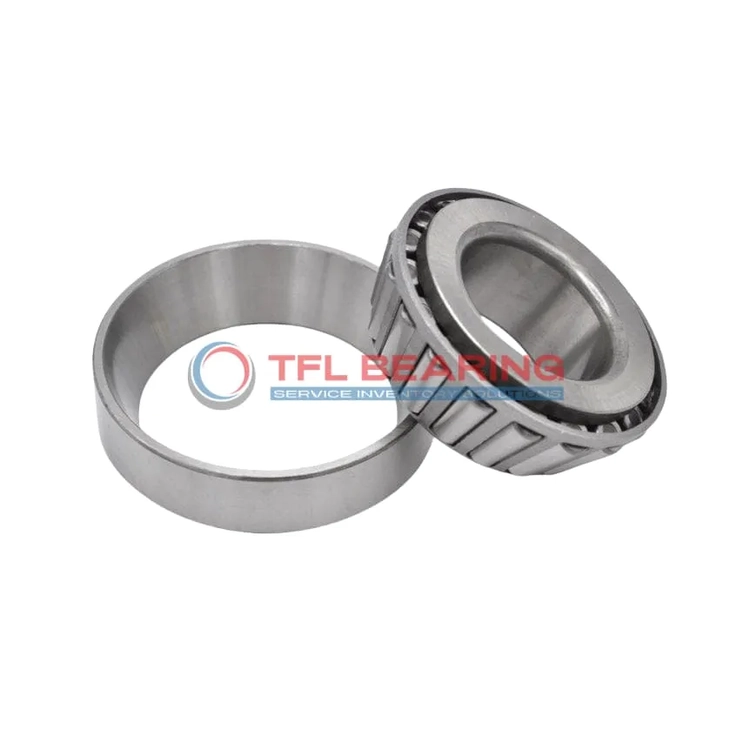

The 5565-5535V is a single-row tapered roller bearing with a 2″ bore and 4.8125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 53200 lbf radially and 8460 lbf thrust, making it versatile for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where robust performance is needed.

Weighing 5.9 lb, it’s built to last while maintaining standard radial clearance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 5565-5535V
  • Brand TFL
  • Interchangeable Timken
  • Size 2" x 4.8125" x 1.7187"
  • Bore Dia 2"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.8125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.723"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7187"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.56"
  • Cone Backface Backing Diameter 2.64"
  • Cup Frontface Backing Diameter 4.60"
  • Cup Backface Backing Diameter 4.17"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 5565
  • Cup Part Number 5535V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 53200 lbf
  • Static Radial Load 73500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 13800 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8460 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.9 lb

Features

Performance Features of 5565-5535V Bearing

5565-5535V Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 53,200 lbf, making it suitable for heavy-duty applications.

The single-row tapered roller design ensures smooth operation and efficient load distribution.
With a static radial load of 73,500 lbf, it provides reliable performance in demanding conditions.

5565-5535V Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
The steel cage maintains roller alignment, reducing wear and extending service life.

This bearing requires lubrication but offers standard radial clearance options for flexibility.
Its ABEC-1 rating ensures consistent performance in various industrial applications.

Application

Industrial Uses of 5565-5535V Bearing
5565-5535V Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in demanding environments.

Where Is 5565-5535V Bearing Used?
You’ll often find 5565-5535V Bearing in agricultural machinery, supporting gearboxes and axles that require reliable performance under heavy loads. Its imperial sizing makes it a good fit for North American equipment standards.

Built for Heavy-Duty Use: 5565-5535V Bearing
5565-5535V Bearing excels in mining applications, where its robust design withstands harsh conditions. The open seal type allows for easy lubrication, extending service life in dusty environments.

Automotive vs Aerospace: Applications of 5565-5535V Bearing
In automotive systems, 5565-5535V Bearing supports wheel hubs and drivetrains, while in aerospace, it’s used in auxiliary gearboxes. The ABEC-1 rating ensures consistent performance across both sectors.

Perfect Fit for Automation: 5565-5535V Bearing
5565-5535V Bearing is ideal for automated conveyor systems, where its tapered rollers provide smooth motion under varying loads. The steel cage adds stability for long-term use in high-speed operations.
