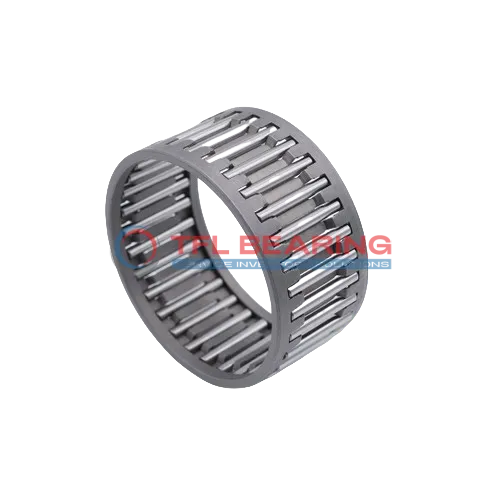

Needle Roller And Cage Assemblies K7X10X8-TV

Needle Roller And Cage Assemblies K7X10X8-TV

The K7X10X8-TV is a compact needle roller and cage assembly with a 7mm bore and 10mm outer diameter, crafted from durable steel needles and a PA66 cage. It handles radial loads up to 641 lbf and spins smoothly at speeds up to 34,500 RPM.
Its single-row design ensures efficient load distribution, while the lightweight construction (just 0.9g) makes it easy to handle. The assembly operates reliably in temperatures from -30°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for tight spaces in applications like small gearboxes or precision machinery where high-speed performance is needed.
Compliant with RoHS standards, it’s a safe and reliable choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K7X10X8-TV
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 7 mm
  • Outer Dia 10 mm
  • Width 8 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material PA66
  • Needle Material Steel
  • Dynamic Radial Load 641 lbf
  • Static Radial Load 596 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 34500 rpm
  • Weight 0.9 g
Needle Roller And Cage Assemblies K7X10X8-TV dimension drawing
Download DWG Download PDF

Features

How Does K7X10X8-TV Bearing Achieve High-Speed Performance?
K7X10X8-TV Bearing features a lightweight PA66 cage, reducing inertia and enabling smooth operation at high speeds.
Its steel needle rollers provide excellent radial load capacity, supporting up to 641 lbf dynamic load.
The compact design of K7X10X8-TV Bearing ensures efficient space utilisation without compromising performance.
With a maximum speed of 34,500 rpm, it is suitable for high-speed applications.
K7X10X8-TV Bearing operates reliably within a temperature range of -30° to 110°C.
Its compliant materials meet RoHS standards, ensuring environmental safety.

Application

Industrial Uses of K7X10X8-TV Bearing
K7X10X8-TV Bearing is commonly used in compact industrial gearboxes, where its needle roller design efficiently handles high radial loads in tight spaces. The PA66 cage ensures smooth operation even at elevated speeds.
Where Is K7X10X8-TV Bearing Used?
In automotive applications, K7X10X8-TV Bearing fits well in small transmission components, providing reliable performance under continuous motion. Its lightweight design also helps reduce overall vehicle weight.
Built for Heavy-Duty Use: K7X10X8-TV Bearing
This bearing excels in conveyor systems, where its steel needles and durable cage withstand constant movement and heavy loads. The metric sizing makes it easy to integrate into various machinery designs.
Medical vs Industrial: Where K7X10X8-TV Bearing Excels
While K7X10X8-TV Bearing is robust enough for industrial pumps, its precision also suits medical devices like compact lab equipment. The temperature range ensures stability in diverse operating conditions.
Perfect Fit for Automation: K7X10X8-TV Bearing
K7X10X8-TV Bearing works seamlessly in robotic arms, offering low friction and high-speed capability. Its small footprint is ideal for space-constrained automation setups.
