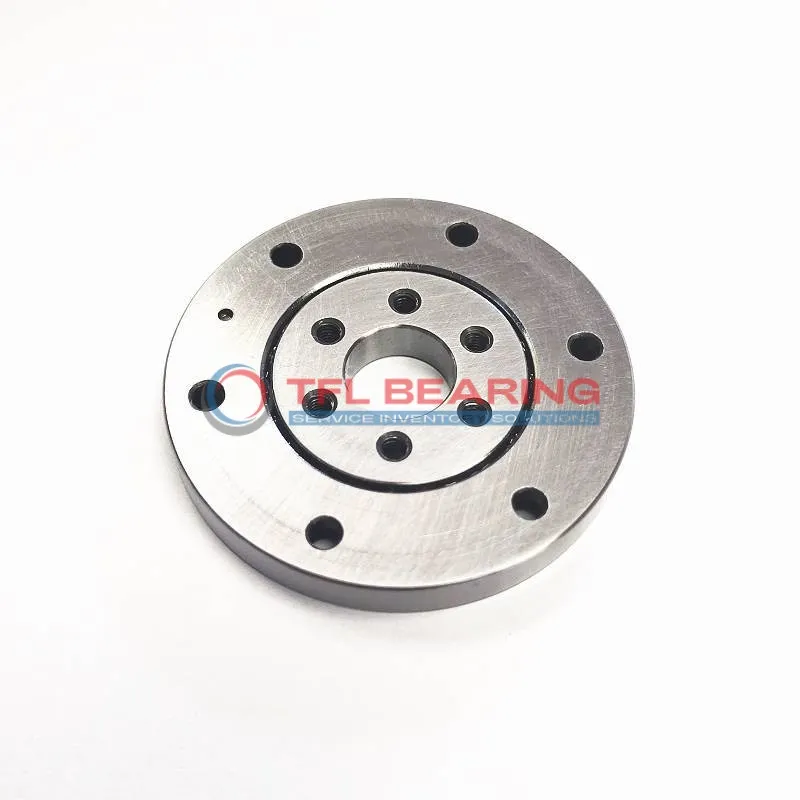

CRBF Crossed Roller Bearings CRBFV11528A

CRBF Crossed Roller Bearings CRBFV11528A

The CRBFV11528A is a crossed roller bearing with a compact design, measuring 115mm in bore diameter and 240mm in outer diameter. Its steel construction ensures durability, while the open seal type allows for easy lubrication.

This bearing handles combined loads with a basic load rating of 84.3 kN, making it suitable for high-precision applications. It operates smoothly in temperatures ranging from 0°C to 110°C, thanks to its robust steel rollers.

Featuring mounting holes for easy installation, it’s designed for press-fit shaft mounting. The ABEC5 rating ensures reliable performance, with options for higher precision (ABEC7/9) available.

Ideal for rotary tables or industrial automation, this bearing is RoHS and REACH compliant. Weighing 6.63kg, it’s a sturdy choice for heavy-duty machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBFV11528A
  • Brand TFL
  • Interchangeable brand IKO
  • Size 115 mm x 240 mm x 28 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 115 mm
  • Outer Dia 240 mm
  • Width 28 mm
  • Inner Ring PCD1 139 mm
  • Outer Ring PCD2 217 mm
  • Holes With Holes
  • Inner Ring Mounting Hole 12- φ 9 through φ 14 counter bore depth 13.5
  • Outer Ring Mounting Hole 12-φ9 through φ14 counter bore depth 13.5
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 84.3 kN
  • Basic Load Rating Co 138 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 6.63 Kg

Features

How Does CRBFV11528A Bearing Handle Combined Loads?

CRBFV11528A Bearing features a crossed roller design, ideal for handling combined loads with precision.
Its steel rollers and rings provide a basic load rating of 84.3 kN, ensuring reliable performance.

The open design allows for easy lubrication, maintaining smooth operation in various conditions.
With mounting holes and press-fit shaft mounting, installation is straightforward and secure.

CRBFV11528A Bearing operates in temperatures from 0 to 230°F, suitable for diverse industrial applications.
Its ABEC5 rating ensures high precision, with options for ABEC7/9 for even tighter tolerances.

Application

Industrial Uses of CRBFV11528A Bearing
CRBFV11528A Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads. The press-fit mounting ensures a secure connection in high-precision applications.

In robotics, CRBFV11528A Bearing supports articulated arms, offering smooth movement and accurate positioning. Its steel construction handles combined loads effectively, making it suitable for automated assembly lines.

For medical imaging devices, CRBFV11528A Bearing’s ABEC5 rating ensures minimal vibration during operation. The open design allows for easy lubrication, maintaining performance in critical healthcare equipment.

CRBFV11528A Bearing also fits well in packaging machinery, where its durability and load capacity keep production lines running efficiently. The metric dimensions make it compatible with various European-made systems.
