Miniature Thrust Ball Bearings F10-18

Miniature Thrust Ball Bearings F10-18

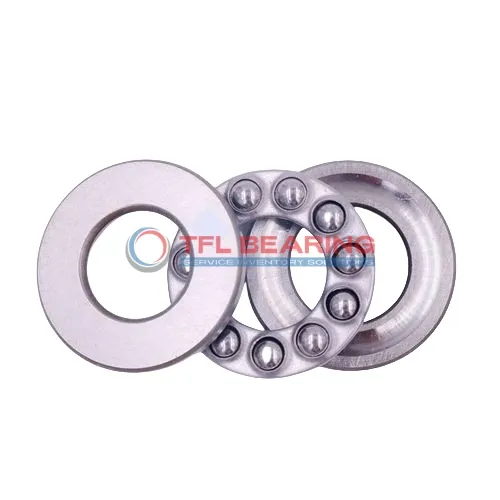

The F10-18 is a compact thrust ball bearing measuring 10mm by 18mm by 5.5mm, crafted from sturdy chrome steel for reliable performance. It supports thrust loads up to 502 lbf and operates smoothly at speeds up to 2500 RPM.

With its open design and brass cage, this bearing is easy to maintain and offers long-lasting durability. The flat raceway washers ensure stable operation under thrust loads.

Designed for use in temperatures ranging from -30°C to 110°C, it requires regular lubrication for optimal performance. Its lightweight build at just 6g makes it ideal for small applications.

This miniature bearing is perfect for precision equipment like small motors or medical devices where space is limited but performance is key. Compliant with RoHS and REACH standards, it’s a safe and dependable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F10-18
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 18 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Outer Dia Shaft Washer 17.8 mm
  • Width 5.5 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 10
  • Ball Dia 2.381 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Washers Type flat raceway
  • For Load Direction Thrust
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Thrust Load 502 lbf
  • Static Thrust Load 612 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2500 rpm
  • Weight 6 g
  • Price（$） 1.85

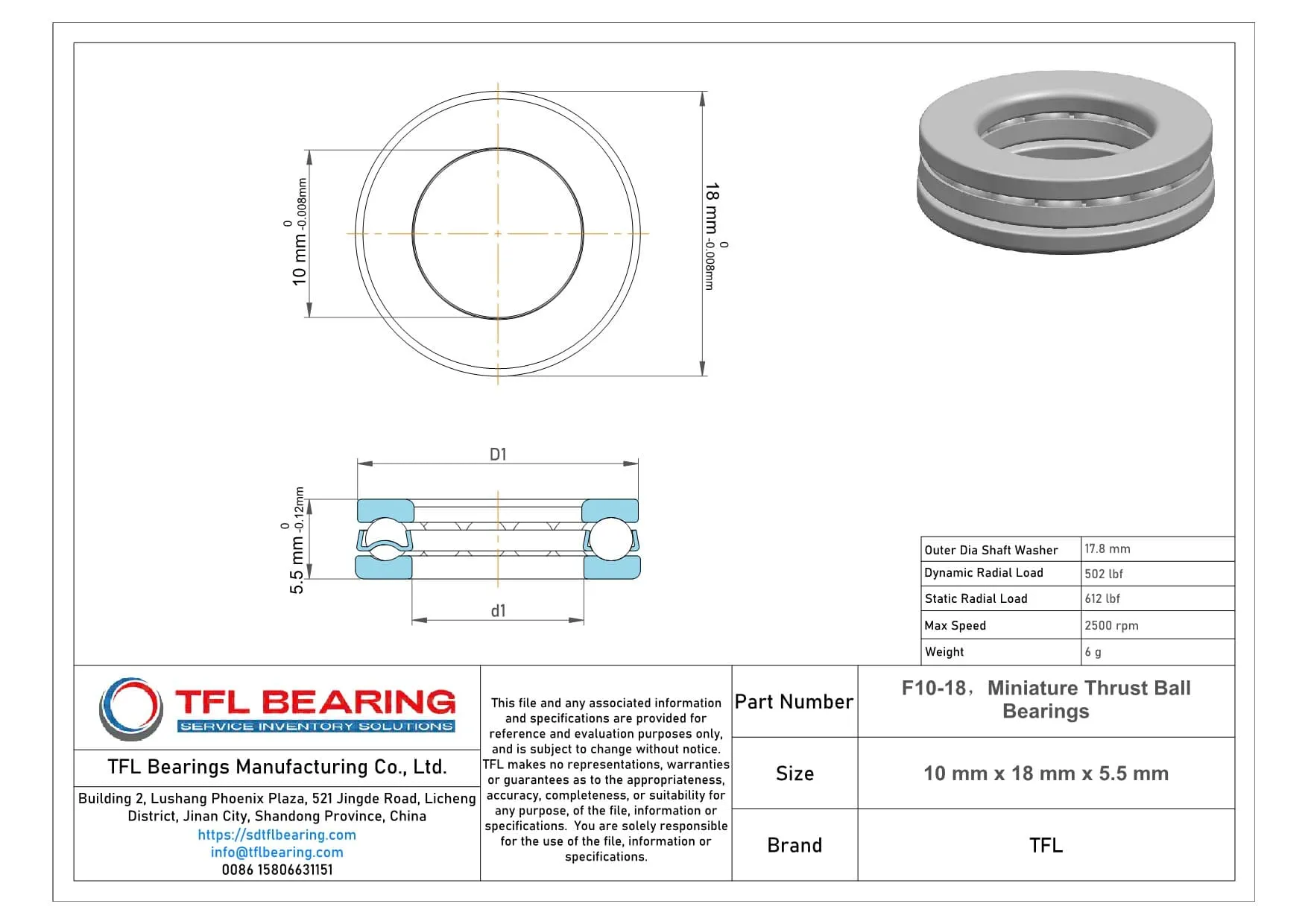

Miniature Thrust Ball Bearings F10-18 dimension drawing
Download DWG Download PDF

Features

Why Choose F10-18 Bearing for Precision Tasks?

F10-18 Bearing features a compact design with dimensions of 10 mm×18 mm×5.5 mm, ideal for precision applications.
The chrome steel rings and balls provide reliable performance under thrust loads up to 502 lbf.

Its brass cage ensures smooth operation by maintaining proper ball alignment.
With a maximum speed of 2,500 rpm, it balances efficiency and durability in small-scale machinery.

The open design simplifies lubrication, making maintenance straightforward.
F10-18 Bearing operates effectively in temperatures ranging from -30° to 110 °C.

Application

Where Is F10-18 Bearing Used?
F10-18 Bearing is commonly used in small industrial equipment, such as precision instruments and miniature gearboxes, where space is limited but reliable thrust load support is needed. Its compact design makes it ideal for tight installations.

In automotive applications, F10-18 Bearing fits well in components like clutch release mechanisms and small electric motors. The brass cage ensures smooth operation even under frequent load changes.

For medical devices, F10-18 Bearing’s chrome steel construction provides durability in tools like dental drills and surgical instruments. Its lightweight design also helps reduce overall device weight.

In consumer electronics, F10-18 Bearing can be found in devices like small fans and printers, where quiet and efficient performance is essential. The open seal design allows for easy lubrication maintenance.

Automation systems benefit from F10-18 Bearing’s precise movement in robotic arms and small actuators. Its flat raceway design ensures consistent performance in repetitive tasks.
