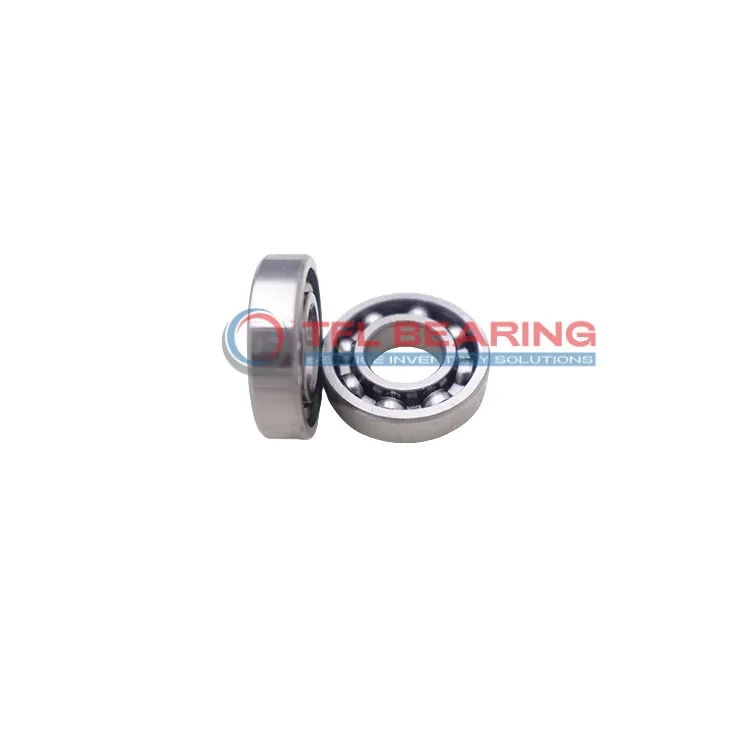

Stainless Steel Deep Groove Ball Bearings D/W R6

Stainless Steel Deep Groove Ball Bearings D/W R6

The D/W R6 is a stainless steel deep groove ball bearing with a 0.375″ bore and 0.875″ outer diameter, built for radial loads. It handles dynamic loads up to 555 lbf and spins smoothly at speeds up to 45,000 RPM.

Its open design allows for easy lubrication, while the all-stainless construction resists corrosion. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for small machinery or instruments where corrosion resistance is key.

Weighing just 0.0086kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R6
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 0.375"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.875"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.21882"
  • Width Tolerance -0.005" to 0"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 555 lbf
  • Static Radial Load 252 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 45000 rpm
  • Weight 0.0086 kg
Stainless Steel Deep Groove Ball Bearings D/W R6 dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R6 Bearing for Precision Tasks?

D/W R6 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its precise dimensions ensure smooth radial load handling, with a dynamic load capacity of 555 lbf.

The open design allows for easy lubrication, enhancing performance in high-speed applications.
With a maximum speed of 45,000 rpm, it delivers reliable operation in various conditions.

D/W R6 Bearing’s tight tolerances make it ideal for tasks requiring accuracy and durability.
Its all-stainless steel construction ensures long service life even in demanding environments.

Application

Industrial Uses of D/W R6 Bearing
D/W R6 Bearing is commonly used in industrial equipment like pumps and small motors, where its stainless steel construction offers good resistance to corrosion. The open design allows for easy lubrication, making it suitable for environments where maintenance access is limited.

What Makes D/W R6 Bearing a Preferred Choice?
In automotive applications, D/W R6 Bearing fits well in components like alternators and small gearboxes, thanks to its inch sizing and radial load capacity. Its durability ensures reliable performance even in high-speed scenarios.

Perfect Fit for Automation: D/W R6 Bearing
For automation systems, D/W R6 Bearing works efficiently in robotic arms and conveyor belts, where smooth rotation is essential. The stainless steel cage adds to its longevity in continuous operation.

Medical vs Industrial: Where D/W R6 Bearing Excels
In medical devices, D/W R6 Bearing is often found in lab equipment due to its precision and clean operation. Meanwhile, industrial settings benefit from its ability to handle moderate radial loads without frequent replacements.
