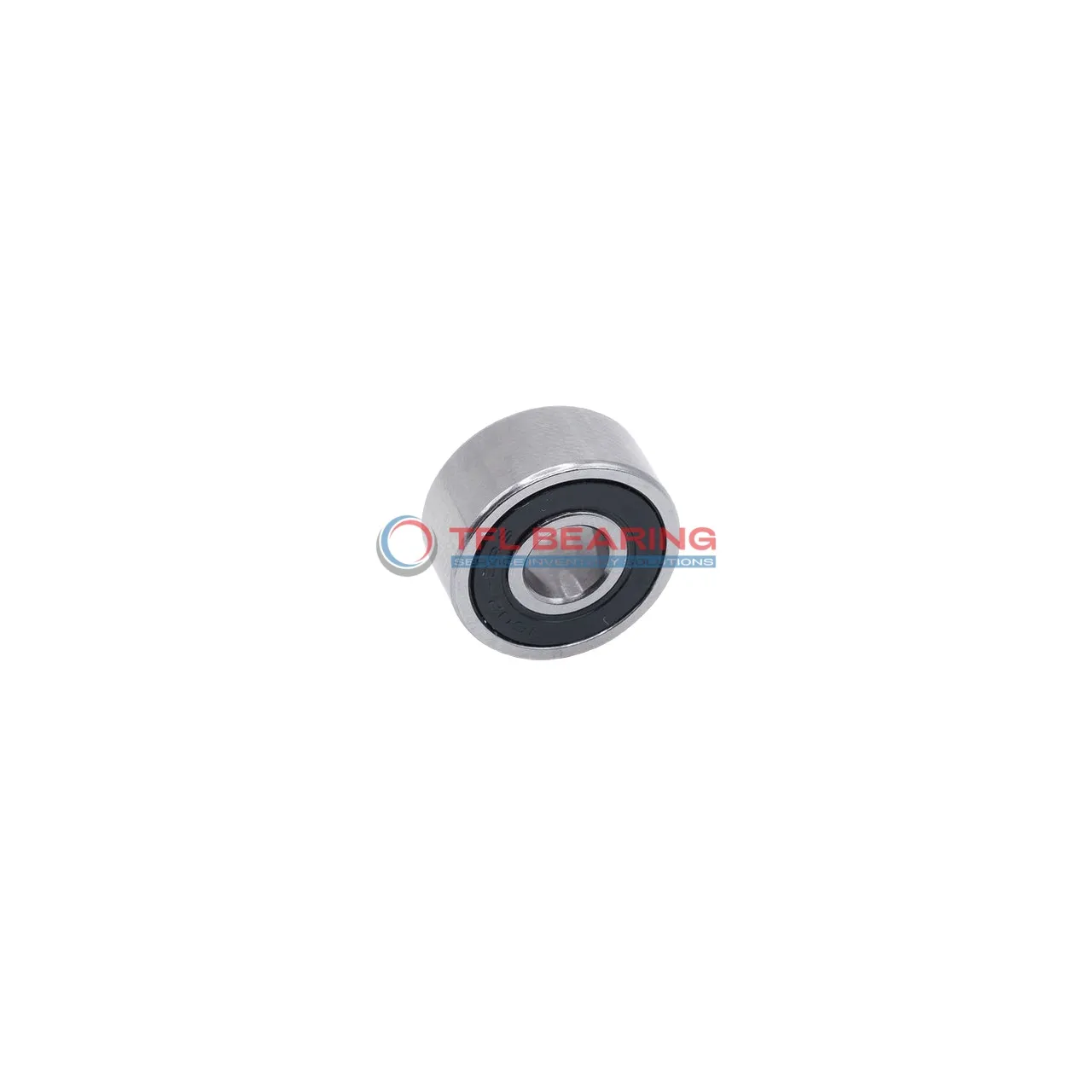

Stainless Steel Deep Groove Ball Bearings D/W R12-2RS1

Stainless Steel Deep Groove Ball Bearings D/W R12-2RS1

The D/W R12-2RS1 is a compact stainless steel deep groove ball bearing, measuring 0.75″ in bore diameter and 1.625″ in outer diameter. Its sealed design keeps grease in and contaminants out, making it low-maintenance.

With a dynamic radial load capacity of 1812 lbf, it handles moderate loads smoothly. It spins up to 11,000 RPM, suitable for fast-moving applications.

The all-stainless steel construction resists corrosion, ideal for damp or harsh environments. Its sealed design ensures long-lasting performance with minimal upkeep.

Perfect for small machinery, food processing equipment, or marine applications where rust resistance is key. Compliant with RoHS and REACH standards, it’s a reliable choice for eco-conscious users. Weighing just 0.06kg, it’s lightweight yet durable.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R12-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 0.75"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 1.625"
  • Outer Dia Tolerance -0.00078" to -0.00031"
  • Width 0.43752"
  • Width Tolerance -0.005" to 0"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 1124 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 0.06 kg
Stainless Steel Deep Groove Ball Bearings D/W R12-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R12-2RS1 Bearing for Precision Tasks?

D/W R12-2RS1 Bearing is crafted entirely from stainless steel, offering excellent corrosion resistance and durability.
Its sealed design keeps contaminants out, ensuring smooth operation in various environments.
The bearing handles dynamic radial loads up to 1812 lbf, making it suitable for demanding applications.
With a maximum speed of 11,000 rpm, it delivers reliable performance for precision tasks.

Application

Industrial Uses of D/W R12-2RS1 Bearing
D/W R12-2RS1 Bearing is commonly used in conveyor systems and small machinery, where its sealed design keeps contaminants out and extends service life. The stainless steel construction makes it suitable for environments with moisture or mild chemicals.

Where Is D/W R12-2RS1 Bearing Used?
In food processing equipment, D/W R12-2RS1 Bearing’s corrosion-resistant materials ensure hygiene and reliability. Its compact inch size fits neatly into tight spaces, ideal for mixers and packaging machines.

Built for Heavy-Duty Use: D/W R12-2RS1 Bearing
D/W R12-2RS1 Bearing handles radial loads effortlessly in agricultural machinery like seeders and harvesters. The grease lubrication ensures smooth operation even in dusty or humid conditions.

Medical vs Industrial: Where D/W R12-2RS1 Bearing Excels
D/W R12-2RS1 Bearing works well in dental drills and lab equipment, thanks to its precision and quiet performance. In industrial settings, it’s equally at home in pumps and small motors.

Practical Applications of D/W R12-2RS1 Bearing
For household appliances like washing machines, D/W R12-2RS1 Bearing offers durability and low maintenance. The sealed design prevents grease leakage, keeping things clean and efficient.
